Freitalite

C14H10
IMA status
  • Approved
IMA symbol
Fta
Discovered
1987
Also known as
  • Freitaliet

Where it forms, where it's found

Geological setting

Freitalite is a product of pyrolysis of coal at low oxygen fugacity and was formed by sublimation from a gas phase.

Type locality
Carola Mine
  1. Döhlen
  2. Freital
  3. Sächsische Schweiz-Osterzgebirge
  4. Saxony
  5. Germany

51.0033°, 13.6394°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789101/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
intense violet or whitish-violet to white
Streak
white
Tenacity
flexible
Density
1.240 g/cm³

Optical

Optical type
Biaxial · 2V measured = 87° · 2V calc = 89°
Refractive index
1.56 – 2.19
Surface relief
Very high
Principal indices
nα 1.56 · nβ 1.80 · nγ 2.19
Pleochroism
Non-pleochroic
UV response
intense bluish-white fluorescence in short- and long-wave ultraviolet light (254 and 366 nm).
Notes

Optical data from synthetic material. Natural sample only a refractive index α=1.57 (white light) could be measured.

Michel-Lévy diagramhighlighted lineδ = 0.6300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]6300 nmhigh order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation6300 nm
Orderhigh order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 8.5572(9) Å · b = 6.0220(5) Å · c = 11.173(1) Å
Cell angles
β = 124.174(1) °
Ratio a:b:c
1 : 0.704 : 1.306
Z
2
Type-locality form

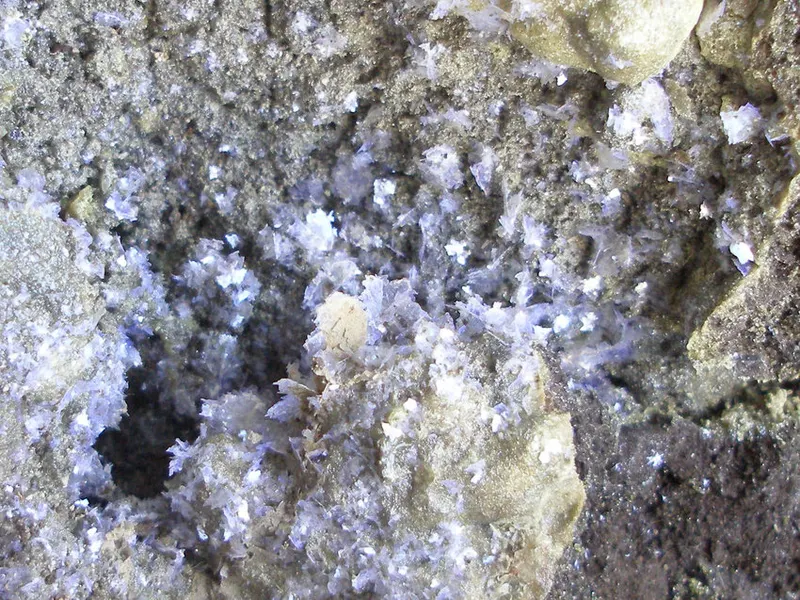

The mineral forms thin blades or flakes of irregular shape up to a few millimetres in size and shows an intense violet or whitish-violet to white colour.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
6CCarbonCarbon1412.011168.154
94.34%
1HHydrogenHydrogen101.00810.080
5.66%
Total178.234100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Freitaliet

In other languages

German
Freitalit · IMA 2019-116

Classification

Strunz
10th ed.

10.BA

  • 10Organic CompoundsClass
  • 10.BHydrocarbonsDivision
  • 10.BAHydrocarbonsGroup
  • 10.BAFreitaliteSpecies

Literature, links & citation

Citations
  1. 2020Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2020) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) - Newsletter 54. European Journal of Mineralogy, 32 (2) 275-283 doi:10.5194/ejm-32-275-2020 DOI: 10.5194/ejm-32-275-2020
  2. 2021Witzke, Thomas, Schreyer, Martin, Brandes, Benjamin, Csuk, René, Pöllmann, Herbert (2021) Freitalite, C14H10, a new aromatic hydrocarbon mineral from Freital, Saxony, Germany. European Journal of Mineralogy, 33 (1) 1-8 doi:10.5194/ejm-33-1-2021 DOI: 10.5194/ejm-33-1-2021
  3. 2022(2022) Freitalite. Handbook of Mineralogy. Mineralogical Society of America
