Furongite

Al4(UO2)4(PO4)6(OH)2(H2O)19.5
IMA status
  • Approved
IMA symbol
Frg
Discovered
1976
Also known as
  • Furongiet

Where it forms, where it's found

Geological setting

Oxidation zone of a uranium deposit.

Type locality
Unnamed U deposit (1)
  1. Hunan
  2. China
2recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Colour
Yellow
Cleavage
Perfect

Very perfect on (111) and (111)

Density
2.9 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 65 – 80° · 2V calc = 64°
Refractive index
1.543 – 1.575
Surface relief
Moderate
Principal indices
nα 1.543 – 1.549 · nβ 1.564 – 1.567 · nγ 1.57 – 1.575
Dispersion
none
Extinction
Z ∧ <mi>{_111}</mi> ≃ 38°.
UV response
Strong somewhat yellowish green fluorescence.
Michel-Lévy diagramhighlighted lineδ = 0.0265
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]265 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation265 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 12.1685(8) Å · b = 14.1579(6) Å · c = 17.7884(6) Å
Cell angles
α = 79.822(3) ° · β = 77.637(4) ° · γ = 67.293(2) °
Ratio a:b:c
1 : 1.163 : 1.462
Unit cell volume
2746.2 ų
Z
2
Type-locality form

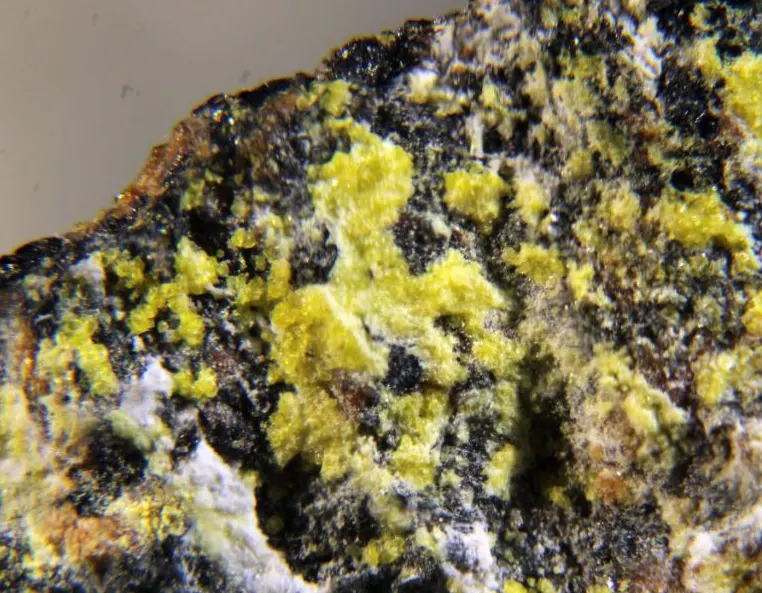

Tabular crystals and as dense cryptocrystalline aggregates.

Comment

also reported as monoclinic; the above data is from Dal Bo et al. (2017)

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium4238.029952.116
44.42%
8OOxygenOxygen53.515.999855.947
39.94%
15PPhosphorusPhosphorus630.974185.844
8.67%
13AlAluminiumAluminium426.982107.928
5.04%
1HHydrogenHydrogen411.00841.328
1.93%
Total2143.162100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Furongiet

In other languages

German
Furongit
Italian
Furongite

Classification

Strunz
10th ed.

8.EB.50

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.EBUO2:RO4 = 1:1Group
  • 8.EB.50FurongiteSpecies
Dana
8th ed.

42.10.05.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.10A3(XO4)2Zq·xH2OType
  • 42.10.05— unnamed intermediate level —Group
  • 42.10.05.01FurongiteSpecies
CIM

19.11.27

  • 19PhosphatesClass
  • 19.11Phosphates of UGroup
  • 19.11.27FurongiteSpecies

Literature, links & citation

Citations
  1. 1976Hunan 230 Laboratory, Hunan 305 Geological Team, Wuhan Geological Institution X-ray Laboratory (1976): Furongite, a new uranium mineral found in China. Acta Geologica Sinica: 50(2): 203-204. (in Chinese)
  2. 1978Fleischer, Michael, Cabri, Louis J., Chao, George Y., Pabst, Adolf (1978) New Mineral Names. American Mineralogist, 63 (3-4) 424-427
  3. 1978Hunan 230 Institute, Hunan 305 Geological Team and X-Ray Laboratory of Wuhan Geologic College (1978): The mineralogical investigation of furongite. Science in China, Series A (Mathematics), 22(2), 199-206.
  4. 1981Shen, J., Peng, Z. (1981) The crystal structure of furongite. Acta Crystallographica Section A Foundations of Crystallography, 37. 186 doi:10.1107/s0108767381093975DOI: 10.1107/s0108767381093975
  5. 1985Deliens, M., & Piret, P. (1985). Les phosphates d'uranyle et d'aluminium de Kobokobo VIII. La furongite. Ann. Soc. Géol. Belg, 108, 365-368.
