Gageite

Mn2+21Si8O27(OH)20
IMA status
  • Approved
  • Grandfathered
IMA symbol
Gge
Discovered
1910
Also known as
  • Dosulite
  • Gageiet

Where it forms, where it's found

Geological setting

In veins and solution cavities traversing massive ore in a metamorphosed stratiform Precambrian Zn-Fe-Mn orebody.

Type locality
Franklin Mine
  1. Franklin
  2. Sussex County
  3. New Jersey
  4. USA

41.1158°, -74.5875°

15recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Usually brownish purple · brown · pinkish brown · light pink · light brown · also colorless in small crystals
Tenacity
brittle
Cleavage
Distinct/Good

On (110)

Density
3.46 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.723 – 1.736
Surface relief
High
Principal indices
nα 1.723 · nβ 1.734 · nγ 1.736
Birefringence
0.013
Dispersion
r > v
UV response
Not fluorescent in UV
Michel-Lévy diagramhighlighted lineδ = 0.0130
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]130 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation130 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 19.42 Å · b = 19.42 Å · c = 9.84 Å
Cell angles
β = 89.5 °
Ratio a:b:c
1 : 1.000 : 0.507
Z
1
Morphology

Crystal system either monoclinic or triclinic. Triclinic values: Space Group P1¯; a: 14.17, b: 14.07, c: 9.84; α: 76.5°, β: 76.6°, γ: 86.9°. Crystals are small, lath-like or saddle-like, grouped radially, in bundles, or as mats of fibers.

Type-locality form

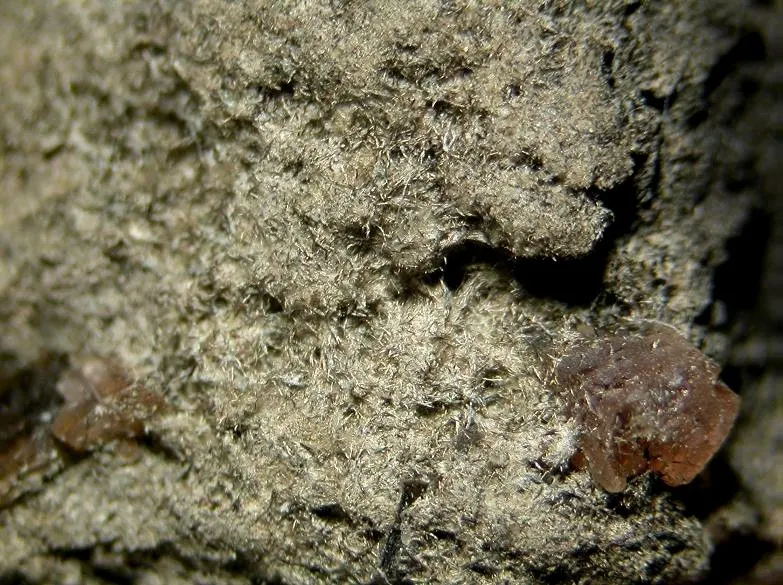

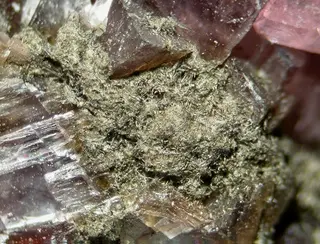

Well crystallized, delicate, acicular and hairlike, often radiated and grouped in bundles extending out from the walls of small cavities. It also occurs as a mat of interlocking crystals, or fan-shaped groups.

Comment

Monoclinic, pseudotetragonal, or triclinic. Point Group: 2/m or _1:; Space Group: P2/n or P_1:

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese2154.9381153.698
53.65%
8OOxygenOxygen4715.999751.953
34.96%
14SiSiliconSilicon828.085224.680
10.45%
1HHydrogenHydrogen201.00820.160
0.94%
Total2150.491100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Dosulite
  • Gageiet

In other languages

German
Gageit
Italian
Gageite · Gageite-2M
Chinese
羟硅锰镁石

Classification

Strunz
10th ed.

9.DH.35

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DHInosilicates with 4-periodic single chains, Si4O12Group
  • 9.DH.35GageiteSpecies
CIM

14.7.22

  • 14Silicates not Containing AluminumClass
  • 14.7Silicates of Ba, Sr and ZnGroup
  • 14.7.22GageiteSpecies

Group, growth & confusion

Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1910Phillips, A.H. (1910) Gageite, a new mineral from Franklin, New Jersey. American Journal of Science: 30: 283-284.
  2. 1935Palache, Charles (1935) The minerals of Franklin and Sterling Hill, Sussex County, New Jersey. Professional Paper 180. US Geological Survey 135 pp. doi:10.3133/pp180 DOI: 10.3133/pp180
  3. 1946Anonymous (1946) Obituary, Trenton Evening Times, March 1, 1946, p. 22.
  4. 1968Moore, Paul B. (1968) Relations of the manganese-calcium silicates, gageite and harstigite. American Mineralogist, 53 (1-2) 309-315
  5. 1969Moore, Paul B. (1969) A novel octahedral framework structure: Gageite. American Mineralogist, 54 (7-8) 1005-1017
