Gaudefroyite

Ca4Mn3+3(BO3)3(CO3)O3
IMA status
  • Approved
IMA symbol
Gfy
Discovered
1964
IMA approved
1964
Also known as
  • Gaudefroyiet
  • IMA1964-006

Where it forms, where it's found

Geological setting

Hydrothermal mineral in manganese deposits

Type locality
Tachgagalt Mine
  1. Tansifte Caïdat
  2. Agdz Cercle
  3. Zagora Province
  4. Drâa-Tafilalet Region
  5. Morocco

30.7833°, -6.8500°

7recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Black
Streak
Brown
Tenacity
brittle
Cleavage
Distinct/Good

Prismatic {11.0)

Fracture
Conchoidal
Density
3.35 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.805 – 2.02
Surface relief
Very high
Principal indices
nω 1.805 – 1.81 · nε 2.015 – 2.02
Pleochroism
Strong

O = pale yellowish brown; E = red-orange

Optical colour
Gray
Anisotropism
Strong, in pale gray
Internal reflections
Strong yellow-orange to reddish
Tropism
Anisotropic
Reflectance R%
(11.2,15.4) 400, (10.4,14.2) 440, (9.9,13.4) 480, (9.6,12.8) 520, (9.5,12.3) 560, (9.4,12.1) 600, (9.3,11.9) 640, (9.3,11.7) 680, (9.3,11.7) 700
Reflected-light panel
9.8 %anisotropic · dual curve
Specimen sRGB 116, 80, 44
White reference100 % reflector under same lamp
R₁ R₂
Mode
Anisotropism
Strong, in pale gray
Reflected colour
Gray
Internal reflections
Strong yellow-orange to reddish

Crystallography

Crystal system
Hexagonal
Cell parameters
a = 10.589(1) Å · c = 5.891(1) Å
Z
2
Morphology

Hexagonal prisms with pyramidal terminations. (10_10), (11_20), (20_21), (11_21), (10_11).

Twinning

None observed in type material

Type-locality form

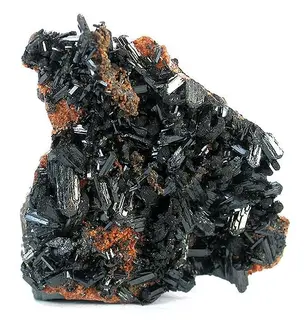

Acicular hexagonal prisms up to 5 cm long, with pyramidal terminations.

Comment

Point Group: 6 or 6m.; Space Group: P63 or disordered P63/m

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
39.37%
25MnManganeseManganese354.938164.814
27.04%
20CaCalciumCalcium440.078160.312
26.30%
5BBoronBoron310.81032.430
5.32%
6CCarbonCarbon112.01112.011
1.97%
Total609.552100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Gaudefroyiet
  • IMA1964-006

In other languages

French
Gaudefroyite
German
Gaudefroyit · IMA 1964-006
Italian
Gaudefroyite

Classification

Strunz
10th ed.

6.AB.60

  • 6BoratesClass
  • 6.AMonoboratesDivision
  • 6.ABBO3, with additional anions; 1(D) + OH, etc.Group
  • 6.AB.60GaudefroyiteSpecies
Dana
8th ed.

27.01.02.01

  • 27Compound BoratesClass
  • 27.01MiscellaneousType
  • 27.01.02— unnamed intermediate level —Group
  • 27.01.02.01GaudefroyiteSpecies
CIM

10.4.6

  • 10Borates with other anionsClass
  • 10.4Borates with carbonateGroup
  • 10.4.6GaudefroyiteSpecies

Literature, links & citation

Citations
  1. Granger, M.M. and Protas, J. (1965): Détermination de la structure de la gaudefroyite. C.R. Acad. Sci. 260, 4553-4555.
  2. 1964Jouravsky, Georges, Permingeat, François (1964) La gaudefroyite, une nouvelle espèce minérale. Bulletin de Minéralogie, 87 (2) 216-229 doi:10.3406/bulmi.1964.5729 DOI: 10.3406/bulmi.1964.5729
  3. 1964Couffon, M., Protas, J. (1964) Etude et description de la structure de la gaudefroyite. Bulletin de la Société Française de Minéralogie et de Cristallographie: 87(4).
  4. 1965Fleischer, Michael (1965) New Mineral Names. American Mineralogist, 50 (5-6) 805-813
  5. 1975Yakubovich, O.V., Simonov, M.A., Belov, N.V. (1975) Accurate definition of Gaudefroyite Ca4Mn33+O3(BO3)3(CO3) crystal structure. Kristallografiya: 20(1): 152-155.
