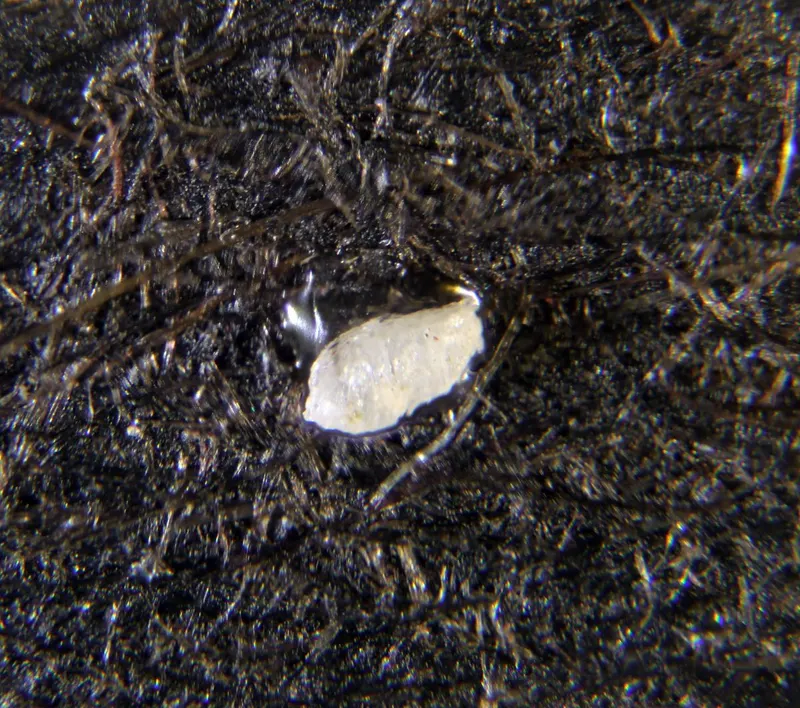

Gerstmannite

Mn2+MgZn(SiO4)(OH)2
IMA status
  • Approved
IMA symbol
Gmn
Discovered
1975
IMA approved
1975
Also known as
  • Gerstmanniet
  • IMA1975-030

Where it forms, where it's found

Type locality
Sterling Mine
  1. Sterling Hill
  2. Ogdensburg
  3. Sussex County
  4. New Jersey
  5. USA

41.0836°, -74.6047°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent · Opaque
Colour
White to very pale pink.
Streak
white
Cleavage
Distinct/Good

good on (010)

Density
3.68 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 50 – 60° · 2V calc = 36°
Refractive index
1.655 – 1.678
Surface relief
High
Principal indices
nα 1.655 · nβ 1.657 · nγ 1.678
Dispersion
weak
Michel-Lévy diagramhighlighted lineδ = 0.0230
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]230 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation230 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 8.185(7) Å · b = 18.65(2) Å · c = 6.256(6) Å
Ratio a:b:c
1 : 2.279 : 0.764
Z
8
Comment

Space Group: Bbcm

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen615.99995.994
35.46%
30ZnZincZinc165.38065.380
24.15%
25MnManganeseManganese154.93854.938
20.29%
14SiSiliconSilicon128.08528.085
10.37%
12MgMagnesiumMagnesium124.30524.305
8.98%
1HHydrogenHydrogen21.0082.016
0.75%
Total270.718100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Na

Synonyms

  • Gerstmanniet
  • IMA1975-030

In other languages

German
Gerstmannit · IMA 1975-030
Italian
Gerstmannite
Chinese
硅锌镁锰石

Classification

Strunz
10th ed.

9.AE.25

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AENesosilicates with additional anions (O,OH,F,H2O); cations in tetrahedral [4] coordinationGroup
  • 9.AE.25GerstmanniteSpecies
Dana
8th ed.

52.02.01.04

  • 52Nesosilicates Insular Sio4 Groups and O, Oh, F, H2oClass
  • 52.02Insular SiO4 Groups and O, OH, F, and H2O with cations in [4] and >[4] coordinationType
  • 52.02.01Euclase groupGroup
  • 52.02.01.04GerstmanniteSpecies
CIM

14.7.21

  • 14Silicates not Containing AluminumClass
  • 14.7Silicates of Ba, Sr and ZnGroup
  • 14.7.21GerstmanniteSpecies

Literature, links & citation

Citations
  1. 1977Moore, Paul B., Araki, Takaharu (1977) Gerstmannite, a new zinc silicate mineral and a novel cubic close-packed oxide structure. American Mineralogist, 62 (1-2) 51-59
  2. 1978Simonov, M.A., Egorov-Tismenko, Y.K., Belov, N.V. (1978) Crystal structures of clinohedrite Ca[ZnSiO4]·H2O and herstmannite (Mn,Mg)Mg(OH)2[ZnSiO4]. Soviet Physics - Doklady 23, 113-114. [probably English translation of: SSimonov, M.A., Egorov-Tismenko, Y.K., Belov, N.V. (1978) The crystal structures of clinohedrite Ca[ZnSiO4]·H2O and herstmannite (Mn, Mg)Mg(OH)2[ZnSiO4]. Doklady Akademii Nauk SSSR 238, 1348-1350.]
  3. 2001(2001) Gerstmannite. Handbook of Mineralogy. Mineralogical Society of America
