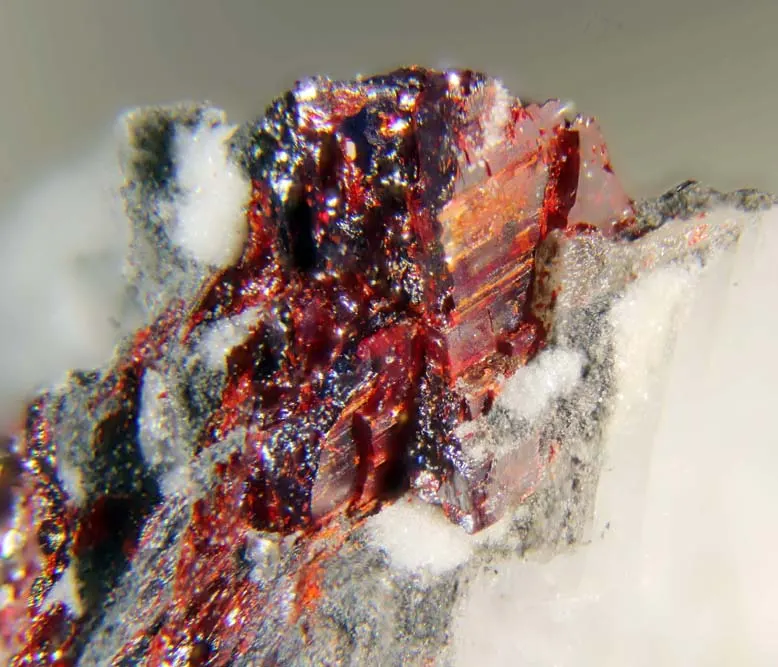

Gillulyite

Tl2As7.5Sb0.3S13
IMA status
  • Approved
IMA symbol
Gly
Discovered
1990
IMA approved
1991
Also known as
  • Gillulyiet
  • IMA1989-029

Where it forms, where it's found

Geological setting

A sediment-hosted, disseminated gold deposit.

In barite veins and in calcite veins.

Type locality
Lulu Cut
  1. South Mercur Pit
  2. Mercur Mining District
  3. Tooele County
  4. Utah
  5. USA
1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102 – 2.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Deep red

Tarnishes rapidly to a near-metallic luster.

Streak
Brick red
Cleavage
Perfect

One perfect cleavage and possbly two poor cleavages (based on pitting during polishing).

Density
4.02 g/cm³

Optical

Optical type
Biaxial
Refractive index
2.81
Surface relief
Very high
Principal indices
nβ 2.81
Dispersion
relatively strong
Tropism
Anisotropic
Reflectance R%
(29.8,32.0,15.0,18.6) 400, (29.3,31.8,14.6,18.1) 420, (28.6,31.55,13.9,17.7) 440, (27.8,31.0,13.2,17.05) 460, (27.3,30.6,12.7,16.65) 470, (27.0,30.4,12.4,16.25) 480, (26.1,29.6,11.6,15.5) 500, (25.1,28.9,10.9,14.8) 520, (24.3,28.2,10.3,14.1) 540, (24.1,28.0,10.1,13.9) 546, (23.6,27.5,9.76,13.5) 560, (23.1,26.9,9.36,12.9) 580, (22.8,26.6,9.19,12.6) 589, (22.6,26.25,9.03,12.4) 600, (22.2,25.8,8.77,12.0) 620, (21.9,25.4,8.59,11.8) 640, (21.7,25.3,8.47,11.7) 650, (21.6,25.2,8.45,11.6) 660, (21.35,24.9,8.27,11.4) 680, (21.2,24.8,8.14,11.2) 700
Notes

Reflectivity from Wilson et al. (1993).

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 9.58 Å · b = 5.67 Å · c = 21.5 Å
Cell angles
β = 100.07 °
Ratio a:b:c
1 : 0.592 : 2.244
Morphology

Simple monoclinic crystals exhibit forms (110), (010), and {01l}.

Twinning

None observed

Type-locality form

Cleavable masses up to 2 cm in diameter and, rarely, as crystals to 1 mm in length.

Comment

Space group P2/n (Foit et al., 1995). Re-study revealed OD structure (Makovicky & Balić-Žunić, 1999).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
33AsArsenicArsenic7.574.922561.915
39.46%
16SSulfurSulfur1332.060416.780
29.27%
81TlThalliumThallium2204.380408.760
28.71%
51SbAntimonyAntimony0.3121.76036.528
2.56%
Total1423.983100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Gillulyiet
  • IMA1989-029

In other languages

German
Gillulyit · IMA 1989-029
Italian
Gillulyite

Classification

Strunz
10th ed.

2.JC.10

  • 2Sulfides and SulfosaltsClass
  • 2.JSulfosalts of PbS archetypeDivision
  • 2.JCGalena derivatives, with TlGroup
  • 2.JC.10GillulyiteSpecies
Dana
8th ed.

03.08.09.01

  • 03SulfosaltsClass
  • 03.081 < ø < 2Type
  • 03.08.09— unnamed intermediate level —Group
  • 03.08.09.01GillulyiteSpecies
CIM

5.5.12

  • 5Sulphosalts - Sulpharsenites and Sulphobismuthites (those containing Sn, Ge,or V are in Section 6)Class
  • 5.5Sulpharsenites etc. of TlGroup
  • 5.5.12GillulyiteSpecies

Literature, links & citation

Citations
  1. 1991Wilson, James R., Robinson, Paul D., Wilson, Paula N., Stanger, Larry W., Salmon, Gary L. (1991) Gillulyite, Tl2(As,Sb)8S13, a new thallium arsenic sulfosalt from the Mercur gold deposit, Utah. American Mineralogist, 76 (3-4) 653-656
  2. 1993Wilson, James R., Gupta, Pradip K. Sen, Robinson, Paul D., Criddle, Alan J. (1993) Fangite, Tl3AsS4 a new thallium arsenic sulfosalt from the Mercur Au deposit, Utah, and revised optical data for gillulyite. American Mineralogist, 78 (9-10) 1096-1103
  3. 1995Foit, Franklin F., Robinson, Paul D., Wilson, James R. (1995) The crystal structure of gillulyite, Tl2(As,Sb)8S13, from the Mercur gold deposit, Tooele County, Utah, U.S.A. American Mineralogist, 80 (3) 394-399 doi:10.2138/am-1995-3-421 DOI: 10.2138/am-1995-3-421
  4. 1999Makovicky, Emil, Balic-Zunic, Tonci (1999) Gillulyite Tl2(As,Sb)8S13; reinterpretation of the crystal structure and order-disorder phenomena. American Mineralogist, 84 (3) 400-406 doi:10.2138/am-1999-0325 DOI: 10.2138/am-1999-0325
  5. 2005(2005) Gillulyite. Handbook of Mineralogy. Mineralogical Society of America
