Glucine

CaBe4(PO4)2(OH)4 · 0.5H2O
IMA status
  • Approved
IMA symbol
Glu
Discovered
1963

Where it forms, where it's found

Geological setting

mica-fluorite greisen in illite rocks

Type locality
Boevskoe Be deposit (Boevka
  1. Severnoye)
  2. Kaslinsky District
  3. Chelyabinsk Oblast
  4. Russia

56.2456°, 61.3739°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
White · light yellow
Streak
White
Fracture
Fibrous · Micaceous
Density
2.23 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.547 – 1.571
Surface relief
Moderate
Principal indices
nα 1.547 · nβ 1.555 · nγ 1.571
Birefringence
0.004
Pleochroism
Non-pleochroic
Dispersion
none
Michel-Lévy diagramhighlighted lineδ = 0.0040
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]40 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation40 nm
Order1st order
XPL colour

Crystallography

Morphology

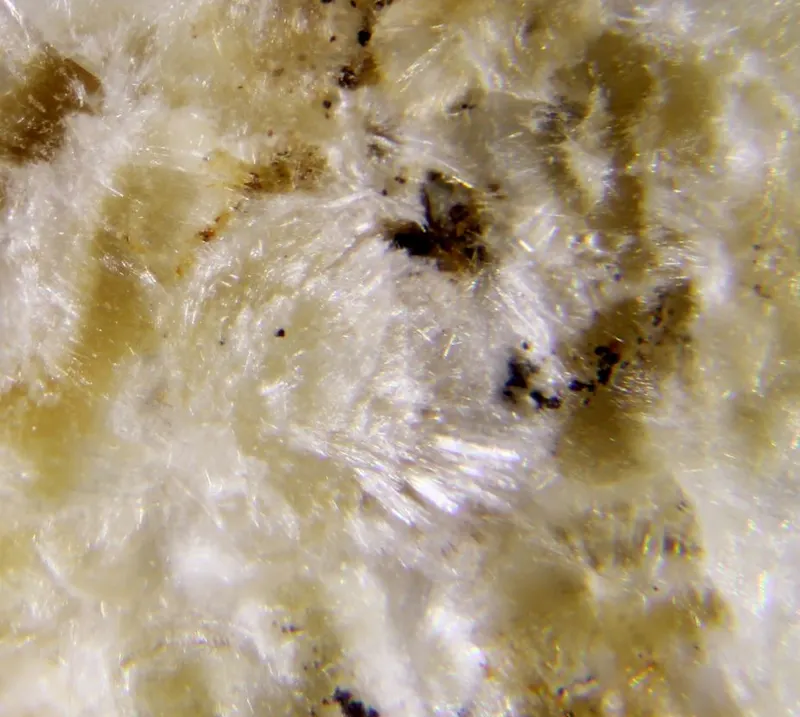

Found as small fibers (10-50 microns, occasionally larger) Has been found as 10-50 micron platy crystals with irregular shape suggesting twinning. Also found as crude to well-formed spheres.

Twinning

Possibly sector-twinned

Type-locality form

10-50 micron sized needles and platy crystals

Comment

Crystal Data: n.d. Point Group: n.d. ; Space Group: n.d. Z =n.d.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen12.515.999199.988
58.29%
15PPhosphorusPhosphorus230.97461.948
18.05%
20CaCalciumCalcium140.07840.078
11.68%
4BeBerylliumBeryllium49.01236.048
10.51%
1HHydrogenHydrogen51.0085.040
1.47%
Total343.102100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

In other languages

German
Glucin
Italian
Glucine

Classification

Strunz
10th ed.

8.DA.45

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DAWith small (and occasionally larger) cationsGroup
  • 8.DA.45GlucineSpecies
Dana
8th ed.

42.04.10.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.04(AB)5(XO4)2Zq·xH2OType
  • 42.04.10— unnamed intermediate level —Group
  • 42.04.10.01GlucineSpecies
CIM

19.3.5

  • 19PhosphatesClass
  • 19.3Phosphates of Be and MgGroup
  • 19.3.5GlucineSpecies

Literature, links & citation

Citations
  1. 1963Grigoriev, N.A. (1963) Glucine - a new beryllium mineral. Zapiski Vsesoyuznogo Mineralogicheskogo Obshchestva: 92: 691-696.
  2. 1964Fleischer, M. (1964) New Mineral Names. American Mineralogist, 49 (7-8) 1151-1154
  3. 1967IMA (1967) International Mineralogical Association: Commission on New Minerals and Mineral Names. Mineralogical Magazine and Journal of the Mineralogical Society, 36 (277) 131-136 doi:10.1180/minmag.1967.036.277.20 DOI: 10.1180/minmag.1967.036.277.20
  4. 2007(2007) Glucine. Handbook of Mineralogy. Mineralogical Society of America
