Gowerite

Ca[B5O8(OH)][B(OH)3] · 3H2O
IMA status
  • Approved
IMA symbol
Gow
Discovered
1955
Also known as
  • Goweriet

Where it forms, where it's found

Geological setting

Weathering of colemanite and priceite veins in altered basaltic rocks.

Type locality
Hard Scramble claim
  1. Ryan
  2. Furnace Creek Mining District (Furnace Creek Borate Mining District)
  3. Inyo County
  4. California
  5. USA

36.3350°, -116.7028°

9recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colorless · white
Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

(001), distinct; (100), imperfect

Fracture
Irregular/Uneven
Density
2.00 g/cm³

Optical

Optical type
Biaxial (+) · 2V calc = 63°
Refractive index
1.484 – 1.55
Surface relief
Moderate
Principal indices
nα 1.484 · nβ 1.501 · nγ 1.550
Pleochroism
Non-pleochroic
Dispersion
r > v to r < v strong
Extinction
Y = b; Z ∧ c = 27°.
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0660
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]660 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation660 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 12.882 Å · b = 16.360 Å · c = 6.558 Å
Cell angles
β = 121.62 °
Ratio a:b:c
1 : 1.270 : 0.509
Z
4
Morphology

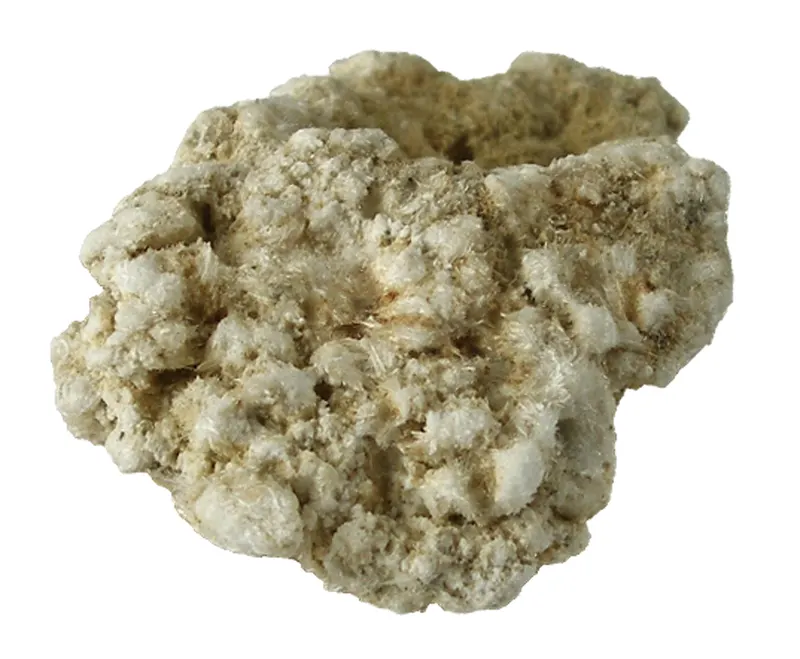

Long prismatic [001] to needle-like, grouped in radiating globular clusters. Striated parallel to [001].

Type-locality form

Globular clusters, to 10 mm in diameter, of radiating small blades. Single crystals are (average) 0.8 mm x 0.06 mm x 0.02 mm.

Comment

data from synthetic material

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
67.60%
5BBoronBoron610.81064.860
18.27%
20CaCalciumCalcium140.07840.078
11.29%
1HHydrogenHydrogen101.00810.080
2.84%
Total355.003100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Goweriet

In other languages

German
Gowerit
Italian
Gowerite
Chinese
戈硼钙石

Classification

Strunz
10th ed.

6.EC.10

  • 6BoratesClass
  • 6.EPentaboratesDivision
  • 6.ECPhyllo-pentaboratesGroup
  • 6.EC.10GoweriteSpecies
Dana
8th ed.

26.05.08.01

  • 26Hydrated Borates Containing Hydroxyl or HalogenClass
  • 26.05PentaboratesType
  • 26.05.08— unnamed intermediate level —Group
  • 26.05.08.01GoweriteSpecies
CIM

9.3.13

  • 9BoratesClass
  • 9.3Borates of Ca and SrGroup
  • 9.3.13GoweriteSpecies

Literature, links & citation

Citations
  1. 1959Erd, R. C., McAllister, J. F., Almond, H. (1959) Gowerite, a new hydrous calcium borate from the Death Valley region, California. American Mineralogist, 44 (9-10) 911-919
  2. 1960Fleischer, M.; Chao, E.C.T. (1960) New mineral names. American Mineralogist, 45 (5-6). 753-756
  3. 1962(1962) International Mineralogical Association: Commission on New Minerals and Mineral Names. Mineralogical Magazine and Journal of the Mineralogical Society, 33 (258) 260-263 doi:10.1180/minmag.1962.033.258.09 DOI: 10.1180/minmag.1962.033.258.09
  4. 1972Konnert, Judith A., Clark, Joan R., Christ, and C. L. (1972) Gowerite, CaB5O8(OH)·B(OH)3·3H2O: Crystal structure and comparison with related borates. American Mineralogist, 57 (3-4) 381-396
  5. 1996Grew, Edward S.; Anovitz, Lawrence M. - Eds. (1996) Boron - Mineralogy, Petrology and Geochemistry. Reviews in Mineralogy Vol. 33. Mineralogical Society of America p.862
