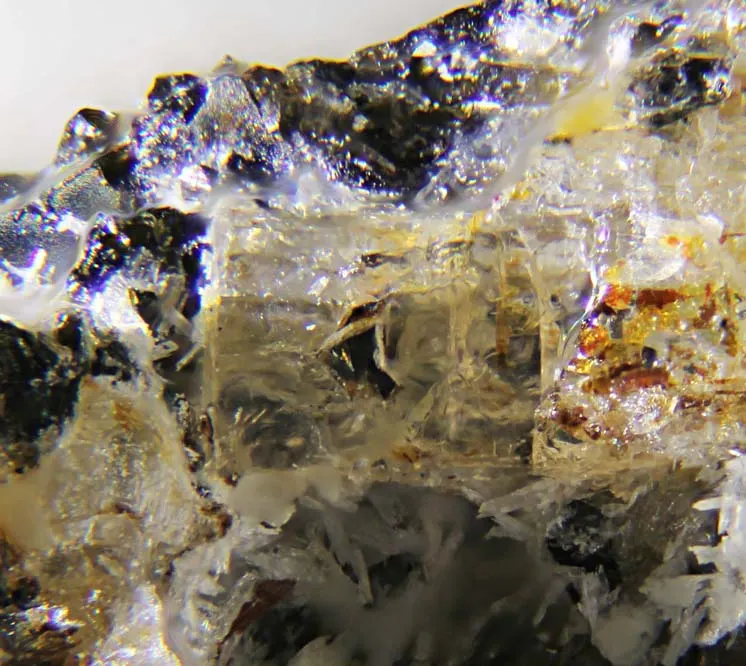

Günterblassite

(K,Ca,Ba,Na,◻)3Fe[(Si,Al)13O25(OH,O)4] · 7H2O
IMA status
  • Approved
IMA symbol
Gbl
IMA approved
2011
Also known as
  • Günterblassiet
  • IMA2011-032

Where it forms, where it's found

Geological setting

Alkalai basalts.

Type locality
Rother Kopf
  1. Roth
  2. Gerolstein
  3. Gerolstein
  4. Vulkaneifel
  5. Rhineland-Palatinate
  6. Germany

50.2453°, 6.6214°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colorless · white · pale yellow · or brown
Streak
White
Tenacity
brittle
Cleavage
Perfect

Perfect cleavage is parallel to (001) and less perfect, to (100) and (010).

Density
2.18 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 80° · 2V calc = 79°
Refractive index
1.488 – 1.493
Surface relief
Low
Principal indices
nα 1.488 · nβ 1.490 · nγ 1.493
Dispersion
none
Extinction
Z = c; axes of optical indicatrix are perpendicular to cleavage planes.
Michel-Lévy diagramhighlighted lineδ = 0.0050
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]50 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation50 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#34
Cell parameters
a = 6.528(1) Å · b = 6.970(1) Å · c = 37.216(5) Å
Ratio a:b:c
1 : 1.068 : 5.701
Z
2
Morphology

Flattened, thin lamellar to tabular crystals and near-parallel to sheaf-shaped aggregates. Simply crystals are most common with (001) (major), (010) and (100). Less common faces include the rhombic prism (110) and the {h0l} and/or {0kl} face belts, which are uneven and convex.

Type-locality form

Flattened from thin lamellar to tabular crystals up to 0.2 × 1 × 1.5 mm in size and their near parallel or sheaf-shaped aggregates up to 3 mm across.

Comment

Pnm21

Crystal structure

Synonyms

  • Günterblassiet
  • IMA2011-032

In other languages

German
Günterblassit · IMA 2011-032
Italian
günterblassite

Classification

Strunz
10th ed.

9.EB.25

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EBDouble nets with 4- and 6-membered ringsGroup
  • 9.EB.25GünterblassiteSpecies

Literature, links & citation

Citations
  1. 2011Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2011) New minerals and nomenclature modifications approved in 2011, CNMNC Newsletter No. 10. Mineralogical Magazine, 75 (5) 2549-2561 doi:10.1180/minmag.2011.075.5.2549 DOI: 10.1180/minmag.2011.075.5.2549
  2. 2012Rastsvetaeva, R. K., Aksenov, S. M., Chukanov, N. V. (2012) Crystal structure of günterblassite, a new mineral with a triple tetrahedral layer. Doklady Chemistry, 442 (2) 57-62 doi:10.1134/s0012500812020115DOI: 10.1134/s0012500812020115
  3. 2012Chukanov, N. V., Rastsvetaeva, R. K., Aksenov, S. M., Pekov, I. V., Zubkova, N. V., Britvin, S. N., Belakovskiy, D. I., Schüller, W., Ternes, B. (2012) Günterblassite, (K,Ca)3 − x Fe[(Si,Al)13O25(OH,O)4] · 7H2O, a new mineral: the first phyllosilicate with triple tetrahedral layer. Geology of Ore Deposits, 54 (8) 656-662 doi:10.1134/s1075701512080065DOI: 10.1134/s1075701512080065
  4. 2022(2022) Günterblassite. Handbook of Mineralogy. Mineralogical Society of America
