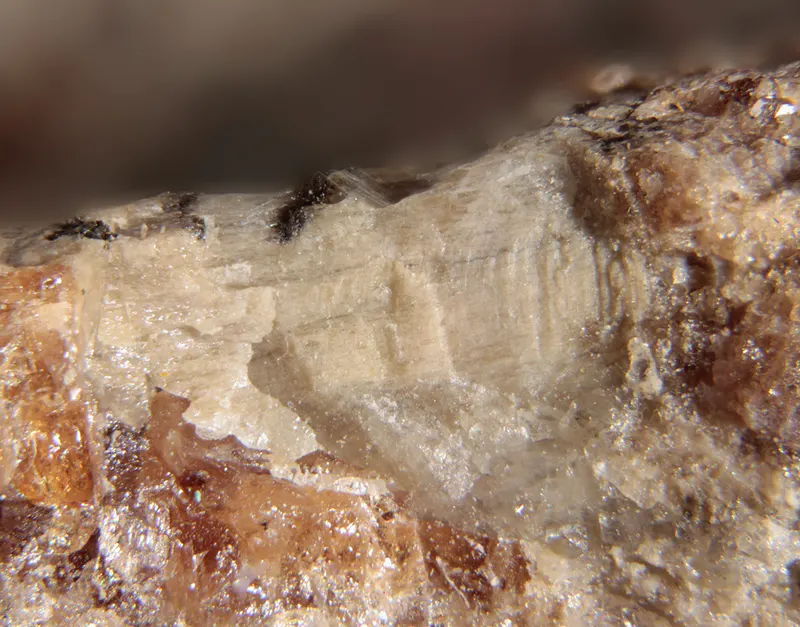

Harstigite

Ca6Be4Mn2+(SiO4)2(Si2O7)2(OH)2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Har
Discovered
1886
Also known as
  • Harstigiet

Where it forms, where it's found

Geological setting

Open vein in hausmannite and dolomite.

Type locality
Harstigen Mine
  1. Pajsberg
  2. Persberg ore district
  3. Filipstad
  4. Värmland County
  5. Sweden

59.7853°, 14.3139°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colorless
Tenacity
brittle
Cleavage
None Observed
Fracture
Splintery · Sub-Conchoidal
Density
3.16 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 52° · 2V calc = 80°
Refractive index
1.678 – 1.683
Surface relief
High
Principal indices
nα 1.678 · nβ 1.68 · nγ 1.683
Dispersion
r >> v strong
Michel-Lévy diagramhighlighted lineδ = 0.0050
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]50 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation50 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 13.830 Å · b = 13.636 Å · c = 9.793 Å
Ratio a:b:c
1 : 0.986 : 0.708
Z
4
Twinning

Cruciform twin, composed of two orthorhombic individuals twinned on (110).

Type-locality form

Small stout prismatic crystals without cleavage.

Comment

Space Group: Pnam

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
43.34%
20CaCalciumCalcium640.078240.468
27.14%
14SiSiliconSilicon628.085168.510
19.02%
25MnManganeseManganese154.93854.938
6.20%
4BeBerylliumBeryllium49.01236.048
4.07%
1HHydrogenHydrogen21.0082.016
0.23%
Total885.956100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • F

Synonyms

  • Harstigiet

In other languages

German
Harstigit
Italian
Harstigite

Classification

Strunz
10th ed.

9.BF.05

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BFSorosilicates with mixed SiO4 and Si2O7 groups; cations in tetrahedral [4] and greater coordinationGroup
  • 9.BF.05HarstigiteSpecies
Dana
8th ed.

57.01.01.02

  • 57Sorosilicates Si3o10 Groups and Larger Noncyclic GroupsClass
  • 57.01Insular Si3O10 and Larger Noncyclic Groups with [Si3O10] groupsType
  • 57.01.01Aminoffite and related speciesGroup
  • 57.01.01.02HarstigiteSpecies
CIM

14.3.20

  • 14Silicates not Containing AluminumClass
  • 14.3Silicates of BeGroup
  • 14.3.20HarstigiteSpecies

Literature, links & citation

Citations
  1. 1886Flink, Gustav (1886) Mineralogiska notiser I. 14. Harstigit från Pajsberg [Mineralogical notes I. 14. Harstigite from Pajsberg]. Bihang til Svenska vetenskapsakademien handlingar, 12 (3) 59-63
  2. 1916Flink, G (1916) Bidrag till Sveriges Mineralogi 4. [Contribution to Sweden's Mineralogy 4.]. Arkiv für Kemi, Mineralogi och Geologi [Archive for Chemistry, Mineralogy and Geology], 6 (21) 1-149
  3. 1968Moore, Paul B. (1968) Relations of the manganese-calcium silicates, gageite and harstigite. American Mineralogist, 53 (1-2) 309-315
  4. 1968Moore, Paul B. (1968) Relation of the manganese-calcium silicates, gageite and harstigite: a correction. American Mineralogist, 53 (7-8) 1418-1420
  5. 1969Welin, E. (1969) Notes on the mineralogy of Sweden 6. X-ray powder data for minerals from Långban and the related mineral deposits of Central Sweden. Arkiv för Mineralogi och Geologi, 4 (6, nr 30). 499-541
