Haynesite

(UO2)3(Se4+O3)2(OH)2 · 5H2O
IMA status
  • Approved
IMA symbol
Hay
Discovered
1991
Also known as
  • Fuhrburgerite
  • Haynesiet
  • IMA1990-023
  • +1 more

Where it forms, where it's found

Geological setting

Oxidized uranium deposit in mudstones and sandstones.

Type locality
Repete Mine
  1. Montezuma Canyon Mining District
  2. San Juan County
  3. Utah
  4. USA

37.4111°, -109.1870°

3recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789101.5 – 2/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Amber-yellow
Cleavage
Distinct/Good

(010), good

Density
4.1 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 45° · 2V calc = 48°
Refractive index
1.618 – 1.765
Surface relief
High
Principal indices
nα 1.618 · nβ 1.738 · nγ 1.765
Pleochroism
Strong

bright yellow to pale yellow

Dispersion
r > v
UV response
yellowish green under SW UV
Michel-Lévy diagramhighlighted lineδ = 0.1470
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1470 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1470 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 8.025(5) Å · b = 17.43(1) Å · c = 6.935(3) Å
Ratio a:b:c
1 : 2.172 : 0.864
Z
2
Type-locality form

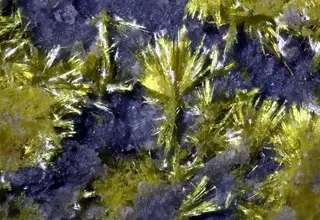

Amber-yellow tablets, elongated on [001], and as acicular prismatic rosettes to 3 mm in diameter.

Comment

Point Group: 2/m 2/m 2/m or mm2; Space Group: P ncm or P nc2.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium3238.029714.087
60.10%
8OOxygenOxygen1915.999303.981
25.59%
34SeSeleniumSelenium278.971157.942
13.29%
1HHydrogenHydrogen121.00812.096
1.02%
Total1188.106100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Fuhrburgerite
  • Haynesiet
  • IMA1990-023
  • IMA1990-024

In other languages

German
Haynesit · IMA 1990-023
Italian
Haynesite

Classification

Strunz
10th ed.

4.JJ.25

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JJSelenites with additional anions, with H2OGroup
  • 4.JJ.25HaynesiteSpecies
Dana
8th ed.

34.07.07.01

  • 34Selenites, Tellurites and SulfitesClass
  • 34.07Hydrated Selenites, Tellurites and Sulfites containing Hydroxyl or HalogenType
  • 34.07.07— unnamed intermediate level —Group
  • 34.07.07.01HaynesiteSpecies
CIM

28.1.6

  • 28Selenites, Selenates, Tellurites, and TelluratesClass
  • 28.1SelenitesGroup
  • 28.1.6HaynesiteSpecies

Literature, links & citation

Citations
  1. 1991Deliens, M., Piret, P. (1991) La haynesite, sélénite hydraté d’uranyle, nouvelle espèce minérale de la Mine Repete, Comté de San Juan, Utah. The Canadian Mineralogist, 29 (3) 561-564
  2. 1992Jambor, L., Vanko, David A. (1992) New Mineral Names. American Mineralogist, 77 (3-4) 446-452
  3. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
  4. 1999Cejka, J., Sejkora, J., Deliens, M. (1999) To the infrared spectrum of haynesite, a hydrated uranyl selenite, and its comparison with other uranyl selenites. Neues Jahrbuch für Mineralogie, Monatshefte, 1999, 241-252.
  5. 2005(2005) Haynesite. Handbook of Mineralogy. Mineralogical Society of America
