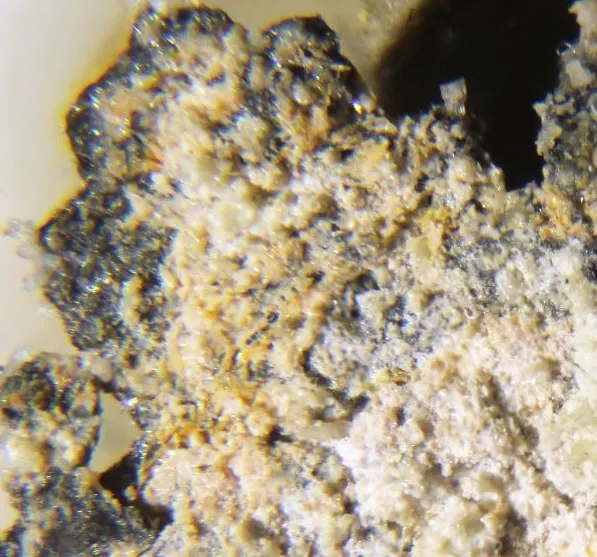

Hematophanite

Pb4Fe3+3O8(Cl,OH)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Hph
Discovered
1928
Also known as
  • Haematophanit
  • Haematophanita
  • Haematophanite
  • +5 more

Where it forms, where it's found

Type locality
Jakobsberg Mine
  1. Jakobsberg ore field
  2. Nordmark mining district
  3. Filipstad
  4. Värmland County
  5. Sweden

59.8280°, 14.1072°

3recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Opaque
Colour
Deep red-brown
Streak
Yellow-red, orange
Cleavage
Very Good

On (001), micaceous.

Density
7.70 g/cm³

Optical

Optical type
Uniaxial (-)
Birefringence
Low.

Crystallography

Crystal system
Tetragonal
Space group
#163
Cell parameters
a = 3.92 Å · c = 15.31 Å
Z
1
Morphology

Crystals are thin tablets (001) as lamellar aggregates in part.

Parting
Possibly present inclined to (001).
Type-locality form

Isolated thin plates up to 5 mm in diameter or aggregated into lamellar aggregates.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead4207.200828.800
70.43%
26FeIronIron355.845167.535
14.24%
8OOxygenOxygen915.999143.991
12.24%
17ClChlorineChlorine135.45035.450
3.01%
1HHydrogenHydrogen11.0081.008
0.08%
Total1176.784100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Haematophanit
  • Haematophanita
  • Haematophanite
  • Hämatophanita
  • Hämatophanite
  • Hematophaniet
  • Hematophanit
  • Hematophanita

In other languages

German
Hämatophanit
Spanish
Hematofanita
Italian
Ematofanite · Hematophanite

Classification

Strunz
10th ed.

3.DB.35

  • 3HalidesClass
  • 3.DOxyhalides, hydroxyhalides and related double halidesDivision
  • 3.DBWith Pb, Cu, etc.Group
  • 3.DB.35HematophaniteSpecies
Dana
8th ed.

07.11.04.01

  • 07Multiple OxidesClass
  • 07.11MiscellaneousType
  • 07.11.04— unnamed intermediate level —Group
  • 07.11.04.01HematophaniteSpecies
CIM

8.8.22

  • 8Halides - Fluorides, Chlorides, Bromides and Iodides; also Fluoborates and FluosilicatesClass
  • 8.8Halides of PbGroup
  • 8.8.22HematophaniteSpecies

Literature, links & citation

Citations
  1. 1928Johansson, K. (1928) 3. Hämatophanit [3. Hematophanite], in IV. Mineralogische Mitteilungen. Zeitschrift für Kristallographie - Crystalline Materials, 68 (1). 102-107 doi:10.1524/zkri.1928.68.1.87DOI: 10.1524/zkri.1928.68.1.87
  2. 1928Foshag, W.F. (1928) New mineral names. American Mineralogist, 13 (12). 592-593
  3. 1944Palache, Charles, Berman, Harry, Frondel, Clifford (1944) The System of Mineralogy (7th ed.) Vol. 1 - Elements, Sulfides, Sulfosalts, Oxides. John Wiley and Sons, New York.
  4. 1971Rouse, Roland C. (1971) A note on the structural chemistry of hematophanite. American Mineralogist, 56 (3-4) 625-627
  5. 1973Rouse, R. C. (1973) Hematophanite, a derivative of the perovskite structure. Mineralogical Magazine, 39 (301) 49-53 doi:10.1180/minmag.1973.039.301.06 DOI: 10.1180/minmag.1973.039.301.06
