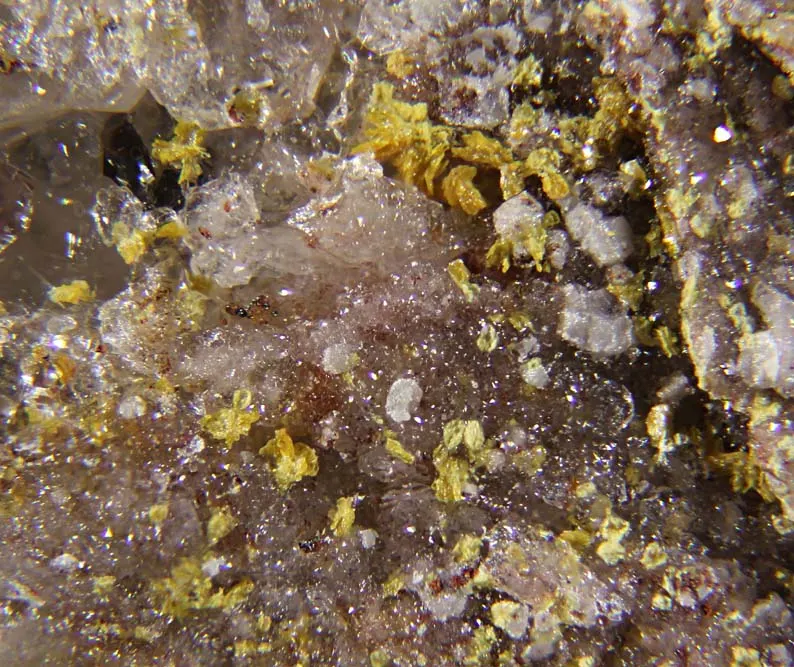

Heyite

Pb5Fe2+2O4(VO4)2
IMA status
  • Approved
IMA symbol
Hyt
Discovered
1971
IMA approved
1971
Also known as
  • Heyiet
  • IMA1971-042

Where it forms, where it's found

Geological setting

In silicified limestone with other oxidation-zone minerals derived from galena, chalcopyrite, and pyrite. Occurs on and replaces corroded tungstenian wulfenite.

Type locality
Betty Jo Claim
  1. Nevada Mining District
  2. White Pine County
  3. Nevada
  4. USA
9recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Marigold-orange · orange-brown
Streak
Amber-yellow
Tenacity
brittle
Fracture
Irregular/Uneven
Density
6.3 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 89° · 2V calc = 82°
Refractive index
2.185 – 2.266
Surface relief
Very high
Principal indices
nα 2.185 · nβ 2.219 · nγ 2.266
Dispersion
r > v, weak.
Extinction
Y = b; X ∧ c = 36°.
Michel-Lévy diagramhighlighted lineδ = 0.0810
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]810 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation810 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/m
Cell parameters
a = 8.910(4) Å · b = 6.017(4) Å · c = 7.734(4) Å
Cell angles
β = 111.88(7) °
Ratio a:b:c
1 : 0.675 : 0.868
Z
1
Morphology

Elongate along the <em>b</em> axis and tabular on (100). Forms include (001), (100), (110), and (101). Larger crystals show a composite structure with <em>b</em> axes diverging by a few degrees resulting in a structure like the 'bow ties' of prehnite.

Twinning

Common on (110), forming a “Y”-shaped doublet or “K”-shaped triplet.

Type-locality form

Small, simple, monoclinic crystals to 0.4 mm.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead5207.2001036.000
71.86%
8OOxygenOxygen1215.999191.988
13.32%
26FeIronIron255.845111.690
7.75%
23VVanadiumVanadium250.942101.884
7.07%
Total1441.562100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Heyiet
  • IMA1971-042

In other languages

German
Heyit · IMA 1971-042
Italian
Heyite
Chinese
钒铁铅矿

Classification

Strunz
10th ed.

8.BK.20

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BKWith medium-sized and large cations, (OH, etc.):RO4 = 2:1, 2.5:1Group
  • 8.BK.20HeyiteSpecies
Dana
8th ed.

41.02.02.01

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.02(AB)7(XO4)2ZqType
  • 41.02.02— unnamed intermediate level —Group
  • 41.02.02.01HeyiteSpecies
CIM

21.4.20

  • 21Vanadates (and vanadates with arsenate or phosphate)Class
  • 21.4Vanadates of U, Mn, Fe or NiGroup
  • 21.4.20HeyiteSpecies

Literature, links & citation

Citations
  1. 1973Williams, Sidney A. (1973) Heyite, Pb5Fe2(VO4)2O4 , a New Mineral from Nevada. Mineralogical Magazine, 39 (301) 65-68 doi:10.1180/minmag.1973.039.301.09 DOI: 10.1180/minmag.1973.039.301.09
  2. 1973Symes, R. F., Williams, S. A. (1973) Heyite and brackebuschite compared. Mineralogical Magazine, 39 (301) 69-73 doi:10.1180/minmag.1973.039.301.10 DOI: 10.1180/minmag.1973.039.301.10
  3. 1974Fleischer, Michael; Mandarino, Joseph A (1974) New mineral names. American Mineralogist, 59 (3-4). 381-384
  4. 2005(2005) Heyite. Handbook of Mineralogy. Mineralogical Society of America
