Holfertite

(UO2)1.75Ca0.25TiO4 · 3H2O
IMA status
  • Approved
IMA symbol
Hlf
IMA approved
2003
Also known as
  • Holfertiet
  • IMA2003-009

Where it forms, where it's found

Geological setting

In vesicles in rhyolite.

Type locality
Holfertite pit
  1. Starvation Canyon
  2. Thomas Range
  3. Juab County
  4. Utah
  5. USA

39.7032°, -113.1438°

6recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Canary yellow to orange yellow
Streak
Pale yellow
Tenacity
brittle
Cleavage
Perfect

(110)

Fracture
Irregular/Uneven · Conchoidal
Density
4.22 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.815 – 1.91
Surface relief
Very high
Principal indices
nω 1.815 · nε 1.910
Pleochroism
Non-pleochroic
UV response
None
Michel-Lévy diagramhighlighted lineδ = 0.0950
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]950 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation950 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#75
Cell parameters
a = 10.824 Å · c = 7.549 Å
Z
3

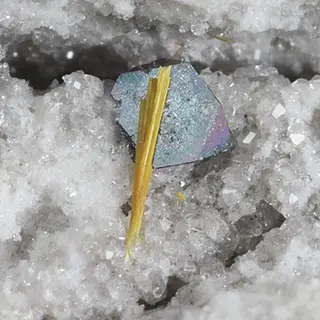

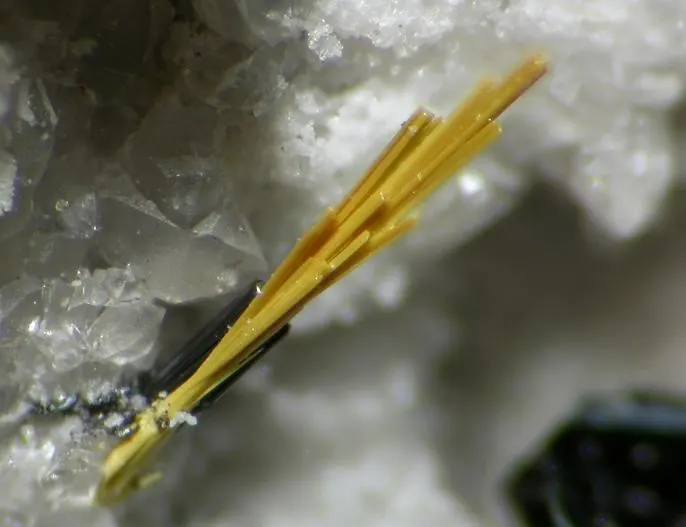

Morphology

Hollow elongated prisms.

Type-locality form

Minute yellow, rod-like needles sparsely.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium1.75238.029416.551
64.24%
8OOxygenOxygen10.515.999167.989
25.91%
22TiTitaniumTitanium147.86747.867
7.38%
20CaCalciumCalcium0.2540.07810.020
1.54%
1HHydrogenHydrogen61.0086.048
0.93%
Total648.475100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Holfertiet
  • IMA2003-009

In other languages

German
Holfertit · IMA 2003-009
Italian
Holfertite

Classification

Strunz
10th ed.

4.GB.70

  • 4OxidesClass
  • 4.GUranyl HydroxidesDivision
  • 4.GBWith additional cations (K, Ca, Ba, Pb, etc.); with mainly UO2(O,OH)5 pentagonal polyhedraGroup
  • 4.GB.70HolfertiteSpecies

Literature, links & citation

Citations
  1. 1995Foord, Eugene E., Lichte, Frederick E., Chirnside, William, Esposito, Kenneth J., Davis, Andrew M. (1995) A New U-Ti-Ca-HREE Hydrated Oxide and Associated Niobian Rutile from Topaz Valley, Utah, in March - April 1995. The Mineralogical Record, 26 (2) 122-128
  2. 2002Belakovskiy, D.I. and Pautov, L.A. (2002) A new hydrous uranium titanate from Thomas Range, Utah, USA. International Mineralogical Association, 18th. General Meeting (Edinburgh): 135.
  3. 2005Sokolova, E., Hawthorne, F.C., Belakovskiy, D.I., Pautov, L.A. (2005) The OD (order–disorder) structure of holfertite, a hydrated uranyl titanate mineral from Searle Canyon, Thomas Range, Utah, USA. The Canadian Mineralogist: 43: 1545-1552.
  4. 2006Hawthorne, Frank C., Belakovskiy, D.I., Pautov, L.A., Sokolova, E., Mokhov, A.V. (2006) Holfertite: a new hydroxyl-hydrated uranium titanite from Starvation Canyon, Thomas Range, Utah. The Mineralogical Record, 37 (4) 311-317
  5. 2006Ercit, T. S.; Piilonen, P.C.; Locock, A.J.; Kolitsch, U.; Rowe, R. (2006) New mineral names. American Mineralogist, 91 (7). 1201-1209 doi:10.2138/am.2006.467DOI: 10.2138/am.2006.467
