Horváthite-(Y)

NaY(CO3)F2
IMA status
  • Approved
IMA symbol
Hrv-Y
IMA approved
1996
Also known as
  • Horváthiet-(Y)
  • IMA1996-032

Where it forms, where it's found

Geological setting

From an altered section of pegmatite dike in a nepheline syenite intrusive unit.

Type locality
Poudrette quarry (De-Mix quarry
  1. Demix quarry
  2. Uni-Mix quarry
  3. Carrière Mont Saint-Hilaire
  4. MSH)
  5. Mont Saint-Hilaire
  6. La Vallée-du-Richelieu RCM
  7. Montérégie
  8. Québec
  9. Canada

45.5628°, -73.1417°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Colorless to pale beige
Streak
White
Cleavage
Very Good

(100) very good, (010) good

Fracture
Irregular/Uneven
Density
3.58 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 82° · 2V calc = 83°
Refractive index
1.457 – 1.622
Surface relief
Moderate
Principal indices
nα 1.457 · nβ 1.543 · nγ 1.622
Pleochroism
Weak

Y ≈ Z = pale brown, X = colorless.

Dispersion
None
Extinction
Y = a, X = b, Z = c.
Michel-Lévy diagramhighlighted lineδ = 0.1650
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1650 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1650 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#69
Cell parameters
a = 6.964 Å · b = 9.173 Å · c = 6.302 Å
Ratio a:b:c
1 : 1.317 : 0.905
Unit cell volume
402.58 ų
Z
4
Morphology

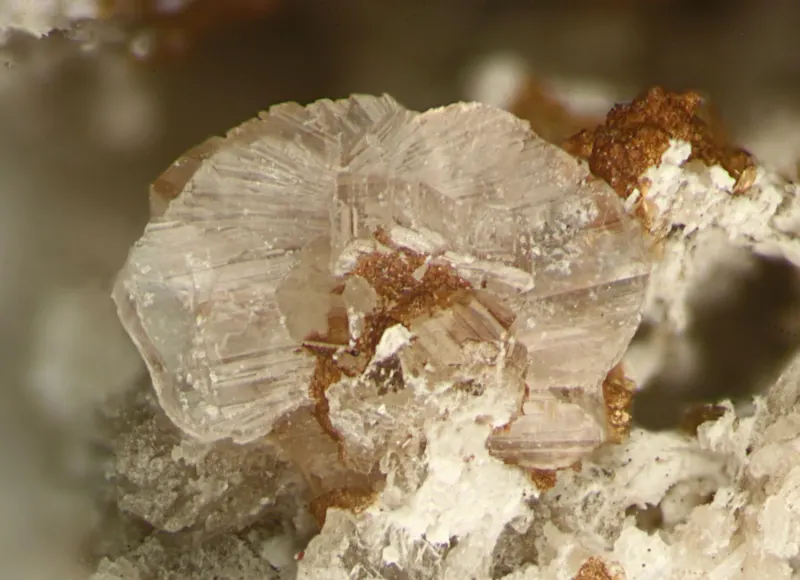

Plates; prismatic crystals elongated on [010]. Aggregates are commonly "wagon-wheel" or cylindrical in habit. Forms include (100) > (001) > (010) and minor (110), (011) and (101).

Type-locality form

Two distinct habits: 1) Stacks of plates, measuring approximately 1 x 1 X 0.25 mm and 2) as blocky aggregates of radiating crystals 1-5 mm across with individual, striated prismatic crystals up to 1 mm long.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
39YYttriumYttrium188.90688.906
42.36%
8OOxygenOxygen315.99947.997
22.87%
9FFluorineFluorine218.99837.996
18.10%
11NaSodiumSodium122.99022.990
10.95%
6CCarbonCarbon112.01112.011
5.72%
Total209.900100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Horváthiet-(Y)
  • IMA1996-032

In other languages

German
Horváthit- · Horváthit-(Y) · IMA 1996-032
Italian
Horváthite- · Horváthite-(Y)

Classification

Strunz
10th ed.

5.BD.25

  • 5CarbonatesClass
  • 5.BCarbonates with additional anions, without H2ODivision
  • 5.BDWith rare earth elements (REE)Group
  • 5.BD.25Horváthite-(Y)Species
Dana
8th ed.

16a.03.11.02

  • 16aAnhydrous Carbonates Containing Hydroxyl or HalogenClass
  • 16a.03(AB)2(XO3)ZqType
  • 16a.03.11— unnamed intermediate level —Group
  • 16a.03.11.02Horváthite-(Y)Species

Literature, links & citation

Citations
  1. 1997Grice, Joel D., Chao, George Y. (1997) Horváthite-(Y), rare-earth-fluorocarbonate, a new mineral species from Mont Saint-Hilaire, Quebec. The Canadian Mineralogist, 35 (3) 743-749
  2. 1998Jambor, John L., Roberts, Andrew C. (1998) New mineral names. American Mineralogist, 83 (3-4) 400-403
  3. 2005(2005) Horváthite-(Y). Handbook of Mineralogy. Mineralogical Society of America
  4. 2017HORVÁTH, L. & HORVÁTH, E. (2017) An update of the minerals of the Saint-Amable sill (2017). Canadian Micro-Mineral Association, Micronews 51 (9), 2-4.
