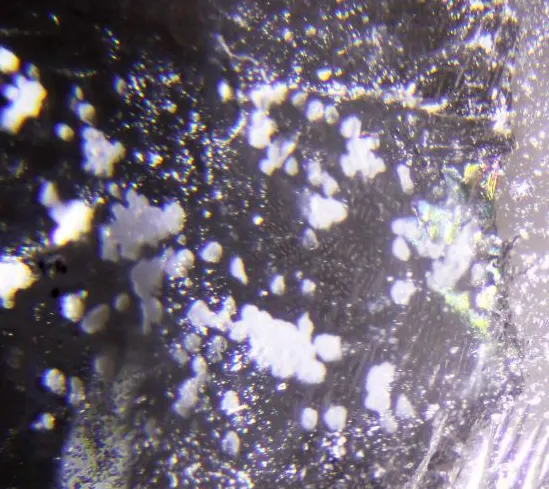

Hungchaoite

MgB4O5(OH)4 · 7H2O
IMA status
  • Approved
IMA symbol
Hch
Discovered
1964
Also known as
  • Hungchaoiet

Where it forms, where it's found

Geological setting

saline lacustrine sediments

Type locality
Da Qaidam salt lake (Dachaidan salt lake)
  1. Da Qaidam (Dachaidan Co.)
  2. Haixi Mongol and Tibetan Autonomous Prefecture
  3. Qinghai
  4. China

37.8319°, 95.2544°

7recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
colorless
Tenacity
brittle
Cleavage
Perfect

(111), perfect; (111), good; (010), imperfect.

Density
1.706 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 15° · 2V calc = 36°
Refractive index
1.445 – 1.49
Surface relief
Low
Principal indices
nα 1.445 · nβ 1.485 · nγ 1.490
Dispersion
relatively strong
UV response
nonfluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0450
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]450 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation450 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 8.807(1) Å · b = 10.657(1) Å · c = 7.897(1) Å
Cell angles
α = 103.39(1) ° · β = 108.53(1) ° · γ = 97.18(1) °
Ratio a:b:c
1 : 1.210 : 0.897
Z
2
Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1615.999255.984
74.92%
5BBoronBoron410.81043.240
12.66%
12MgMagnesiumMagnesium124.30524.305
7.11%
1HHydrogenHydrogen181.00818.144
5.31%
Total341.673100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Hungchaoiet

In other languages

German
Hungchaoit
Italian
Hungchaoite
Chinese
章氏硼镁石

Classification

Strunz
10th ed.

6.DA.20

  • 6BoratesClass
  • 6.DTetraboratesDivision
  • 6.DANeso-tetraboratesGroup
  • 6.DA.20HungchaoiteSpecies
Dana
8th ed.

26.04.03.01

  • 26Hydrated Borates Containing Hydroxyl or HalogenClass
  • 26.04TetraboratesType
  • 26.04.03— unnamed intermediate level —Group
  • 26.04.03.01HungchaoiteSpecies
CIM

9.2.12

  • 9BoratesClass
  • 9.2Borates of Be and MgGroup
  • 9.2.12HungchaoiteSpecies

Literature, links & citation

Citations
  1. 1964Chun, I.H., Hsieh, H.T., Chien, T.C., Liu, L.P. (1964) Preliminary report on the occurrence of a new hydrous magnesium borate - hungchaoite, MgO·2B2O3·9H2O, in China. Scientia Sinica: 13: 525-527. (in Russian)
  2. 1964Chun, I.H., Hsieh, H.T., Chien, T.C., Liu, L.P. (1964) Hungchaoite, a new hydrous magnesium borate. Acta Geologica Sinica: 44: 351-356.
  3. 1965Fleischer, Michael (1965) New Mineral Names. American Mineralogist, 50 (1-2) 261-268
  4. 1967IMA (1967) International Mineralogical Association: Commission on New Minerals and Mineral Names. Mineralogical Magazine and Journal of the Mineralogical Society, 36 (277) 131-136 doi:10.1180/minmag.1967.036.277.20 DOI: 10.1180/minmag.1967.036.277.20
  5. 1974Tung Chi-ho (1974) X-ray powder photograph indexing and cell constant determination of hungtsaoite, a new mineral. Geochimica: 1974(3): 204-312 (in Chinese with English abstract). - American Mineralogist (1975), 50, 262 (abstract).
