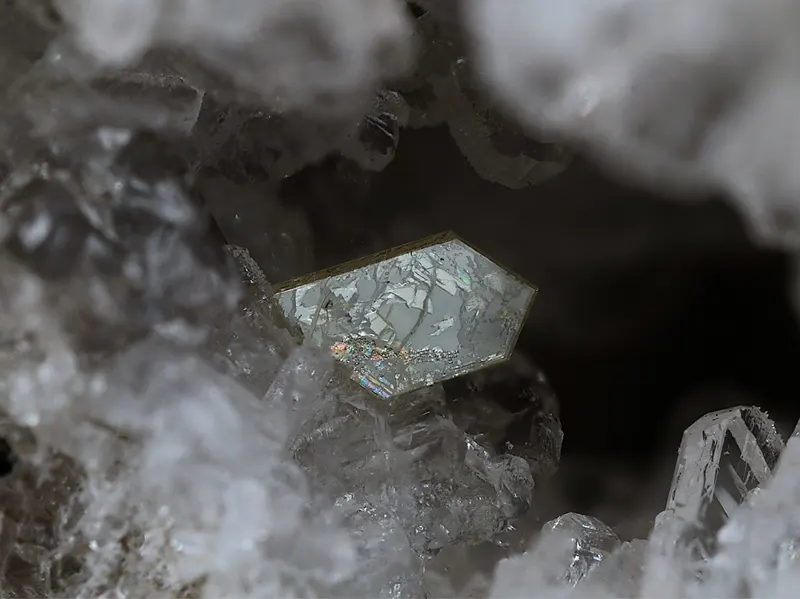

Huttonite

Th(SiO4)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ht
Discovered
1950

Where it forms, where it's found

Geological setting

Heavy mineral beach detrital sands

Type locality
Gillespie's Beach
  1. Westland District
  2. West Coast Region
  3. New Zealand

-43.4080°, 169.8288°

43recorded occurrences
Source · OpenStreetMap

Varieties

Radioactivity

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colourless to very pale cream · pale greenish
Cleavage
Distinct/Good

(001)

Fracture
Conchoidal
Density
7.1 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 25°
Refractive index
1.898 – 1.922
Surface relief
Very high
Principal indices
nα 1.898 · nβ 1.900 · nγ 1.922
Dispersion
r > v extreme
UV response
Fluoresces dull white with a pink tinge under SW UV
Michel-Lévy diagramhighlighted lineδ = 0.0240
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]240 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation240 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 6.80(3) Å · b = 6.96(3) Å · c = 6.54(3) Å
Cell angles
β = 104.92(16) °
Ratio a:b:c
1 : 1.024 : 0.962
Z
4
Type-locality form

anhedral grains

Comment

Space Group: P21/n : rarely metamict.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
90ThThoriumThorium1232.038232.038
71.59%
8OOxygenOxygen415.99963.996
19.74%
14SiSiliconSilicon128.08528.085
8.67%
Total324.119100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • U
  • TR
  • Fe
  • Mn
  • Ca
  • F
  • OH

In other languages

German
Huttonit
Spanish
Huttonita
Italian
Huttonite
Chinese
斜钍石

Classification

Strunz
10th ed.

9.AD.35

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.ADNesosilicates without additional anions; cations in [6] and/or greater coordinationGroup
  • 9.AD.35HuttoniteSpecies
Dana
8th ed.

51.05.03.01

  • 51Nesosilicates Insular Sio4 Groups OnlyClass
  • 51.05Insular SiO4 Groups Only with cations in >[6] coordinationType
  • 51.05.03Huttonite groupGroup
  • 51.05.03.01HuttoniteSpecies
CIM

14.11.2

  • 14Silicates not Containing AluminumClass
  • 14.11Silicates of Th and HgGroup
  • 14.11.2HuttoniteSpecies

Group, growth & confusion

In the same group
3 members
Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1951Pabst, Adolf, Hutton, C. O. (1951) Huttonite, a new monoclinic thorium silicate, with an account of its occurrence, analysis, and properties. American Mineralogist, 36 (1-2) 60-65
  2. 1952Fleischer, M. (1952) New mineral names. American Mineralogist, 37 (3-4). 359-362
  3. 1964Finch, C. B.; Harris, L. A.; Clark, G. W. (1964) The thorite->huttonite phase transformation as determined by growth of synthetic thorite and huttonite single crystals. American Mineralogist, 49 (5-6). 782-785
  4. 1978Taylor, M., Ewing, R. C. (1978) The crystal structures of the ThSiO4 polymorphs: huttonite and thorite. Acta Crystallographica Section B Structural Crystallography and Crystal Chemistry, 34 (4) 1074-1079 doi:10.1107/s0567740878004951DOI: 10.1107/s0567740878004951
  5. 1980Kucha, Henryk (1980) Continuity in the monazite-huttonite series. Mineralogical Magazine, 43 (332) 1031-1034 doi:10.1180/minmag.1980.043.332.12 DOI: 10.1180/minmag.1980.043.332.12
