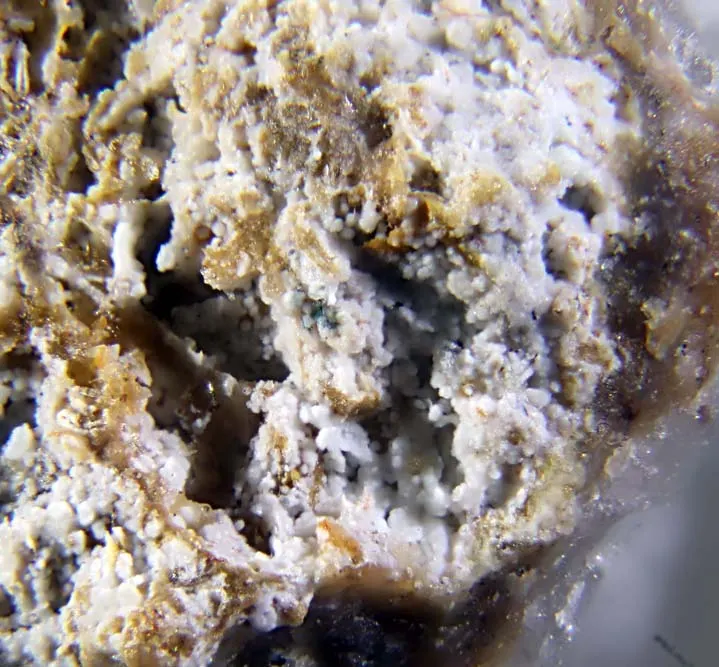

Iangreyite

Ca2Al7(PO4)2(PO3OH)2(OH,F)15 · 8H2O
IMA status
  • Approved
IMA symbol
Igy
IMA approved
2010
Also known as
  • Iangreyiet
  • IMA2009-087

Where it forms, where it's found

Geological setting

Weathering of Pb-Zn-Ag-containing veins in thin-bedded quartzite, argillite, and phosphatic argillite (Silver Coin). A Sn-deposit in autometamorphosed Li-mica-topaz granite with variable degrees of greisenization (Krasno). It appears to be a low-temperature alteration product of F-rich perhamite.

Type locality
Silver Coin Mine
  1. Valmy
  2. Iron Point Mining District
  3. Humboldt County
  4. Nevada
  5. USA

40.9289°, -117.3239°

7recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colourless · white · cream · yellowish · light pink
Tenacity
flexible
Cleavage
Perfect

On (001)

Somewhat flexible to brittle.

Fracture
Irregular/Uneven
Density
2.46 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.544 – 1.554
Surface relief
Moderate
Principal indices
nω 1.544 · nε 1.554
Pleochroism
Non-pleochroic
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
P3 2 1
Cell parameters
a = 6.988(1) Å · c = 16.707(3) Å
Morphology

Thin hexagonal tablets. The forms observed are (001) and (100).

Type-locality form

Thin, hexagonal tablets up to 0.4 mm in diameter and 0.02 mm thick (Silver Coin), and as coatings consisting of 0.3 mm wide clusters of minute and very thin intergrown tabular crystals with a maximum diameter of 0.2 mm (Krasno).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3915.999623.961
46.74%
9FFluorineFluorine1518.998284.970
21.34%
13AlAluminiumAluminium726.982188.874
14.15%
15PPhosphorusPhosphorus430.974123.896
9.28%
20CaCalciumCalcium240.07880.156
6.00%
1HHydrogenHydrogen331.00833.264
2.49%
Total1335.121100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Iangreyiet
  • IMA2009-087

In other languages

German
Iangreyit · IMA 2009-087
Spanish
iangreyita
Italian
iangreyite

Classification

Strunz
10th ed.

8.DE.45

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DEWith only medium-sized cations, (OH, etc.):RO4 = 3:1Group
  • 8.DE.45IangreyiteSpecies
Dana
8th ed.

42.13.19

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.13MiscellaneousType
  • 42.13.19— unnamed intermediate level —Group
  • 42.13.19IangreyiteSpecies

Literature, links & citation

Citations
  1. 2006Sejkora, J., Škoda, R., Ondruš, P. (2006) New naturally occurring mineral phases from the Krásno - Horní Slavkov area, western Bohemia, Czech Republic. Journal of the Czech Geological Society, 51 (1-2) 159-187
  2. 2011Mills, S. J., Kampf, A. R., Sejkora, J., Adams, P. M., Birch, W. D., Plášil, J. (2011) Iangreyite: a new secondary phosphate mineral closely related to perhamite. Mineralogical Magazine, 75 (2) 327-336 doi:10.1180/minmag.2011.075.2.327 DOI: 10.1180/minmag.2011.075.2.327
  3. 2013(2013) Iangreyite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2022Keck, Erich, Grey, Ian E., MacRae, Colin M., Boer, Stephanie, Hochleitner, Rupert, Rewitzer, Christian, Mumme, William G., Glenn, A. Matt, Davidson, Cameron (2022) New secondary phosphate mineral occurrences and their crystal chemistry, at the Hagendorf Süd pegmatite, Bavaria. European Journal of Mineralogy, 34 (5) 439-450 doi:10.5194/ejm-34-439-2022 DOI: 10.5194/ejm-34-439-2022
