Iriginite

(UO2)Mo6+2O7 · 3H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Irg
Discovered
1959
Also known as
  • Iriginiet
  • priguinite

Where it forms, where it's found

Geological setting

Granulated albitite, with U-Mo minerals.

Type locality
Aleksandrovskii Golets Mo-U occurrence
  1. Torgo River Basin
  2. Chara and Tokko Rivers Confluence
  3. Aldan Shield
  4. Russia

56.7803°, 119.3633°

23recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789101 – 2/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Canary yellow
Streak
Light yellow

Optical

Optical type
Biaxial (-) · 2V measured = 60° · 2V calc = 58 – 90°
Refractive index
1.73 – 1.936
Surface relief
Very high
Principal indices
nα 1.73 – 1.764 · nβ 1.82 – 1.889 · nγ 1.93 – 1.936
Dispersion
r > v
Michel-Lévy diagramhighlighted lineδ = 0.1860
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1860 nm4th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1860 nm
Order4th order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#62
Cell parameters
a = 12.77 Å · b = 6.71 Å · c = 11.53 Å
Ratio a:b:c
1 : 0.525 : 0.903
Z
4
Type-locality form

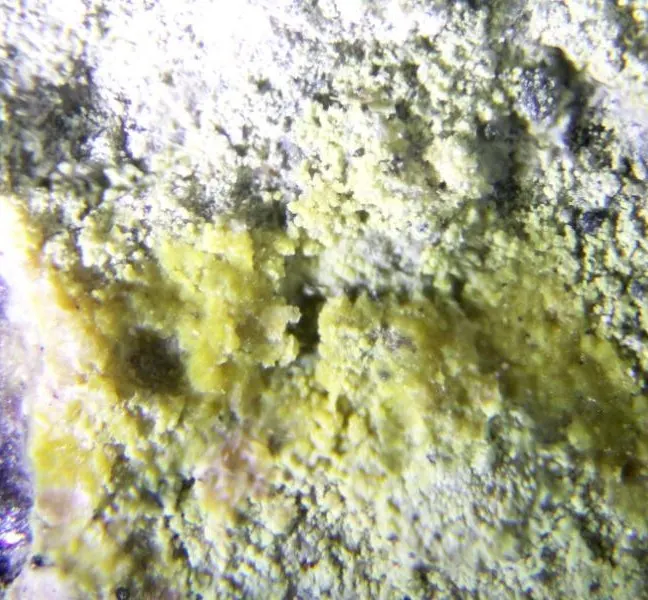

Very fine-grained dense yellow aggregates, sometimes forming pseudomorphs after brannerite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium1238.029238.029
37.91%
8OOxygenOxygen1215.999191.988
30.57%
42MoMolybdenumMolybdenum295.950191.900
30.56%
1HHydrogenHydrogen61.0086.048
0.96%
Total627.965100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Iriginiet
  • priguinite

In other languages

German
Iriginit
Italian
Iriginite

Classification

Strunz
10th ed.

4.GB.60

  • 4OxidesClass
  • 4.GUranyl HydroxidesDivision
  • 4.GBWith additional cations (K, Ca, Ba, Pb, etc.); with mainly UO2(O,OH)5 pentagonal polyhedraGroup
  • 4.GB.60IriginiteSpecies
Dana
8th ed.

49.02.03.01

  • 49Hydrated Molybdates and TungstatesClass
  • 49.02Hydrated Normal Molybdates and TungstatesType
  • 49.02.03— unnamed intermediate level —Group
  • 49.02.03.01IriginiteSpecies
CIM

27.3.7

  • 27Sulphites, Chromates, Molybdates and TungstatesClass
  • 27.3MolybdatesGroup
  • 27.3.7IriginiteSpecies

Literature, links & citation

Citations
  1. Materialy VSEGEI: 45: 117-124.
  2. Doklady Akademii Nauk SSSR: 210: 873-876.
  3. 1957Soboleva, M.V., Pudovkina, I.A. (1957) Iriginite. in Mineraly Urana, Spravochnik (Uranium Minerals Handbook), (Moscow): 249-251.
  4. 1958Fleischer, M. (1958) New Mineral Names. American Mineralogist, 43 (3-4). 378-387
  5. 1959Epshtein, G.Y. (1959) On the molybdates of uranium — moluranite and iriginite. Zapiski Vsesoyuznogo Mineralogicheskogo Obshchestva: 88(5): 564-570.
