Jennite

Ca9(Si3O9)2(OH)6 · 8H2O
IMA status
  • Approved
IMA symbol
Jnn
Discovered
1966
Also known as
  • IMA1965-021
  • Jenniet

Where it forms, where it's found

Geological setting

Late stage mineral in skarn.

Type locality
Crestmore quarries
  1. Crestmore
  2. Jurupa Valley
  3. Riverside County
  4. California
  5. USA

34.0248°, -117.3836°

21recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
White
Streak
White
Cleavage
Distinct/Good

Distinct on (001)

Density
2.32 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 74° · 2V calc = 72 – 74°
Refractive index
1.548 – 1.571
Surface relief
Moderate
Principal indices
nα 1.548 – 1.552 · nβ 1.562 – 1.564 · nγ 1.570 – 1.571
Birefringence
0.022
Pleochroism
Non-pleochroic
Dispersion
r < v strong
Extinction
X ⊥ {001} cleavage; Y ∧ b = 35°-40°.
UV response
May fluoresce dull white shortwave, brighter in LED longwave.
Michel-Lévy diagramhighlighted lineδ = 0.0220
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]220 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation220 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 10.576(2) Å · b = 7.265(2) Å · c = 10.931(3) Å
Cell angles
α = 101.30(1) ° · β = 96.98(1) ° · γ = 109.65(1) °
Ratio a:b:c
1 : 0.687 : 1.034
Z
1

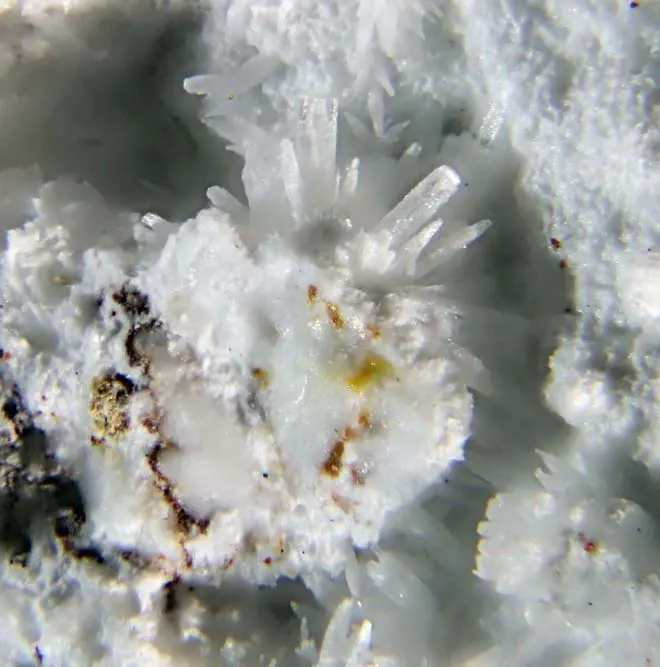

Morphology

Blade shaped crystals, fibrous aggregates.

Type-locality form

White fibrous vein filling, composed of small blade-shaped crystals or fibrous aggregates.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3215.999511.968
48.15%
20CaCalciumCalcium940.078360.702
33.92%
14SiSiliconSilicon628.085168.510
15.85%
1HHydrogenHydrogen221.00822.176
2.08%
Total1063.356100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Fe
  • Mn
  • Mg
  • Na
  • K
  • P

Synonyms

  • IMA1965-021
  • Jenniet

In other languages

French
Jennite
German
IMA 1965-021 · Jennit
Spanish
Jennita
Italian
Jennite
Chinese
羟硅钠钙石
Hindi
जेन्नाइट

Classification

Strunz
10th ed.

9.DG.20

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DGInosilicates with 3-periodic single and multiple chainsGroup
  • 9.DG.20JenniteSpecies
Dana
8th ed.

56.02.04.11

  • 56Sorosilicates Si2o7 Groups, with Additional O, Oh, F and H2oClass
  • 56.02Si2O7 Groups and O, OH, F, and H2O with cations in [4] and/or >[4] coordinationType
  • 56.02.04Cuspidine - Wohlerite groupGroup
  • 56.02.04.11JenniteSpecies
CIM

14.5.27

  • 14Silicates not Containing AluminumClass
  • 14.5Silicates of CaGroup
  • 14.5.27JenniteSpecies

Literature, links & citation

Citations
  1. 1966Carpenter, A. B., Chalmers, R. A., Gard, J. A., Speakman, K., Taylor, H. F. W. (1966) Jennite, a new mineral. American Mineralogist, 51 (1-2) 56-74
  2. 1977Gard, J. Alan, Taylor, Harry F. W., Cliff, Graham, Lorimer, Gordon W. (1977) A reexamination of jennite. American Mineralogist, 62 (3-4) 365-368
  3. 2004Bonaccorsi, E., Merlino, S., Taylor, H.F.W. (2004) The crystal structure of jennite, Ca9Si6O18(OH)6·8H2O. Cement and Concrete Research, 34 (9). 1481-1488 doi:10.1016/j.cemconres.2003.12.033DOI: 10.1016/j.cemconres.2003.12.033
  4. 2013(2013) Jennite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2016Müller, Dirk, Hochleitner, Rupert, Fehr, Karl Thomas (2016) Raman spectroscopic investigations of natural jennite from Maroldsweisach, Bavaria, Germany. Journal of Raman Spectroscopy, 47 (5). 602-606 doi:10.1002/jrs.4865DOI: 10.1002/jrs.4865
