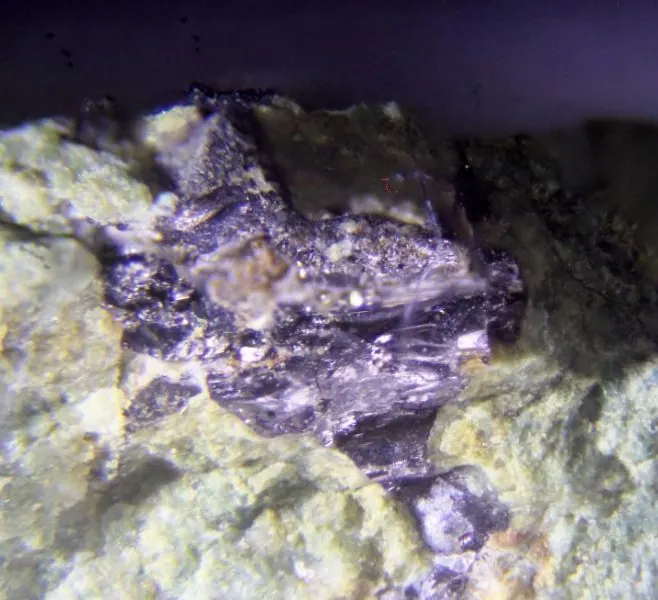

Jeppeite

(K,Ba)2(Ti,Fe3+)6O13
IMA status
  • Approved
IMA symbol
Jep
Discovered
1984
Also known as
  • IMA1980-080
  • Jeppeiet

Where it forms, where it's found

Geological setting

Weathered lamproite plug.

Type locality
Walgidee Hills
  1. Noonkanbah Station
  2. Derby-West Kimberley Shire
  3. Western Australia
  4. Australia

-18.3095°, 124.8572°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Black
Streak
pale brown
Tenacity
brittle
Cleavage
Perfect

Perfect on (100); good on (201).

Density
3.94 g/cm³

Optical

Optical type
Biaxial
Refractive index
2.13 – 2.35
Surface relief
Very high
Principal indices
nα 2.13 · nβ 2.21 · nγ 2.35
Birefringence
weak
Pleochroism
Strong

X = Capri blue; Y = dark greenish brown to almost opaque; Z = dark olive-buff.

Dispersion
strong
Optical colour
gray
Bireflectance
weak
Internal reflections
pale golden
Michel-Lévy diagramhighlighted lineδ = 0.2200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]2200 nm4th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation2200 nm
Order4th order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 15.453(2) Å · b = 3.8368(7) Å · c = 9.123(2) Å
Cell angles
β = 99.25(1) °
Ratio a:b:c
1 : 0.248 : 0.590
Z
2
Type-locality form

Plentiful and prismatic to acicular crystals up to 2 x 2 mm in size. Also as fragile aggregates closely associated with and overgrown on priderite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
26FeIronIron655.845335.070
28.32%
22TiTitaniumTitanium647.867287.202
24.28%
56BaBariumBarium2137.327274.654
23.21%
8OOxygenOxygen1315.999207.987
17.58%
19KPotassiumPotassium239.09878.196
6.61%
Total1183.109100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1980-080
  • Jeppeiet

In other languages

German
IMA 1980-080 · Jeppeit
Italian
Jeppeite
Chinese
钾钛石

Classification

Strunz
10th ed.

4.CC.50

  • 4OxidesClass
  • 4.CMetal: Oxygen = 2: 3,3: 5, and similarDivision
  • 4.CCWith large and medium-sized cationsGroup
  • 4.CC.50JeppeiteSpecies
Dana
8th ed.

08.07.09.01

  • 08Multiple Oxides Containing Niobium, Tantalum or TitaniumClass
  • 08.07MiscellaneousType
  • 08.07.09— unnamed intermediate level —Group
  • 08.07.09.01JeppeiteSpecies
CIM

7.9.28

  • 7Oxides and HydroxidesClass
  • 7.9Oxides of TiGroup
  • 7.9.28JeppeiteSpecies

Group, growth & confusion

In the same group
2 members
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1962Cid-Dresdner, Hilda; Buerger, M. J. (1962) The crystal structure of potassium hexatitanate K2Ti6O13. Zeitschrift für Kristallographie, 117 (5-6). 411-430 doi:10.1524/zkri.1962.117.5-6.411 DOI: 10.1524/zkri.1962.117.5-6.411
  2. 1977Bagshaw, A.N.; Doran, B.H.; White, A.H.; Willis, A.C. (1977) Crystal structure of a natural potassium-barium hexatitanate isostructural with K2Ti6O13. Australian Journal of Chemistry, 30 (6). 1195-1200 doi:10.1071/ch9771195DOI: 10.1071/ch9771195
  3. 1984Pryce, M. W., Hodge, L. C., Criddle, A. J. (1984) Jeppeite, a new K-Ba-Fe titanate from Walgidee Hills, Western Australia. Mineralogical Magazine, 48 (347) 263-266 doi:10.1180/minmag.1984.048.347.11 DOI: 10.1180/minmag.1984.048.347.11
  4. 1985Dunn, Pete J., Fleischer, Michael, Langley, Richard H., Shigley, James E., Zilczer, Janet A. (1985) New mineral names. American Mineralogist, 70 (7-8) 871-881
  5. 1985Birch, W.D. (1985) A note on large crystals of priderite, jeppeite, wadeite and other minerals from Walgidee Hills, Western Australia. Australian Mineralogist: 1: 298-302.
