Juansilvaite

Na5Al3[AsO3(OH)]4[AsO2(OH)2]2(SO4)2 · 4H2O
IMA status
  • Approved
IMA symbol
Jsl
IMA approved
2015
Also known as
  • IMA2015-080
  • Juansilvaiet

Where it forms, where it's found

Geological setting

Secondary alteration mineral

Type locality
Torrecillas mine
  1. Iquique
  2. Iquique Province
  3. Tarapacá
  4. Chile

-20.9767°, -70.1419°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Bright pink (crystals) · dull pale pink (opaque aggregates)
Streak
white
Tenacity
brittle
Cleavage
Very Good

(001)

Density
3.01 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 86° · 2V calc = 86.5°
Refractive index
1.575 – 1.623
Surface relief
Moderate
Principal indices
nα 1.575 · nβ 1.597 · nγ 1.623
Pleochroism

Shades of pale pink (X > Y ≈ Z)

Dispersion
slight (r < v)
Notes

2V = 86o; orientation: X = b; Z ^ c = 27o in the obtuse angle β

Michel-Lévy diagramhighlighted lineδ = 0.0480
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]480 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation480 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 18.1775(13) Å · b = 8.6285(5) Å · c = 18.5138(13) Å
Cell angles
β = 90.389(6) °
Ratio a:b:c
1 : 0.475 : 1.019
Unit cell volume
2903.7 ų
Z
4
Morphology

Crystals are flattened on (001) and elongated on [100]; observed forms include: (001), (111) and (201)

Type-locality form

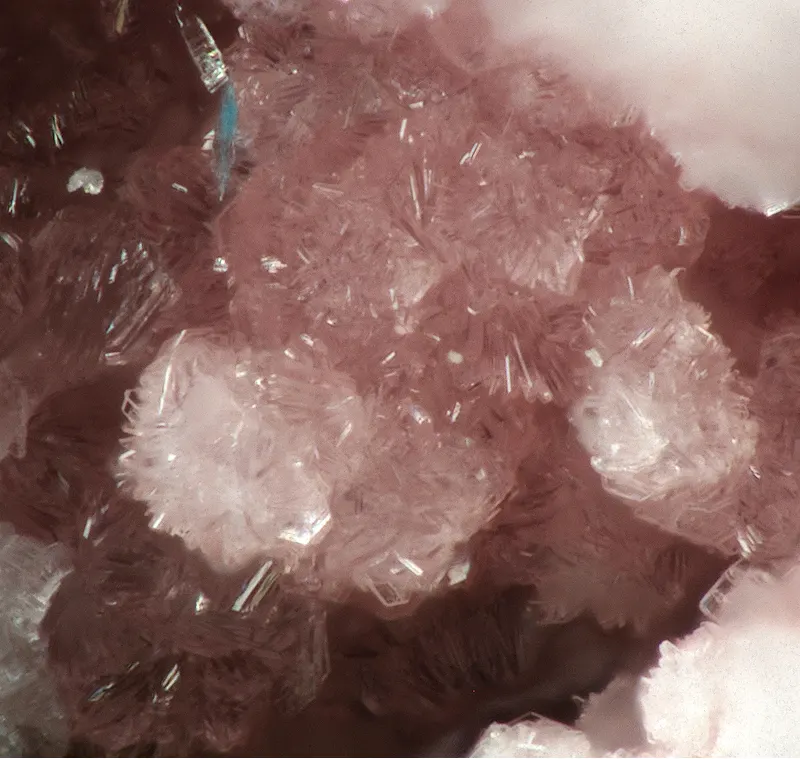

Blades, up to ca. 0.5 mm in length, in tightly intergrown radial aggregates; as opaque rounded aggregates

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3615.999575.964
44.25%
33AsArsenicArsenic674.922449.532
34.53%
11NaSodiumSodium522.990114.950
8.83%
13AlAluminiumAluminium326.98280.946
6.22%
16SSulfurSulfur232.06064.120
4.93%
1HHydrogenHydrogen161.00816.128
1.24%
Total1301.640100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2015-080
  • Juansilvaiet

In other languages

German
IMA 2015-080 · Juansilvait
Spanish
juansilvaíta

Classification

Strunz
10th ed.

8.DO.55

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DOWith CO3, SO4, SiO4Group
  • 8.DO.55JuansilvaiteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 2015Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2015) New minerals and nomenclature modifications approved in 2015, CNMNC Newsletter no 28. Mineralogical Magazine, 79 (7) 1859-1864 doi:10.1180/minmag.2015.079.7.18DOI: 10.1180/minmag.2015.079.7.18
  2. 2017Kampf, Anthony R., Nash, Barbara P., Dini, Maurizio, Molina Donoso, Arturo A. (2017) Juansilvaite, Na5Al3[AsO3(OH)]4[AsO2(OH)2]2(SO4)2·4H2O, a new arsenate-sulfate from the Torrecillas mine, Iquique Province, Chile. Mineralogical Magazine, 81 (3) 619-628 doi:10.1180/minmag.2016.080.113 DOI: 10.1180/minmag.2016.080.113
  3. 2020(2020) Juansilvaite. Handbook of Mineralogy. Mineralogical Society of America
