Jungite

Ca2Zn4Fe3+8(PO4)9(OH)9 · 16H2O
IMA status
  • Approved
IMA symbol
Jun
Discovered
1977
IMA approved
1977
Also known as
  • IMA1977-034
  • Jungiet

Where it forms, where it's found

Geological setting

Late stage mineral in a complex granite pegmatite.

Type locality
Hagendorf South Pegmatite
  1. Hagendorf
  2. Waidhaus
  3. Neustadt an der Waldnaab District
  4. Upper Palatinate
  5. Bavaria
  6. Germany

49.6503°, 12.4597°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789101/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent · Opaque
Colour
Bright yellow to greenish-yellow (Fleischer and Cabri 1981)
Streak
Yellow
Cleavage
Perfect

(010)

Density
2.843 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 60°
Refractive index
1.658 – 1.664
Surface relief
High
Principal indices
nα 1.658 · nβ 1.658 · nγ 1.664
Dispersion
r < v strong
Extinction
Parallel. X = b; Y = a; Z = c.
Michel-Lévy diagramhighlighted lineδ = 0.0060
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]60 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation60 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#16
Cell parameters
a = 11.995(2) Å · b = 24.692(5) Å · c = 9.920(2) Å
Ratio a:b:c
1 : 2.059 : 0.827
Z
2
Morphology

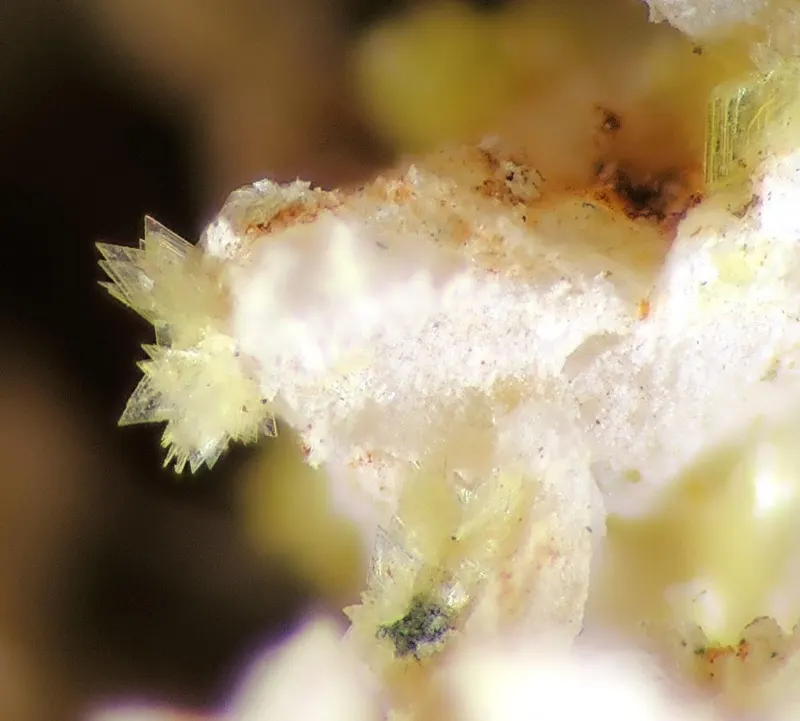

Flakes or as rosettes of thin, sometimes bent, tabular crystals. Forms include (010), (201), and (100).

Type-locality form

Rosettes up to 1 cm in diameter of very thin, tabular, bent crystals.

Comment

The crystal structure of jungite from the Hagendorf Sud pegmatite, Bavaria, has been determined using synchrotron diffraction data collected at the Australian Synchrotron microfocus beamline MX2.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen6115.999975.939
46.82%
26FeIronIron855.845446.760
21.43%
15PPhosphorusPhosphorus930.974278.766
13.37%
30ZnZincZinc465.380261.520
12.55%
20CaCalciumCalcium240.07880.156
3.85%
1HHydrogenHydrogen411.00841.328
1.98%
Total2084.469100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1977-034
  • Jungiet

In other languages

German
IMA 1977-034 · Jungit
Italian
Jungite
Russian
юнгит

Classification

Strunz
10th ed.

8.DJ.25

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DJWith large and medium-sized cations, (OH, etc.):RO4 = 1:1Group
  • 8.DJ.25JungiteSpecies
Dana
8th ed.

42.13.04.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.13MiscellaneousType
  • 42.13.04— unnamed intermediate level —Group
  • 42.13.04.01JungiteSpecies
CIM

19.6.12

  • 19PhosphatesClass
  • 19.6Phosphates of ZnGroup
  • 19.6.12JungiteSpecies

Literature, links & citation

Citations
  1. 1980Fleischer, M., Cabri, L. J., Chao, G. Y., Pabst, A. (1980) New mineral names. American Mineralogist, 65 (9-10). 1065-1070
  2. 1980Moore, P.B., Ito, J. (1980) Jungit und Matulait: Zwei neue taflige Phosphat-Mineralien [Jungite and matualite: Two new tabular phosphate minerals]. Der Aufschluss , 31 (2) 55-61
  3. 1981Fleischer, Michael, Cabri, Louis J. (1981) New Mineral Names. American Mineralogist, 66 (11-12) 1274-1280
  4. 2007(2007) Jungite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2026Grey, Ian E.; Bird, Stephanie; Dušek, Michael; Gable, Robert W.; Mumme, William G.; Hochleitner, Rupert (2026) The crystal structure of jungite, [Ca(H2O)6]2Zn4Fe3+8(PO4)8(OH)12(H2O)4·4H2O, and its dehydration mechanism. Mineralogical Magazine, 90 (2). p.467-471. doi:10.1180/mgm.2025.10145DOI: 10.1180/mgm.2025.10145
