Juonniite

CaMgSc(PO4)2(OH) · 4H2O
IMA status
  • Approved
IMA symbol
Juo
Also known as
  • IMA1996-060
  • Juonniiet

Where it forms, where it's found

Geological setting

Incrustations in cavities and along contacts with ore minerals in metasomatically reworked calcite-phlogopite-clinohumite-magnetite ores in a calcite-dolomite carbonatitic stockwork zone.

Type locality
Kovdor Zheleznyi Mine
  1. Kovdor Massif
  2. Kovdorsky District
  3. Murmansk Oblast
  4. Russia

67.5597°, 30.4258°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 4.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Translucent
Colour
Gray to bright orange
Streak
White
Cleavage
None Observed
Density
2.43 g/cm³

Optical

Optical type
Biaxial (-) · 2V calc = 70°
Refractive index
1.574 – 1.582
Surface relief
Moderate
Principal indices
nα 1.574 · nβ 1.579 · nγ 1.582
Dispersion
none
UV response
None
Michel-Lévy diagramhighlighted lineδ = 0.0080
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]80 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation80 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pbca
Cell parameters
a = 15.03(5) Å · b = 18.95(4) Å · c = 7.59(1) Å
Ratio a:b:c
1 : 1.261 : 0.505
Z
8
Morphology

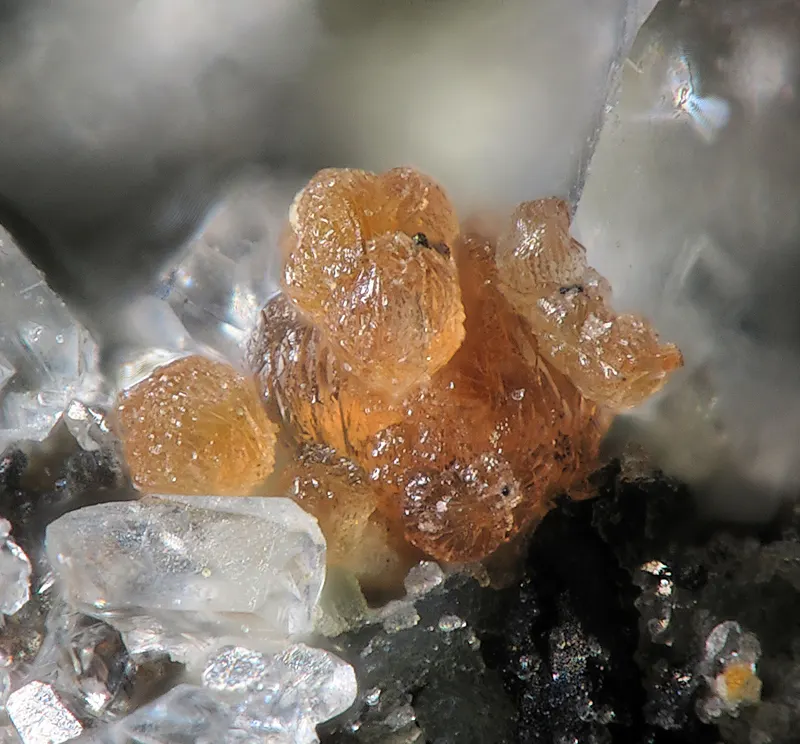

Platy crystals, subparallel, curved, to 12 µm, in spherulites

Type-locality form

Spherulites, to 0.8 mm across, consisting of subparallel, commonly curved, plates up to 12 mm across and 2 mm thick.

Comment

Space Group: by analogy to overite

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1315.999207.987
53.56%
15PPhosphorusPhosphorus230.97461.948
15.95%
21ScScandiumScandium144.95644.956
11.58%
20CaCalciumCalcium140.07840.078
10.32%
12MgMagnesiumMagnesium124.30524.305
6.26%
1HHydrogenHydrogen91.0089.072
2.33%
Total388.346100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1996-060
  • Juonniiet

In other languages

German
IMA 1996-060 · Juonniit
Italian
Juonniite
Russian
Ёнаит

Classification

Strunz
10th ed.

8.DH.20

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DHWith large and medium-sized cations, (OH, etc.):RO4 < 1:1Group
  • 8.DH.20JuonniiteSpecies

Literature, links & citation

Citations
  1. 1997Liferovich, R. P., Yakovenchuk, V. N., Pakhomovsky, Y. A., Bogdanova, A. N., Britvin, S. N. (1997) Juonniite, a new mineral of scandium from dolomitic carbonatites of the Kovdor massif. Zapiski Vserossijskogo Mineralogicheskogo Obshchestva, 126 (4) 80-88
  2. 1998Mandarino, Joseph A. (1998) Abstracts of New Mineral Descriptions. The Mineralogical Record, 29 (5) 467-479
  3. 1998Jambor, J.L., Pertsev, N.N., Roberts, A.C. (1998) New mineral names. American Mineralogist: 83: 907-911.
  4. 2005(2005) Juonniite. Handbook of Mineralogy. Mineralogical Society of America
