Jurbanite

Al(SO4)(OH) · 5H2O
IMA status
  • Approved
IMA symbol
Jur
Discovered
1974
IMA approved
1974
Also known as
  • IMA1974-023
  • Jurbaniet

Where it forms, where it's found

Geological setting

post-mine stalactite

Type locality
San Manuel orebody
  1. San Manuel Mine
  2. Pinal County
  3. Arizona
  4. USA
8recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
colourless
Tenacity
brittle
Cleavage
None Observed
Density
1.786 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 80° · 2V calc = 80°
Refractive index
1.459 – 1.483
Surface relief
Low
Principal indices
nα 1.459 · nβ 1.473 · nγ 1.483
Dispersion
none
Michel-Lévy diagramhighlighted lineδ = 0.0240
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]240 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation240 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 8.3965(6) Å · b = 12.479(2) Å · c = 8.1549(9) Å
Cell angles
β = 101.917(6) °
Ratio a:b:c
1 : 1.486 : 0.971
Z
4
Morphology

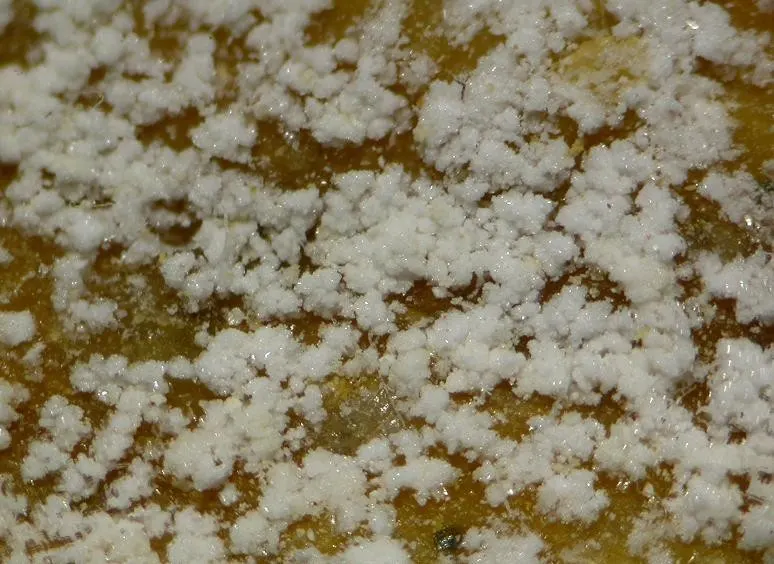

Minute crystals and stalactites.

Type-locality form

small, clear, colorless crystals

Comment

Space Group: P21/n.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
69.52%
16SSulfurSulfur132.06032.060
13.93%
13AlAluminiumAluminium126.98226.982
11.73%
1HHydrogenHydrogen111.00811.088
4.82%
Total230.120100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1974-023
  • Jurbaniet

In other languages

French
jurbanite
German
IMA 1974-023 · Jurbanit
Spanish
Jurbanita
Italian
Jurbanite
Chinese
斜铝矾
Arabic
جوربانيت

Classification

Strunz
10th ed.

7.DB.15

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DBWith only medium-sized cations; insular octahedra and finite unitsGroup
  • 7.DB.15JurbaniteSpecies
Dana
8th ed.

31.09.10.01

  • 31Hydrated Sulfates Containing Hydroxyl or HalogenClass
  • 31.09(AB)(XO4)Zq·xH2OType
  • 31.09.10— unnamed intermediate level —Group
  • 31.09.10.01JurbaniteSpecies
CIM

25.6.2

  • 25SulphatesClass
  • 25.6Sulphates of Al and TlGroup
  • 25.6.2JurbaniteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1976Anthony, John W., McLean, W. John (1976) Jurbanite, a new post-mine aluminum sulfate mineral from San Manuel, Arizona. American Mineralogist, 61 (1-2) 1-4
  2. 1985Sabelli, Cesare (1985) Refinement of the crystal structure of jurbanite, Al(SO4)(OH) · 5H2O. Zeitschrift für Kristallographie - Crystalline Materials, 173 (1) 33-39 doi:10.1524/zkri.1985.173.1-2.33 DOI: 10.1524/zkri.1985.173.1-2.33
  3. 2005(2005) Jurbanite. Handbook of Mineralogy. Mineralogical Society of America
