Kaatialaite

Fe3+[AsO2(OH)2]3 · 5H2O
IMA status
  • Approved
IMA symbol
Kaa
Discovered
1984
Also known as
  • IMA1982-021

Where it forms, where it's found

Geological setting

Granite pegmatite

Type locality
Kaatiala pegmatite
  1. Kuortane
  2. South Ostrobothnia
  3. Finland

62.6799°, 23.4867°

19recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Lustre
Vitreous
Transparency
Translucent
Colour
Pale grey · pale yellow · white · pale blue · greenish blue
Density
2.64 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 15° · 2V calc = 16°
Refractive index
1.573 – 1.636
Surface relief
Moderate
Principal indices
nα 1.573 · nβ 1.574 · nγ 1.636
Dispersion
none
Michel-Lévy diagramhighlighted lineδ = 0.0630
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]630 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation630 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 15.25 Å · b = 19.60 Å · c = 4.72 Å
Cell angles
β = 91.8 °
Ratio a:b:c
1 : 1.285 : 0.310

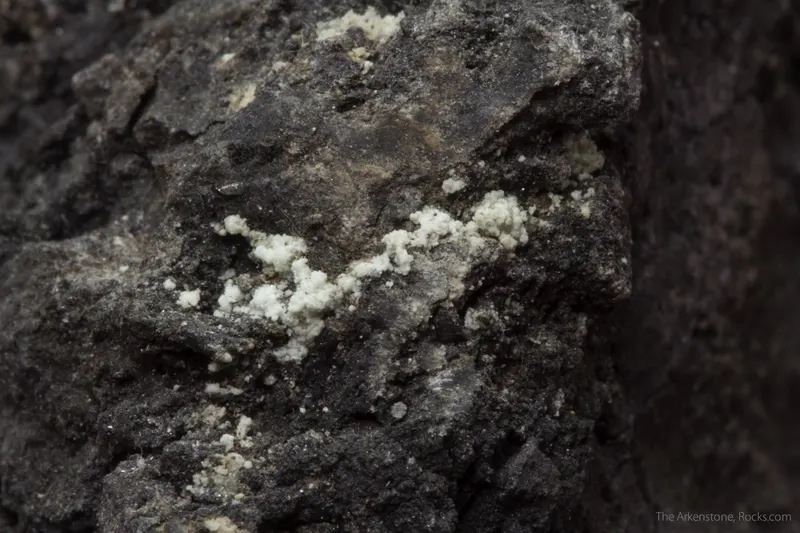

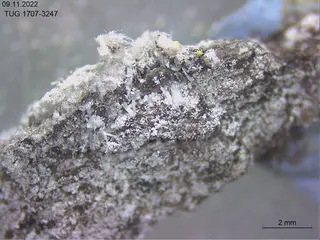

Morphology

Acicular; powder coatings.

Type-locality form

Acicular aggregates and powdery coatings on löllingite.

Comment

Space group (P21/n) and cell data for synthetic material (Boudjada & Guitel, 1981). Raade et al. (1984) suggest space group P21 or P21/m. Water content appears to vary, and therefore also unit-cell parameters (Raade et al., 1984).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1715.999271.983
47.82%
33AsArsenicArsenic374.922224.766
39.52%
26FeIronIron155.84555.845
9.82%
1HHydrogenHydrogen161.00816.128
2.84%
Total568.722100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1982-021

In other languages

French
kaatialaite
German
IMA1982-021 · Kaatialait
Italian
Kaatialaite
Arabic
كاأيشليت · كاتيالايت · كاتياليت

Classification

Strunz
10th ed.

8.CC.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CCWith only medium-sized cations, RO4:H2O = 1:1.5Group
  • 8.CC.10KaatialaiteSpecies
Dana
8th ed.

39.03.09.01

  • 39Hydrated Acid Phosphates, Arsenates and VanadatesClass
  • 39.03MiscellaneousType
  • 39.03.09— unnamed intermediate level —Group
  • 39.03.09.01KaatialaiteSpecies
CIM

20.9.5

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.9Arsenates of FeGroup
  • 20.9.5KaatialaiteSpecies

Literature, links & citation

Citations
  1. 1981Boudjada, A., Guitel, J.C. (1981) Structure cristalline d'un orthoarséniate acide de fer(III) pentahydraté: Fe(H2AsO4)3·5H2O. Acta Crystallographica: B37: 1402-1405.
  2. 1984Raade, Gunnar, Mladeck, Micael H., Kristiansen, Roy, Din, Victor K. (1984) Kaatialaite, a new ferric arsenate mineral from Finland. American Mineralogist, 69 (3-4) 383-387
  3. 1986Schmetzer, K., Medenbach, O. (1986) Kaatialaite from Nieder-Beerbach, Odenwald - a second occurrence. Neues Jahrbuch für Mineralogie - Monatshefte, 1986. 337-342
  4. 1997Ondruš, P., Veselovský, F., Hloušek, J., Skála, R., Vavřín, I., Frýda, J., Čejka, J., Gabašová, A. (1997) Secondary minerals of the Jáchymov (Joachimsthal) ore district. Journal of the Czech Geological Society, 42 (4). 3-69
  5. 2005(2005) Kaatialaite. Handbook of Mineralogy. Mineralogical Society of America
