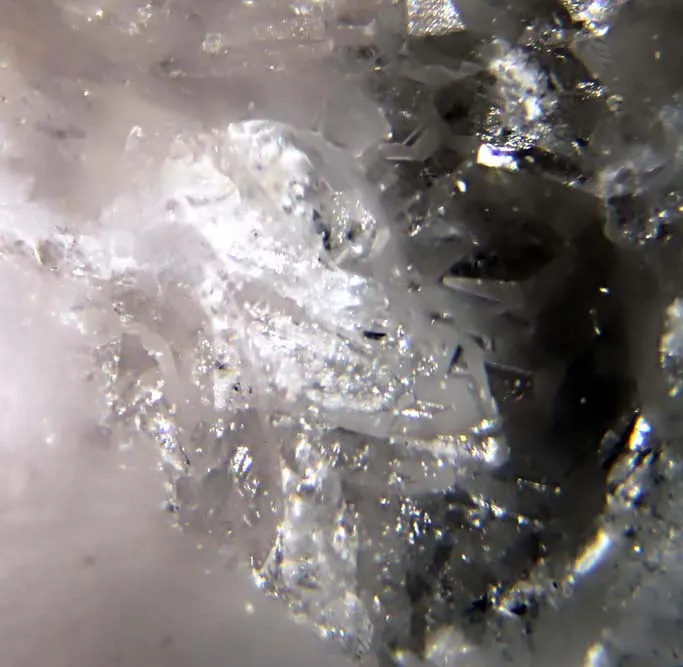

Kaliborite

KHMg2B12O16(OH)10 · 4H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Kbo
Discovered
1889
Also known as
  • Heintzite
  • Hintzeite
  • Kaliboriet
  • +1 more

Where it forms, where it's found

Type locality
Aschersleben I potash mine
  1. Aschersleben
  2. Salzlandkreis
  3. Saxony-Anhalt
  4. Germany

51.7578°, 11.4794°

10recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 4.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless · white · reddish brown · colourless in transmitted light.
Streak
White
Cleavage
Perfect

(001) and (101); on (100) good.

Density
2.05 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 80° · 2V calc = 82°
Refractive index
1.5081 – 1.55
Surface relief
Moderate
Principal indices
nα 1.5081 · nβ 1.5255 · nγ 1.55
Dispersion
none
Michel-Lévy diagramhighlighted lineδ = 0.0419
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]419 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation419 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#10
Cell parameters
a = 18.57 Å · b = 8.46 Å · c = 14.68 Å
Cell angles
β = 100.02 °
Ratio a:b:c
1 : 0.456 : 0.791
Morphology

Fine-grained nodular masses. Microscopic rhombic scales with plane angles of about 62°, with the acute angle truncated to yield a hexagonal outline at times. Crystals frequently aggregated and with asymmetrical development.

Type-locality form

Nodules

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3015.999479.970
66.98%
5BBoronBoron1210.810129.720
18.10%
12MgMagnesiumMagnesium224.30548.610
6.79%
19KPotassiumPotassium139.09839.098
5.46%
1HHydrogenHydrogen191.00819.152
2.67%
Total716.550100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Heintzite
  • Hintzeite
  • Kaliboriet
  • Paternoite

In other languages

German
Kaliborit
Spanish
kaliborita
Italian
Kaliborite

Classification

Strunz
10th ed.

6.FB.10

  • 6BoratesClass
  • 6.FHexaboratesDivision
  • 6.FBIno-hexaboratesGroup
  • 6.FB.10KaliboriteSpecies
Dana
8th ed.

26.05.13.01

  • 26Hydrated Borates Containing Hydroxyl or HalogenClass
  • 26.05PentaboratesType
  • 26.05.13— unnamed intermediate level —Group
  • 26.05.13.01KaliboriteSpecies
CIM

9.2.16

  • 9BoratesClass
  • 9.2Borates of Be and MgGroup
  • 9.2.16KaliboriteSpecies

Literature, links & citation

Citations
  1. 1889Feit, W. (1889): Ueber Kaliborit, ein neues Borsäure-Mineral.- Chemiker-Zeitung 13, 1188
  2. 1889Luedecke (1889) Zeitschrift für Naturwissenschaften, Halle: 62: 354 (as Heintzite).
  3. 1890Feit, W. (1890) Journal of the Chemical Society, London: 58: 341.
  4. 1891Milch, L. (1891) Ueber ein neues krystallisirtes Borat von Stassfurt. Zeitschrift für Krystallographie und Mineralogie, 18 (1). 478-480 doi:10.1524/zkri.1891.18.1.478DOI: 10.1524/zkri.1891.18.1.478
  5. 1891Luedecke, Otto (1891) Ueber Heintzit, ein neues Borat von Leopoldshall. Zeitschrift für Krystallographie, Mineralogie und Petrographie, 18 (1). 481-485 doi:10.1524/zkri.1891.18.1.481DOI: 10.1524/zkri.1891.18.1.481
