Kamphaugite-(Y)

CaY(CO3)2(OH) · H2O
IMA status
  • Approved
IMA symbol
Khg-Y
IMA approved
1987
Also known as
  • Calciotengerite
  • IMA1987-043
  • Kamphaugiet-(Y)

Where it forms, where it's found

Geological setting

In cavities of a magnetite-helvite skarn deposit.

Type locality
Hørtekollen
  1. Sylling
  2. Lier
  3. Buskerud
  4. Norway

59.9106°, 10.2587°

26recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
White to colorless

Spherules may be pale yellow to brown

Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven

Optical

Optical type
Biaxial (-) · 2V measured = 15°
Refractive index
1.627 – 1.663
Surface relief
Moderate
Principal indices
nα 1.627 · nβ 1.663 · nγ 1.663 · nε 1.627
Pleochroism
Non-pleochroic
Dispersion
not observed
Notes

The mineral from Hørtekollen is anomalously biaxial with 2V (-)approximately equal to 15.

Michel-Lévy diagramhighlighted lineδ = 0.0360
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]360 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation360 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
P41 21 2
Cell parameters
a = 7.434 Å · c = 21.793 Å
Unit cell volume
1205.2 ų
Z
8
Morphology

Forms observed: (001) and probably (100) and (110)

Type-locality form

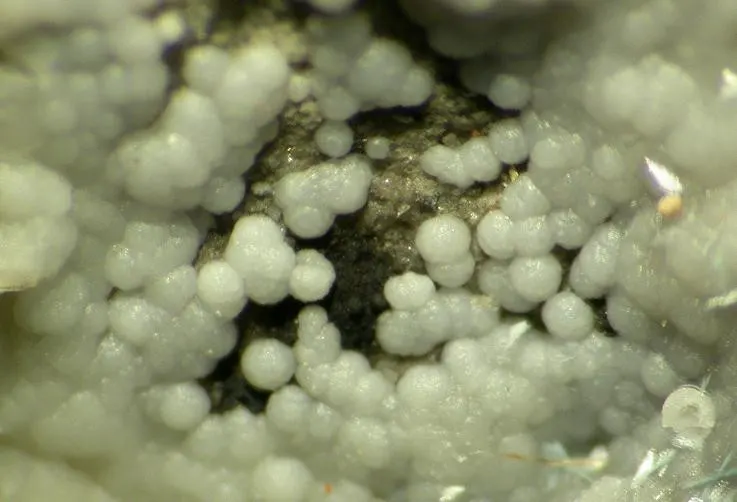

Platy crystals up to 1 mm across forming divergent or rose-like aggregates, sometimes small spherules.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen815.999127.992
45.06%
39YYttriumYttrium188.90688.906
31.30%
20CaCalciumCalcium140.07840.078
14.11%
6CCarbonCarbon212.01124.022
8.46%
1HHydrogenHydrogen31.0083.024
1.07%
Total284.022100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Calciotengerite
  • IMA1987-043
  • Kamphaugiet-(Y)

In other languages

German
IMA 1987-043 · Kamphaugit-(Y)
Italian
Kamphaugite- · Kamphaugite-(Y)
Portuguese
IMA1987-043 · Kamphaugita-(Y)

Classification

Strunz
10th ed.

5.DC.10

  • 5CarbonatesClass
  • 5.DCarbonates with additional anions, with H2ODivision
  • 5.DCWith large cationsGroup
  • 5.DC.10Kamphaugite-(Y)Species
Dana
8th ed.

16b.01.07.01

  • 16bHydrated Carbonates Containing Hydroxyl or HalogenClass
  • 16b.01AmBn(XO3)pZqxH2O & with (m+n):p = 1:1Type
  • 16b.01.07— unnamed intermediate level —Group
  • 16b.01.07.01Kamphaugite-(Y)Species

Literature, links & citation

Citations
  1. 1961Stepanov, A.V. (1961) New and rare minerals in alkaligranites of Kazakhstan (in Russian). Trudy Kazakhskogo Nauchno-Issledovatelskogo Instituta Mineralnogo Syrya: 5: 147-161. [as tengerite]
  2. 1972Hogarth, D.D. (1972) The Evans-Lou Pegmatite, Quebec: - A Unique Yttrium-Niobium-Bismuth-Vanadium Mineral Assemblage. The Mineralogical Record, 3 (2) 69-77
  3. 1974Mineev, D.A. (1974) Lantanoidy v rudakh redkozemelnykh i kompleksnykh mestorozhdenii (Lanthanoids in rare earth ores and in complex places of origin). Nauka, Moscow, 240 pp. [as calciotengerite]
  4. 1993Raade, Gunnar, Brastad, Kjartan (1993) Kamphaugite-(Y), a new hydrous Ca-(Y,REE)-carbonate mineral. European Journal of Mineralogy, 5 (4) 679-684 doi:10.1127/ejm/5/4/0679DOI: 10.1127/ejm/5/4/0679
  5. 1993Rømming, Christian, Kocharian, Armen K., Raade, Gunnar (1993) The crystal structure of kamphaugite-(Y) European Journal of Mineralogy, 5 (4) 685-690 doi:10.1127/ejm/5/4/0685DOI: 10.1127/ejm/5/4/0685
