Karlite

(Mg,Al)6.5(BO3)3(OH)4(◻,Cl)0.5
IMA status
  • Approved
IMA symbol
Ka
Discovered
1980
IMA approved
1980
Also known as
  • IMA1980-030
  • Karliet

Where it forms, where it's found

Geological setting

Clinohumite-chlorite marble

Type locality
Furtschaglkar
  1. Finkenberg
  2. Schwaz District
  3. Tyrol
  4. Austria

47.0051°, 11.7615°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
White to light green
Streak
White
Cleavage
Perfect

(001)

Density
2.80 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 22 – 25° · 2V calc = 22°
Refractive index
1.589 – 1.634
Surface relief
Moderate
Principal indices
nα 1.589 · nβ 1.632 · nγ 1.634
Dispersion
none
Michel-Lévy diagramhighlighted lineδ = 0.0450
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]450 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation450 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#43
Cell parameters
a = 17.965(1) Å · b = 17.631(1) Å · c = 3.1041(2) Å
Ratio a:b:c
1 : 0.981 : 0.173
Z
4
Type-locality form

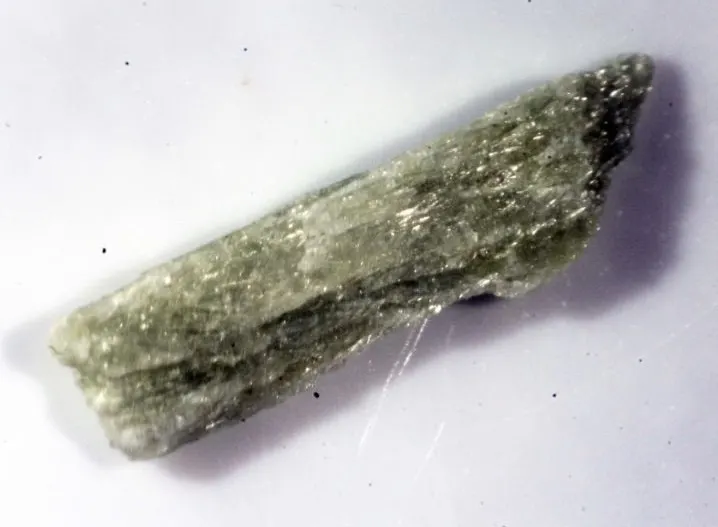

Aggregates of minute needles and prisms elongated parallel to c, up to 10 mm long. Sometimes in rosette-like forms. At a first glance it resembles tremolite-actinolite.

Crystal structure

Synonyms

  • IMA1980-030
  • Karliet

In other languages

French
Karlite
German
IMA 1980-030 · Karlit
Spanish
Karlita
Italian
Karlite
Russian
Карлит

Classification

Strunz
10th ed.

6.AB.25

  • 6BoratesClass
  • 6.AMonoboratesDivision
  • 6.ABBO3, with additional anions; 1(D) + OH, etc.Group
  • 6.AB.25KarliteSpecies
CIM

10.1.6

  • 10Borates with other anionsClass
  • 10.1Borates with halideGroup
  • 10.1.6KarliteSpecies

Literature, links & citation

Citations
  1. 1981Franz, Gerhard, Ackermand, Dietrich, Koch, Eddie (1981) Karlite, Mg7(BO3)3(OH,Cl)5, a new borate mineral and associated ludwigite from the Eastern Alps. American Mineralogist, 66 (7-8) 872-877
  2. 1986Bonazzi, P., Menchetti, S., Sabelli, C., Trosti-Ferroni, R. (1986) Karlite: crystal structure and chemical composition. Neues Jahrbuch für Mineralogie - Monatshefte, 1986. 253-262
  3. 1996Grew, Edward S.; Anovitz, Lawrence M. - Eds. (1996) Boron - Mineralogy, Petrology and Geochemistry. Reviews in Mineralogy Vol. 33. Mineralogical Society of America p.862
  4. 2005(2005) Karlite. Handbook of Mineralogy. Mineralogical Society of America
