Karlleuite

Ca2MnO4
IMA status
  • Approved
IMA symbol
Kll
Discovered
1980
Also known as
  • Karlleuiet

Where it forms, where it's found

Geological setting

found in the xenolith sample within the basaltic lava from the Caspar quarry

Type locality
Caspar quarry
  1. Ettringen
  2. Vordereifel
  3. Mayen-Koblenz
  4. Rhineland-Palatinate
  5. Germany

50.3525°, 7.2335°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
brown

varying degrees of saturation from darker to lighter brown

Streak
light brown
Tenacity
brittle
Cleavage
Distinct/Good

good (001)

Fracture
Irregular/Uneven
Density
3.79 g/cm³

Optical

Optical colour
light grey
Anisotropism
weak anisotropy under crossed polarisers
Tropism
Anisotropic
Reflectance R%
(14.7–14.3) 470, (13.5–12.8) 546, (13.2–13.0) 589, (13.5–13.3) 650
UV response
none

Crystallography

Crystal system
Tetragonal
Space group
I4/mmm
Cell parameters
a = 3.7683(2) Å · c = 11.9893(8) Å
Z
2
Type-locality form

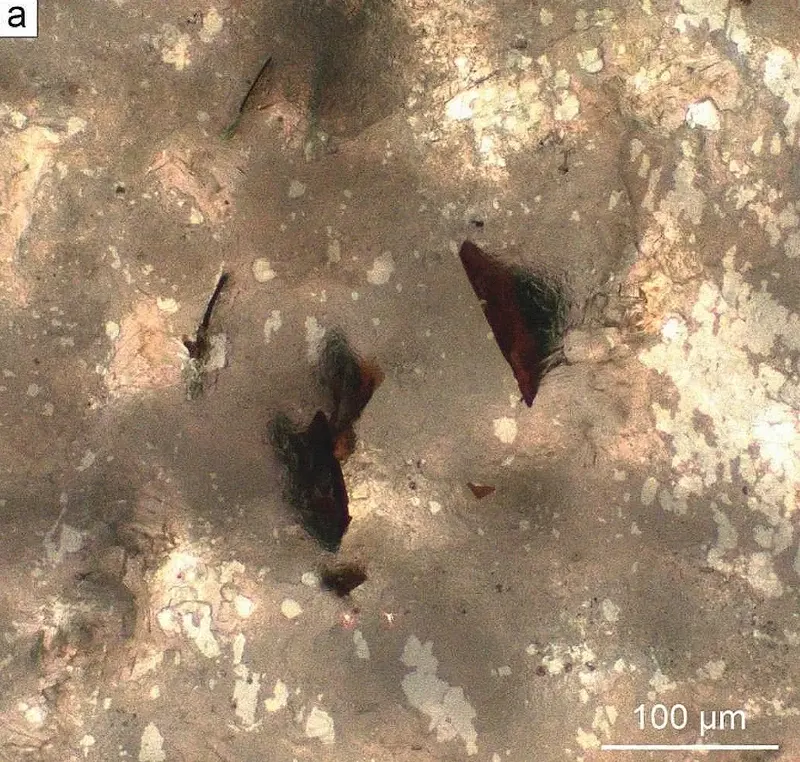

thin tabular/plate crystals, which range from 40 to 80 μm in diameter

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
20CaCalciumCalcium240.07880.156
40.26%
8OOxygenOxygen415.99963.996
32.14%
25MnManganeseManganese154.93854.938
27.60%
Total199.090100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From Mindat formula

Synonyms

  • Karlleuiet

In other languages

German
Karlleuit

Classification

Strunz
10th ed.

4.BC.5

  • 4OxidesClass
  • 4.BMetal: Oxygen = 3:4 and similarDivision
  • 4.BCWith medium-sized and large cationsGroup
  • 4.BC.5KarlleuiteSpecies

Literature, links & citation

Citations
  1. Juroszek, R., Krüger, B., Cametti, G., Ternes, B., and Blaß, G.: Karlleuite, IMA 2023-102, in: CNMNC Newsletter 78, Eur. J. Mineral., 36, https://doi.org/10.5194/ejm-36-361-2024, 2024.
  2. 2024Juroszek, Rafał, Krüger, Biljana, Cametti, Georgia, Ternes, Bernd, Blaβ, Günter (2024) Karlleuite Ca2MnO4 – a first mineral with the Ruddlesden-Popper type structure from Bellerberg volcano, Germany. Mineralogy and Petrology, 118 (4). 569-580 doi:10.1007/s00710-024-00869-yDOI: 10.1007/s00710-024-00869-y
