Kayupovaite

Na2Mn10[(Si14Al2)O38(OH)8] · 7H2O
IMA status
  • Approved
IMA symbol
Kyp
IMA approved
2022
Also known as
  • IMA2022-045
  • Kayupovaiet

Where it forms, where it's found

Geological setting

complex baryte–lead/iron–manganese deposit. deposit was formed during low-grade metamorphism (∼250 °C, ∼200 MPa) of metalliferous sediments composed of Fe3+ and Mn3+/Mn4+ oxides, carbonates, (alumino)silicates, and organic matter

Type locality
Ushkatyn No. 3 deposit (Ushkatyn-III deposit)
  1. Zhayrem (Zhairem)
  2. Karazhal
  3. Ulytau Region
  4. Kazakhstan

48.2683°, 70.1786°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
light gray
Streak
white
Tenacity
brittle
Cleavage
Perfect
Density
2.76 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 3°
Refractive index
1.551 – 1.586
Surface relief
Moderate
Principal indices
nα 1.551 · nβ 1.586 · nγ 1.586
Extinction
undulatory extinction due to crystal curvature
UV response
non-fluorescent under either short- or long-wave ultraviolet radiation
Michel-Lévy diagramhighlighted lineδ = 0.0350
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]350 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation350 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 24.9149(9) Å · b = 16.4343(5) Å · c = 22.3974(7) Å
Cell angles
β = 94.408(3) °
Ratio a:b:c
1 : 0.660 : 0.899
Z
8
Type-locality form

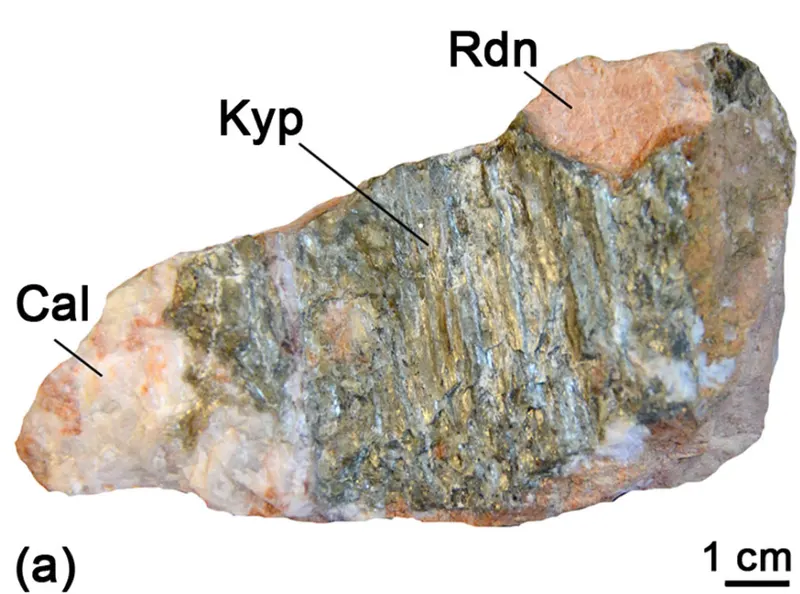

Coarse lamellar (typically bent and split), crystals up to  0.1x0.05x0.02 mm in size, combined into radial, scaly, or lamellar aggregates up to 3x3x0.5  cm and embedded in a calcite–rhodonite matrix.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen5315.999847.947
44.33%
25MnManganeseManganese1054.938549.380
28.72%
14SiSiliconSilicon1428.085393.190
20.56%
13AlAluminiumAluminium226.98253.964
2.82%
11NaSodiumSodium222.99045.980
2.41%
1HHydrogenHydrogen221.00822.176
1.16%
Total1912.637100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2022-045
  • Kayupovaiet

In other languages

German
IMA 2022-045 · Kayupovait

Classification

Strunz
10th ed.

9.EG.75

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EGDouble nets with 6-membered and larger ringsGroup
  • 9.EG.75KayupovaiteSpecies

Literature, links & citation

Citations
  1. 2022Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2022) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 69. European Journal of Mineralogy, 34 (5) 463-468 doi:10.5194/ejm-34-463-2022 DOI: 10.5194/ejm-34-463-2022
  2. 2025Vereshchagin, Oleg S.; Britvin, Sergey N.; Brusnitsyn, Aleksey I.; Shagova, Anastasiia K.; Perova, Elena N.; Pekov, Igor V.; Shilovskikh, Vladimir V.; Vlasenko, Natalia S.; Avdontseva, Evgeniya Y.; Platonova, Natalia V.; et al. (2025) Kayupovaite, Na2Mn10[(Si14Al2)O38(OH)8]⋅7H2O – a new stilpnomelane-related mineral from the Ushkatyn-III deposit, Kazakhstan. European Journal of Mineralogy, 37 (6). 829-840 doi:10.5194/ejm-37-829-2025 DOI: 10.5194/ejm-37-829-2025
