Koninckite

Fe3+(PO4) · 3H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Kon
Discovered
1884
Also known as
  • Koninckiet

Where it forms, where it's found

Geological setting

Secondary mineral in phosphatic sedimentary rocks.

Type locality
Richelle
  1. Visé
  2. Liège
  3. Wallonia
  4. Belgium

50.7171°, 5.6952°

19recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Yellow · light yellow to colourless in transmitted light
Streak
Pale yellow
Cleavage
Distinct/Good

One transverse to elongation.

Density
2.40 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.645 – 1.656
Surface relief
High
Principal indices
nα 1.645 · nβ 1.656 · nγ 1.656
Dispersion
relatively strong
Notes

Uniaxial (+), may be biaxial to nearly isotropic.

Michel-Lévy diagramhighlighted lineδ = 0.0110
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]110 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation110 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#167
Cell parameters
a = 11.9800(5) Å · c = 14.618(1) Å
Z
8
Morphology

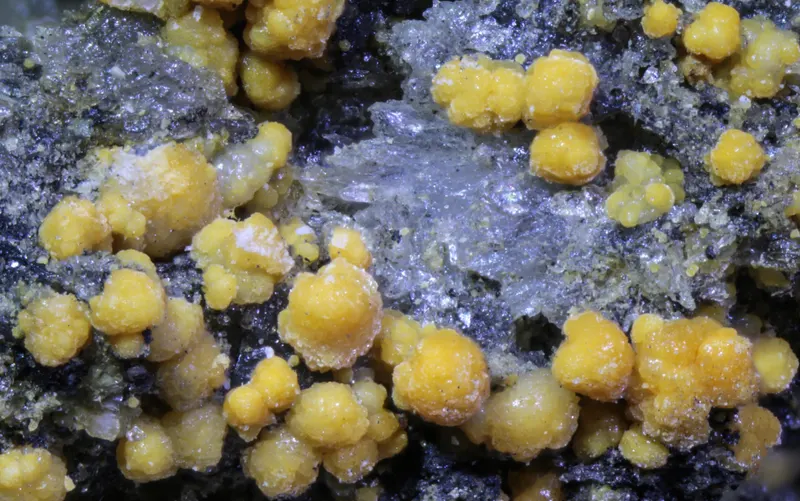

Small spherical aggregates of radiating needles.

Comment

Plášil et al. (2015)

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen715.999111.993
54.67%
26FeIronIron155.84555.845
27.26%
15PPhosphorusPhosphorus130.97430.974
15.12%
1HHydrogenHydrogen61.0086.048
2.95%
Total204.860100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al

Synonyms

  • Koninckiet

In other languages

German
Koninckit
Italian
Koninckite

Classification

Strunz
10th ed.

8.CE.55

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CEWith only medium-sized cations, RO4:H2O about 1:2.5Group
  • 8.CE.55KoninckiteSpecies
Dana
8th ed.

40.04.02.01

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.04(AB)5(XO4)2·xH2OType
  • 40.04.02— unnamed intermediate level —Group
  • 40.04.02.01KoninckiteSpecies
CIM

19.14.28

  • 19PhosphatesClass
  • 19.14Phosphates of Fe and other metalsGroup
  • 19.14.28KoninckiteSpecies

Literature, links & citation

Citations
  1. Van Der Meersche, Eddy, De Paepe, Paul, Stoops, Georges (n.d.) Minerals with Belgian Roots - from hopeite (1824) to tazieffite (2009) Academia Press, Ghent.
  2. Powder Diffraction File (International Center for Diffraction Data) 41-1489.
  3. 1883Cesàro, G. (1883) Sur la koninckite, nouveau phosphate ferrique hydrate. Annales de la Société Géologique de Belgique: 11: 247-257 (in French).
  4. 1884Cesàro, G. (1884) Mémoire traitant de la koninckite, de la formule de la richellite et de l'oxyfluorure de fer. Annales de la Société géologique de Belgique, 11, 247.
  5. 1921Larsen, Esper S. (1921) The microscopic determination of the nonopaque minerals. Bulletin 679. US Geological Survey doi:10.3133/b679 DOI: 10.3133/b679
