Korobitsynite

(Na,◻)4Ti2(Si4O12)(O,OH)2 · 4H2O
IMA status
  • Approved
IMA symbol
Kbi
Also known as
  • IMA1998-019
  • Korobitsyniet
  • UM1997-//-SiO:HNaNbTi
  • +1 more

Where it forms, where it's found

Geological setting

In miarolitic cavities in pegmatite.

Type locality
Karnasurt Mountain
  1. Lovozersky District
  2. Murmansk Oblast
  3. Russia

67.8808°, 34.6817°

5recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
Colorless
Streak
White
Tenacity
brittle
Cleavage
Imperfect/Fair

(001)

Density
2.72 g/cm³

Optical

Optical type
Biaxial (+)
Refractive index
1.646 – 1.763
Surface relief
High
Principal indices
nα 1.646 · nβ 1.654 · nγ 1.763
Dispersion
weak
Michel-Lévy diagramhighlighted lineδ = 0.1170
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1170 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1170 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pbam
Cell parameters
a = 7.349(2) Å · b = 14.164(2) Å · c = 7.130(1) Å
Ratio a:b:c
1 : 1.927 : 0.970
Unit cell volume
742.2 ų
Morphology

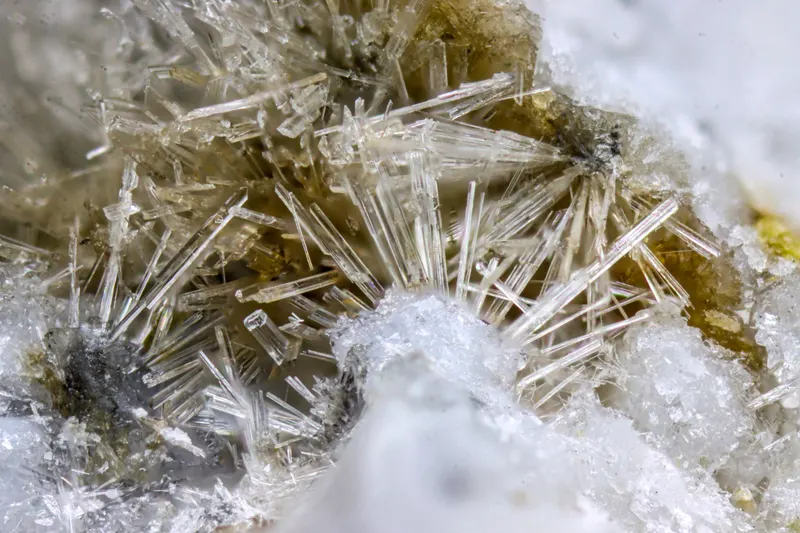

Needle-like crystals. Forms include (110), (001), (010), (100), and (021).

Type-locality form

Prismatic crystals uр to 2 сm.

Crystal structure

Synonyms

  • IMA1998-019
  • Korobitsyniet
  • UM1997-//-SiO:HNaNbTi
  • Unnamed (Ti-analogue of Nenadkevichite)

In other languages

German
IMA 1998-019 · Korobitsynit
Italian
korobitsynite

Classification

Strunz
10th ed.

9.CE.30a

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CE[Si4O12]8- 4-membered single rings (vierer-Einfachringe), without insular complex anionsGroup
  • 9.CE.30aKorobitsyniteSpecies

Group, growth & confusion

In the same group
1 members

Literature, links & citation

Citations
  1. 1999Pekov, I. V., Chukanov, N. V., Khomyakov, A. P., Rastsvetaeva, R. K., Kucherinenko, Y. V., Nedel'ko, V. V. (1999) Korobitsynite, Na3-x(Ti,Nb)2[Si4O12](OH,O)2·3-4H2O, a new mineral from Lovozero massif, Kola Peninsula. Zapiski Vserossijskogo Mineralogicheskogo Obshchestva, 128 (3) 72-79
  2. 2000Jambor, John L., Pertsev, Nikolai N., Roberts, Andrew C. (2000) New Mineral Names. American Mineralogist, 85. 1321-1325
  3. 2002Niedermayr, G., Gault, R. A., Petersen, O. V., Brandstätter, F. (2002) Korobitsynite from the Aris phonolites, Windhoek, Namibia. Neues Jahrbuch für Mineralogie - Monatshefte, 2002 (1) 42-48 doi:10.1127/0028-3649/2002/2002-0042DOI: 10.1127/0028-3649/2002/2002-0042
  4. 2021(2021) Korobitsynite. Handbook of Mineralogy. Mineralogical Society of America
