Krasnoshteinite

Al8[B2O4(OH)2](OH)16Cl4 · 7H2O
IMA status
  • Approved
IMA symbol
Knh
IMA approved
2018
Also known as
  • IMA2018-077
  • Krasnoshteiniet

Where it forms, where it's found

Geological setting

Evaporite deposit

Type locality
Borehole No. 2001
  1. Romanovskiy area
  2. Verkhnekamskoe K deposit
  3. Solikamsk
  4. Solikamsky District
  5. Perm Krai
  6. Russia

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
colorless
Streak
white
Tenacity
brittle
Cleavage
Perfect

perfect cleavage on (010) and an imperfect cleavage on (100).

Fracture
Step-Like
Density
2.11 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 50° · 2V calc = 51°
Refractive index
1.563 – 1.574
Surface relief
Moderate
Principal indices
nα 1.563 · nβ 1.565 · nγ 1.574
Pleochroism
Non-pleochroic
Dispersion
r>v
UV response
None
Michel-Lévy diagramhighlighted lineδ = 0.0110
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]110 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation110 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21
Cell parameters
a = 8.7398(2) Å · b = 8.7398(3) Å · c = 11.3060(3) Å
Cell angles
β = 106.665(2) °
Ratio a:b:c
1 : 1.000 : 1.294
Z
2
Type-locality form

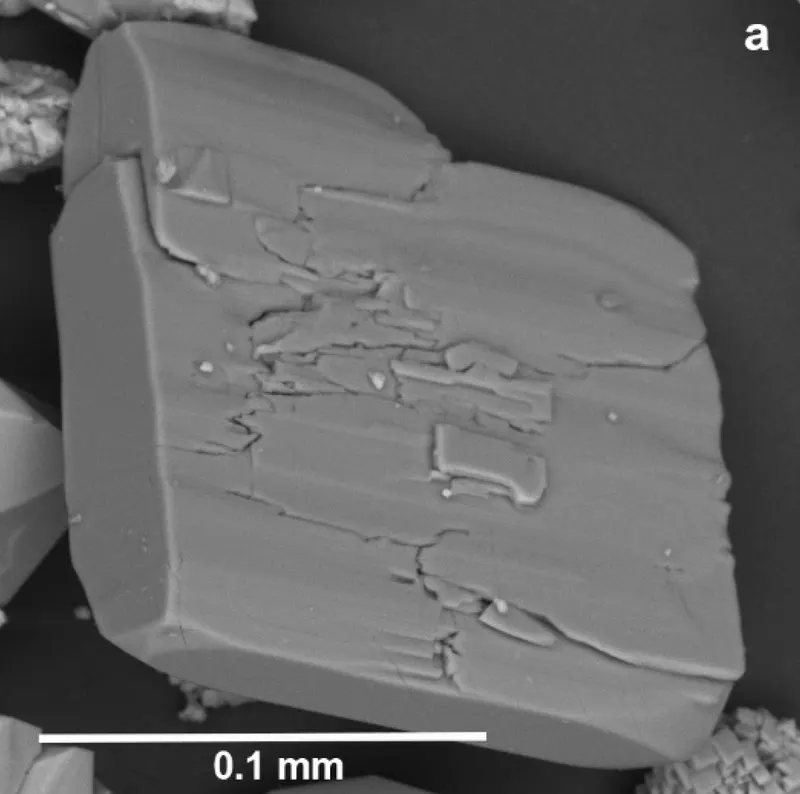

separate tabular to lamellar crystals of up to 0.06 × 0.25 × 0.3 mm and their parallel intergrowths embedded in carnallite and halite.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2915.999463.971
52.99%
13AlAluminiumAluminium826.982215.856
24.66%
17ClChlorineChlorine435.450141.800
16.20%
1HHydrogenHydrogen321.00832.256
3.68%
5BBoronBoron210.81021.620
2.47%
Total875.503100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2018-077
  • Krasnoshteiniet

In other languages

German
IMA 2018-077 · Krasnoshteinit

Classification

Strunz
10th ed.

6.B0.05

  • 6BoratesClass
  • 6.BDiboratesDivision
  • 6.B0— unnamed intermediate level —Group
  • 6.B0.05KrasnoshteiniteSpecies

Literature, links & citation

Citations
  1. 2018Hålenius, Ulf, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2018) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) NEWSLETTER 46. European Journal of Mineralogy, 30 (6) 1181-1189 doi:10.1127/ejm/2018/0030-2819DOI: 10.1127/ejm/2018/0030-2819
  2. 2020Pekov, Igor V., Zubkova, Natalia V., Chaikovskiy, Ilya I., Chirkova, Elena P., Belakovskiy, Dmitry I., Yapaskurt, Vasiliy O., Bychkova, Yana V., Lykova, Inna, Britvin, Sergey N., Pushcharovsky, Dmitry Yu. (2020) Krasnoshteinite, Al8[B2O4(OH)2](OH)16Cl4⋅7H2O, a New Microporous Mineral with a Novel Type of Borate Polyanion. Crystals, 10 (4) 301 doi:10.3390/cryst10040301DOI: 10.3390/cryst10040301
  3. 2022(2022) Krasnoshteinite. Handbook of Mineralogy. Mineralogical Society of America
