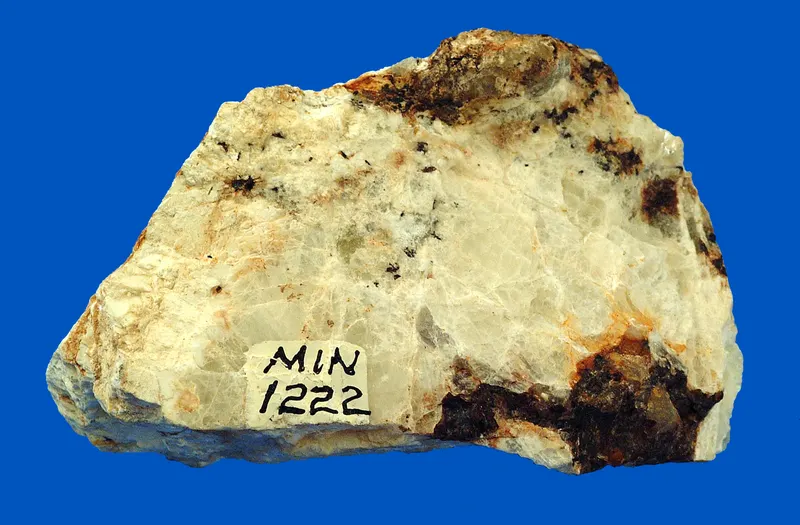

Krauskopfite

BaSi2O5 · 3H2O
IMA status
  • Approved
IMA symbol
Kkp
Discovered
1964
Also known as
  • IMA1964-008
  • Krauskopfiet

Where it forms, where it's found

Type locality
Esquire No. 1 claim
  1. Rush Creek
  2. Big Creek-Rush Creek Mining District
  3. Fresno County
  4. California
  5. USA

36.9736°, -119.2503°

8recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Sub-Vitreous · Pearly
Transparency
Transparent · Translucent
Colour
White to colourless
Streak
White
Cleavage
Perfect

Perfect on (010) and (001) intersecting at 90°, with a third poor cleavage at a high angle to the other two.

Density
3.14 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 88° · 2V calc = 87°
Refractive index
1.574 – 1.599
Surface relief
Moderate
Principal indices
nα 1.574 · nβ 1.587 · nγ 1.599
Dispersion
relatively weak
Extinction
X = b; Y ∧ a = 6°; Z ∧ c = 10.5°. a ∧ c = 94° 32' +/- 8'.
Michel-Lévy diagramhighlighted lineδ = 0.0250
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]250 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation250 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 8.460(5) Å · b = 10.622(6) Å · c = 7.837(4) Å
Cell angles
β = 94.53(1) °
Ratio a:b:c
1 : 1.256 : 0.926
Z
4
Type-locality form

Grains without crystal faces.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
56BaBariumBarium1137.327137.327
41.93%
8OOxygenOxygen815.999127.992
39.08%
14SiSiliconSilicon228.08556.170
17.15%
1HHydrogenHydrogen61.0086.048
1.84%
Total327.537100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Fe
  • Mn
  • Mg
  • Ca
  • Sr
  • K

Synonyms

  • IMA1964-008
  • Krauskopfiet

In other languages

German
IMA 1964-008 · Krauskopfit
Italian
Krauskopfite

Classification

Strunz
10th ed.

9.DH.30

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DHInosilicates with 4-periodic single chains, Si4O12Group
  • 9.DH.30KrauskopfiteSpecies
Dana
8th ed.

74.03.04.02

  • 74Phyllosilicates Modulated LayersClass
  • 74.03Modulated Layers with joined stripsType
  • 74.03.04Ba phyllosilicatesGroup
  • 74.03.04.02KrauskopfiteSpecies
CIM

14.7.2

  • 14Silicates not Containing AluminumClass
  • 14.7Silicates of Ba, Sr and ZnGroup
  • 14.7.2KrauskopfiteSpecies

Literature, links & citation

Citations
  1. 1965Alfors, John T., Stinson, Melvin C., Matthews, Robert A., Pabst, Adolf (1965) Seven new barium minerals from eastern Fresno County, California. American Mineralogist, 50 (3-4) 314-340
  2. 1967Coda, A., dal Negro, A., Rossi, G. (1967) The crystal structure of krauskopfite. Atti della Accademia Nazionale dei Lincei, Serie, 8(42), 859-873.
  3. 1984Alfors, John T., Pabst, Adolf (1984) Titanian taramellites in western North America. American Mineralogist, 69 (3-4) 358-373
  4. 2001(2001) Krauskopfite. Handbook of Mineralogy. Mineralogical Society of America
