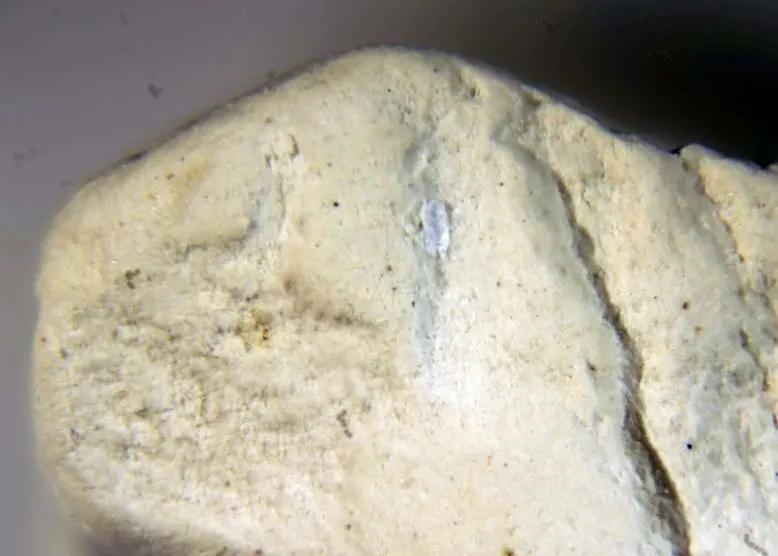

Kribergite

Al5(PO4)3(SO4)(OH)4 · 4H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Kbg
Discovered
1945
Also known as
  • Kribergiet

Where it forms, where it's found

Geological setting

Sulphide deposit

Type locality
Kristineberg Mine
  1. Malå
  2. Västerbotten County
  3. Sweden

65.0657°, 18.5642°

3recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Translucent
Colour
White
Density
1.92 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.484
Surface relief
Low
Principal indices
nβ 1.484 · n 1.484
Birefringence
0.002
Dispersion
r > v to r < v strong
Michel-Lévy diagramhighlighted lineδ = 0.0020
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]20 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation20 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 18.126 Å · b = 13.519 Å · c = 7.5 Å
Cell angles
α = 70.5 ° · β = 117.87 ° · γ = 136.23 °
Ratio a:b:c
1 : 0.746 : 0.414
Z
2
Morphology

Compact massive. Exhibits a felted lamellar to microscopically spherulitic texture.

Type-locality form

Fracture fillings

Comment

Class is either _1 or 1; the space group is either P_1 or P1.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
58.54%
13AlAluminiumAluminium526.982134.910
20.57%
15PPhosphorusPhosphorus330.97492.922
14.16%
16SSulfurSulfur132.06032.060
4.89%
1HHydrogenHydrogen121.00812.096
1.84%
Total655.964100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Kribergiet

In other languages

German
Kribergit
Italian
Kribergite

Classification

Strunz
10th ed.

8.DC.52

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DCWith only medium-sized cations, (OH, etc.):RO4 = 1:1 and < 2:1Group
  • 8.DC.52KribergiteSpecies
Dana
8th ed.

43.05.07.01

  • 43Compound Phosphates, Etc.Class
  • 43.05Hydrated Compound Phosphates, etc·, Containing Hydroxyl or HalogenType
  • 43.05.07— unnamed intermediate level —Group
  • 43.05.07.01KribergiteSpecies
CIM

22.3.12

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.3Phosphates, arsenates or vanadates with sulphatesGroup
  • 22.3.12KribergiteSpecies

Literature, links & citation

Citations
  1. 1945Du Rietz (1945) Geologiska Föeningens I Stockholm. Förhandlinger, Stockholm: 67: 78.
  2. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  3. 1968de Abeledo, M. E. J., Angelelli, V., de Benyacar, M. A. R., Gordillo, C. (1968) Sanjuanite, a new hydrated basic sulfate-phosphate of aluminum. American Mineralogist, 53 (1-2) 1-8
  4. 1989De Bruiyn, H., Beukes, G. J., Van Der Westhuizen, W. A., Tordiffe, E. A. W. (1989) Unit cell dimensions of the hydrated aluminium phosphate–sulphate minerals sanjuanite, kribergite, and hotsonite. Mineralogical Magazine, 53 (371) 385-386 doi:10.1180/minmag.1989.053.371.17 DOI: 10.1180/minmag.1989.053.371.17
  5. 2007(2007) Kribergite. Handbook of Mineralogy. Mineralogical Society of America
