Kruijenite

Ca4Al4(SO4)F2(OH)16 · 2H2O
IMA status
  • Approved
IMA symbol
Kje
Discovered
2016
IMA approved
2018
Also known as
  • IMA2018-057
  • Kruijeniet

Where it forms, where it's found

Geological setting

calcic xenolith from tephra

Type locality
Feuerberg
  1. Hohenfels-Essingen
  2. Gerolstein
  3. Vulkaneifel
  4. Rhineland-Palatinate
  5. Germany

50.2456°, 6.7372°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Pale greenish-yellow to colourless
Streak
White
Tenacity
brittle
Cleavage
None Observed
Density
2.573 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.561 – 1.576
Surface relief
Moderate
Principal indices
nω 1.576 · nε 1.561
Pleochroism
Non-pleochroic
UV response
Not fluorescent with UV excitation
Michel-Lévy diagramhighlighted lineδ = 0.0150
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]150 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation150 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#186
Cell parameters
a = 12.9299(4) Å · c = 5.2791(3) Å
Unit cell volume
882.57 ų
Z
2
Type-locality form

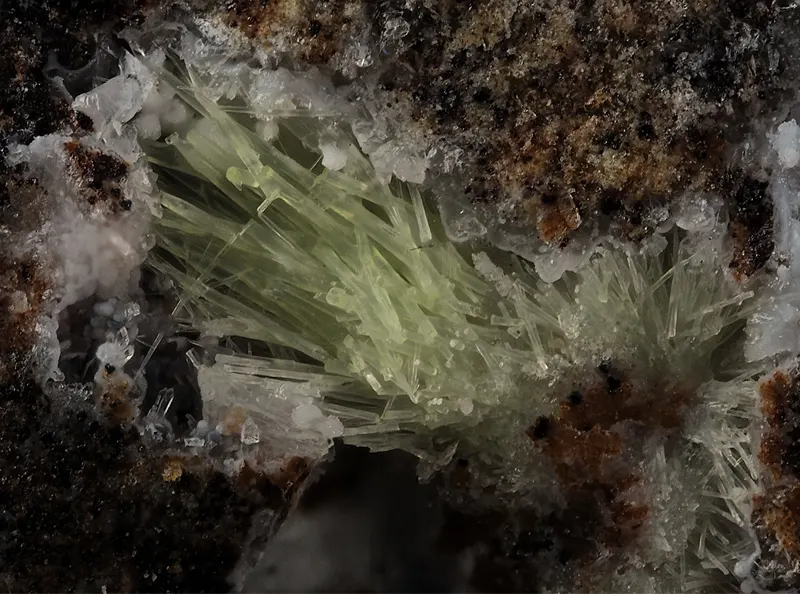

long prismatic tetragonal crystals up to 0.1 mm × 1 mm in cavities typically combined in radiating or random aggregates

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2215.999351.978
49.54%
20CaCalciumCalcium440.078160.312
22.57%
13AlAluminiumAluminium426.982107.928
15.19%
9FFluorineFluorine218.99837.996
5.35%
16SSulfurSulfur132.06032.060
4.51%
1HHydrogenHydrogen201.00820.160
2.84%
Total710.434100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2018-057
  • Kruijeniet

In other languages

German
IMA 2018-057 · Kruijenit

Classification

Strunz
10th ed.

3.CG.30

  • 3HalidesClass
  • 3.CComplex halidesDivision
  • 3.CGAluminofluorides with CO3, SO4, PO4Group
  • 3.CG.30KruijeniteSpecies

Literature, links & citation

Citations
  1. 2018Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2018) CNMNC Newsletter 45, New minerals and nomenclature modifications approved in 2018. Mineralogical Magazine, 82 (5) 1225-1232 doi:10.1180/mgm.2018.160DOI: 10.1180/mgm.2018.160
  2. 2019Chukanov, Nikita V., Zubkova, Natalia V., Blass, Günter, Pekov, Igor V., Varlamov, Dmitry A., Belakovskiy, Dmitriy I., Ksenofontov, Dmitry A., Britvin, Sergey N., Pushcharovsky, Dmitry Yu. (2019) Kruijenite, Ca4Al4(SO4)F2(OH)16·2H2O, a new mineral with microporous structure from the Eifel paleovolcanic region, Germany. Mineralogy and Petrology, 113 (2) 229-236 doi:10.1007/s00710-019-00653-3 DOI: 10.1007/s00710-019-00653-3
  3. 2021(2021) Kruijenite. Handbook of Mineralogy. Mineralogical Society of America
