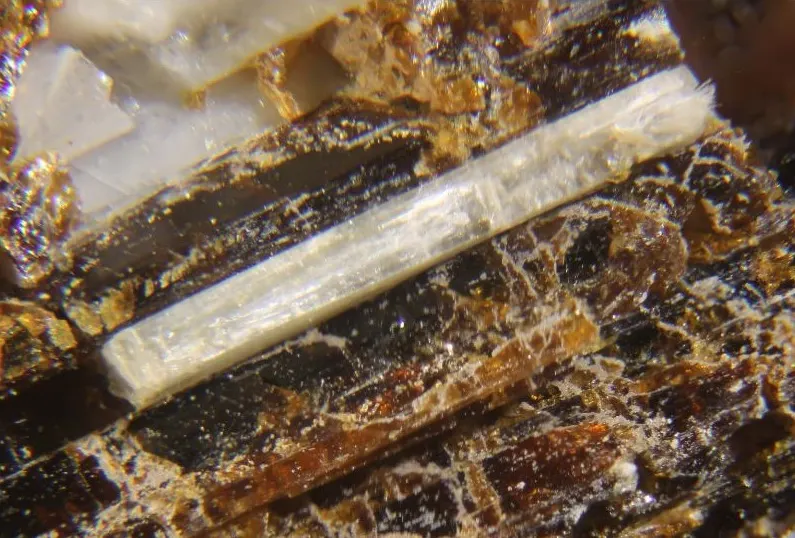

Kukisvumite

Na6ZnTi4O4(SiO3)8 · 4H2O
IMA status
  • Approved
IMA symbol
Kki
Discovered
1989
IMA approved
1989
Also known as
  • IMA1989-052
  • Kukisvumiet

Where it forms, where it's found

Geological setting

Arfvedsonite-microcline pegmatite vein that cuts ijolitic/urtitic rocks.

Type locality
Kirovskii apatite mine
  1. Kukisvumchorr Mt
  2. Murmansk Oblast
  3. Russia

67.6667°, 33.7167°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
White to colorless · some grains with a silver tint
Streak
White
Tenacity
elastic
Cleavage
None Observed

Crushes into thin fibers along the elongation

Fracture
Irregular/Uneven · Splintery
Density
2.90 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 77° · 2V calc = 76°
Refractive index
1.676 – 1.795
Surface relief
High
Principal indices
nα 1.676 · nβ 1.746 · nγ 1.795
Pleochroism
Non-pleochroic
Dispersion
weak
Michel-Lévy diagramhighlighted lineδ = 0.1190
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1190 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1190 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pccn
Cell parameters
a = 28.889(4) Å · b = 8.604(4) Å · c = 5.215(3) Å
Ratio a:b:c
1 : 0.298 : 0.181
Z
2
Morphology

Elongate [001], flattened [100], up to 7 mm long and 0.1 mm thick (type material)

Parting
(010)
Type-locality form

Fan-shaped intergrowths of long prismatic crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3215.999511.968
44.93%
14SiSiliconSilicon828.085224.680
19.72%
22TiTitaniumTitanium447.867191.468
16.80%
11NaSodiumSodium622.990137.940
12.10%
30ZnZincZinc165.38065.380
5.74%
1HHydrogenHydrogen81.0088.064
0.71%
Total1139.500100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Nb
  • Fe
  • F

Synonyms

  • IMA1989-052
  • Kukisvumiet

In other languages

German
IMA 1989-052 · Kukisvumit
Italian
Kukisvumite

Classification

Strunz
10th ed.

9.DB.20

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DBInosilicates with 2-periodic single chains, Si2O6; Pyroxene-related mineralsGroup
  • 9.DB.20KukisvumiteSpecies
Dana
8th ed.

65.01.06.02

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.01Single-Width Unbranched Chains, W=1 with chains P=2Type
  • 65.01.06Lorenzenite groupGroup
  • 65.01.06.02KukisvumiteSpecies

Literature, links & citation

Citations
  1. 1991Yakovenchuk, V.N., Pakhomovskii, Y.A., Bogdanova, A.N. (1991) Kukisvumite - A new mineral from the alkaline pegmatites of the Khibiny massif (Kola Peninsula). Mineralogicheskii Zhurnal: 13(2): 63-67.
  2. 1992Jambor, John L., Puziewicz, Jacek (1992) New Mineral Names. American Mineralogist, 77 (9-10) 1116-1121
  3. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
  4. 2000Pasero, M.; Merlino, St.; Ferro, O. (2000) The crystal structure of kukisvumite, Na6ZnTi4(Si2O6)4O4 · 4H2O. Zeitschrift für Kristallographie, 215 (6). 352-356 doi:10.1524/zkri.2000.215.6.352 DOI: 10.1524/zkri.2000.215.6.352
  5. 2001(2001) Kukisvumite. Handbook of Mineralogy. Mineralogical Society of America
