Långbanite

Mn2+4Mn3+9Sb5+O16(SiO4)2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Lgb
Also known as
  • Ferrostibian
  • IMA1971-s.p.
  • Långbaniet

Where it forms, where it's found

Geological setting

In crystalline limestones and manganese-rich skarns in metamorphosed manganese deposits.

Type locality
Långban Mine
  1. Långban Ore District
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8554°, 14.2648°

9recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
black
Streak
brown
Tenacity
brittle
Cleavage
Distinct/Good

(001) good.

Fracture
Conchoidal
Density
4.9 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
2.31 – 2.36
Surface relief
Very high
Principal indices
nω 2.36 · nε 2.31
Notes

Refractive indices recorded for Li light.

Michel-Lévy diagramhighlighted lineδ = 0.0500
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]500 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation500 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#84
Cell parameters
a = 11.563(2) Å · b = 11.563 Å · c = 11.100(2) Å
Cell angles
α = 90 ° · β = 90 ° · γ = 120 °
Ratio a:b:c
1 : 1.000 : 0.960
Morphology

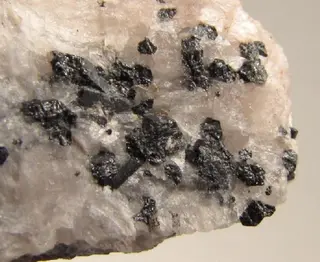

Complex prismatic crystals to 1 cm.

Type-locality form

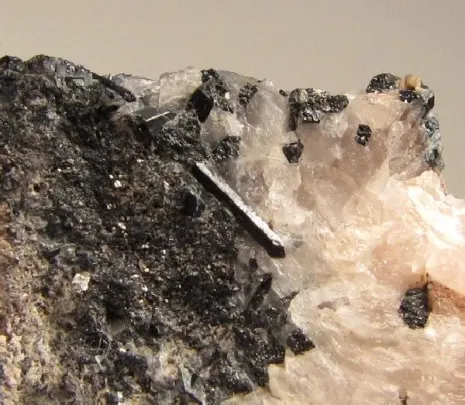

Short to long black prisms with vertical striations.

Comment

Also reported as monoclinic, C2/m, a = 11.561(5) Å, b = 20.05(1) Å, c = 11.075(9) Å, β = 90.03(5)° by Guiseppetti et al. (1991).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese1354.938714.194
55.97%
8OOxygenOxygen2415.999383.976
30.09%
51SbAntimonyAntimony1121.760121.760
9.54%
14SiSiliconSilicon228.08556.170
4.40%
Total1276.100100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Ferrostibian
  • IMA1971-s.p.
  • Långbaniet

In other languages

German
Långbanit
Italian
Långbanite

Classification

Strunz
10th ed.

9.AG.10

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AGNesosilicates with additional anions; cations in > [6] +- [6] coordinationGroup
  • 9.AG.10LångbaniteSpecies
Dana
8th ed.

44.03.04.01

  • 44AntimonatesClass
  • 44.03MiscellaneousType
  • 44.03.04— unnamed intermediate level —Group
  • 44.03.04.01LångbaniteSpecies
CIM

17.7.19

  • 17Silicates Containing other AnionsClass
  • 17.7Silicates with vanadate, arsenate or antimonateGroup
  • 17.7.19LångbaniteSpecies

Literature, links & citation

Citations
  1. 1888Flink, Gust. (1888) Ueber Långbanit, ein neues Mineral von Långbanshyttan in Wermland, Schweden. Zeitschrift für Kristallographie, 13 (1-6). 1-8 doi:10.1524/zkri.1888.13.1.1DOI: 10.1524/zkri.1888.13.1.1
  2. 1889Igelström, L. J. (1889) Mineralogiska meddelanden. Geologiska Föreningen i Stockholm Förhandlingar, 11 (6) 389-394 doi:10.1080/11035898909444274DOI: 10.1080/11035898909444274
  3. 1890Igelström (1890) Neues Jahrbuch für Mineralogie, Geologie und Paleontologie, Heidelberg, Stuttgart: 1: 250 (as Ferrostibian).
  4. 1891Bäckström, H. (1891) Ueber die Stellung des Långbanit im Mineralsysteme. Zeitschrift für Krystallographie, 19 (1). 276-283 doi:10.1524/zkri.1891.19.1.276DOI: 10.1524/zkri.1891.19.1.276
  5. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
