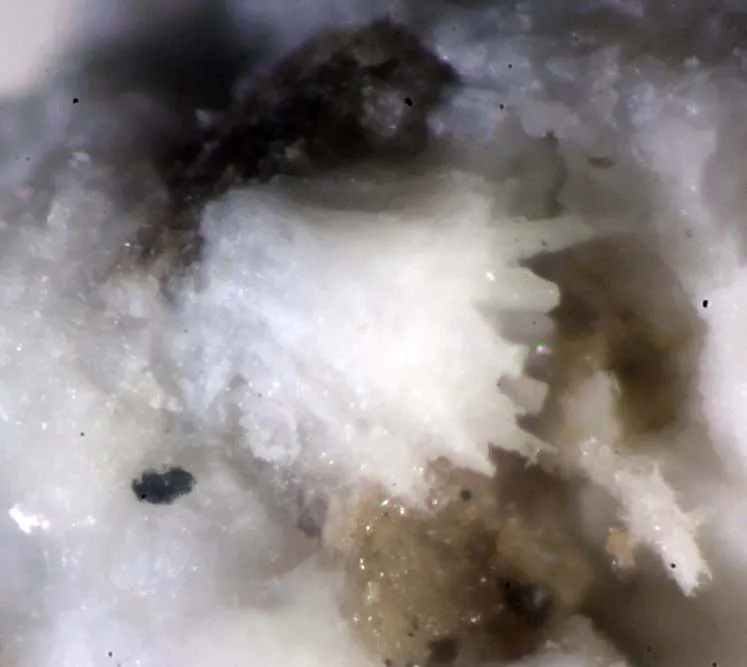

Lannonite

HCa4Mg2Al4(SO4)8F9 · 32H2O
IMA status
  • Approved
IMA symbol
Lnn
Discovered
1983
Also known as
  • IMA1979-069
  • Lannoniet

Where it forms, where it's found

Geological setting

A secondary mineral formed from pyrite- and fluorite-rich veins in silicified rocks. Efflorescences in breccia zones, on the walls of the adit and in pools of water on the adit floor.

Type locality
Lone Pine Mine
  1. Lone Pine Hill area
  2. Wilcox Mining District
  3. Catron County
  4. New Mexico
  5. USA

33.2373°, -108.7198°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
White
Density
2.22 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.46 – 1.478
Surface relief
Low
Principal indices
nω 1.46 · nε 1.478
Michel-Lévy diagramhighlighted lineδ = 0.0180
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]180 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation180 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#135
Cell parameters
a = 6.860(1) Å · c = 28.053(5) Å
Type-locality form

Nodules composed of innumerable tiny (10-20 µm) square plates.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen6415.9991023.936
55.84%
16SSulfurSulfur832.060256.480
13.99%
9FFluorineFluorine918.998170.982
9.32%
20CaCalciumCalcium440.078160.312
8.74%
13AlAluminiumAluminium426.982107.928
5.89%
1HHydrogenHydrogen651.00865.520
3.57%
12MgMagnesiumMagnesium224.30548.610
2.65%
Total1833.768100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1979-069
  • Lannoniet

In other languages

German
IMA 1979-069 · Lannonit
Italian
Lannonite

Classification

Strunz
10th ed.

7.DF.40

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DFWith large and medium-sized cationsGroup
  • 7.DF.40LannoniteSpecies
Dana
8th ed.

31.09.14.01

  • 31Hydrated Sulfates Containing Hydroxyl or HalogenClass
  • 31.09(AB)(XO4)Zq·xH2OType
  • 31.09.14— unnamed intermediate level —Group
  • 31.09.14.01LannoniteSpecies
CIM

26.19

  • 26Sulphates with HalideClass
  • 26.19— unnamed intermediate level —Group
  • 26.19LannoniteSpecies

Literature, links & citation

Citations
  1. 1983Williams, S. A., Cesbron, F. P. (1983) Wilcoxite and lannonite, two new fluosulphates from catron county, New Mexico. Mineralogical Magazine, 47 (342) 37-40 doi:10.1180/minmag.1983.047.342.06 DOI: 10.1180/minmag.1983.047.342.06
  2. 1984Dunn, Pete J.; Cabri, Louis J.; Chao, George Y.; Fleischer, Michael; Francis, Carl A.; Grice, Joel D.; Jambor, John L.; Pabst, Adolf (1984) New mineral names. American Mineralogist, 69 (3-4). 406-412
  3. 2005(2005) Lannonite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2013Oberwandling, L., Pristacz, H., Kolitsch, U., Lengauer, C.L. (2013) Structural characterization of lannonite from the Anna mine, Alsdorf, Germany. Poster, MinPet 2013, September 19-23; abstract in Mitt. Österr. Mineral. Ges. 159, 105. [http://erdwissenschaften.uni-graz.at/aktuelles/veranstaltungen/minpet2013/downloads/ThirdCircular2013_Final.pdf]
