Lavinskyite

K(LiCu)Cu6(Si4O11)2(OH)4
IMA status
  • Approved
IMA symbol
Lvs
IMA approved
2012
Also known as
  • IMA2012-028
  • Lavinskyiet

Where it forms, where it's found

Geological setting

Hydrothermal.

Type locality
Wessels Mine
  1. Joe Morolong Local Municipality
  2. John Taolo Gaetsewe District Municipality
  3. Northern Cape
  4. South Africa

-27.1135°, 22.8544°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Light blue
Streak
Very pale blue
Tenacity
brittle
Cleavage
Perfect

On (010).

Density
3.61 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 64° · 2V calc = 64.2°
Refractive index
1.675 – 1.715
Surface relief
High
Principal indices
nα 1.675 · nβ 1.686 · nγ 1.715
Pleochroism
Visible

X = dark blue, Y = light blue, and Z = light blue

Dispersion
None observed
Extinction
X = a, Y = b, Z = c
Notes

Absorption X > Y = Z

Michel-Lévy diagramhighlighted lineδ = 0.0400
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]400 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation400 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 19.046(3) Å · b = 20.377(2) Å · c = 5.2497(6) Å
Cell angles
α = 90 ° · β = 90 ° · γ = 90 °
Ratio a:b:c
1 : 1.070 : 0.276
Unit cell volume
2037.4 ų
Twinning

None observed.

Parting
None observed.
Type-locality form

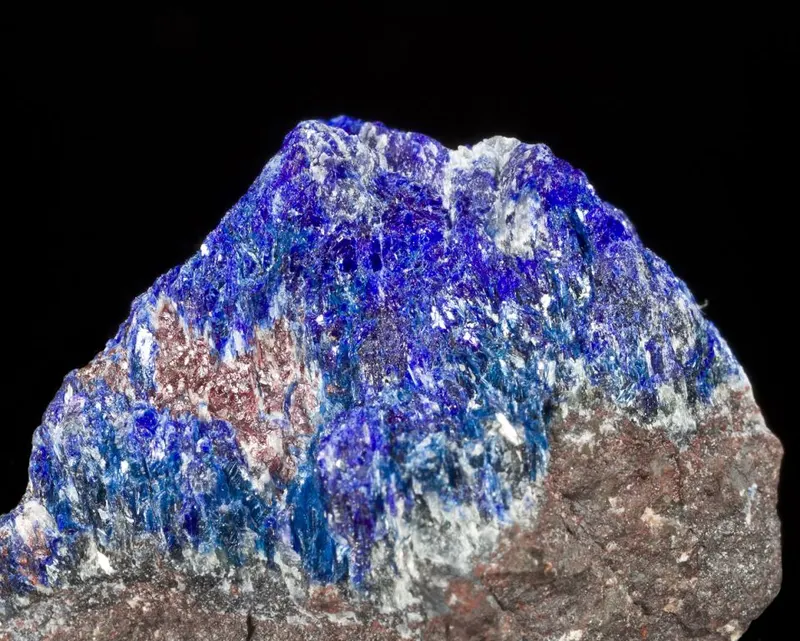

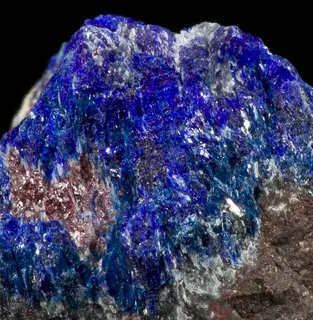

Light blue plates, associated with <m>wesselsite</m> and <m>scottyite</m>. Broken pieces are bladed, elongated along [001], up to 0.5 × 0.3 × 0.1 mm.

Comment

Space group Pcnb

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
29CuCopperCopper763.546444.822
39.17%
8OOxygenOxygen2615.999415.974
36.63%
14SiSiliconSilicon828.085224.680
19.79%
19KPotassiumPotassium139.09839.098
3.44%
3LiLithiumLithium16.9406.940
0.61%
1HHydrogenHydrogen41.0084.032
0.36%
Total1135.546100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2012-028
  • Lavinskyiet

In other languages

German
IMA 2012-028 · Lavinskyit
Italian
lavinskyite

Classification

Strunz
10th ed.

9.DP.55

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DPTransitional ino-phyllosilicate structuresGroup
  • 9.DP.55LavinskyiteSpecies

Literature, links & citation

Citations
  1. 2012Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2012) New minerals and nomenclature modifications approved in 2012. CNMNC Newsletter No 14. Mineralogical Magazine, 76 (5) 1281-1288 doi:10.1180/minmag.2012.076.5.15DOI: 10.1180/minmag.2012.076.5.15
  2. 2014Yang, H., Downs, R. T., Evans, S. H., Pinch, W. W. (2014) Lavinskyite, K(LiCu)Cu6(Si4O11)2(OH)4, isotypic with plancheite, a new mineral from the Wessels mine, Kalahari Manganese Fields, South Africa. American Mineralogist, 99 (2) 525-530 doi:10.2138/am.2014.4601 DOI: 10.2138/am.2014.4601
  3. 2016Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2016) New minerals and nomenclature modifications approved in 2016, CNMNC Newsletter 32. Mineralogical Magazine, 80 (5) 915-922 doi:10.1180/minmag.2016.080.084DOI: 10.1180/minmag.2016.080.084
  4. 2018Kolitsch, Uwe, Merlino, Stefano, Belmonte, Donato, Carbone, Cristina, Cabella, Roberto, Lucchetti, Gabriella, Ciriotti, Marco E. (2018) Lavinskyite-1M, K(LiCu)Cu6(Si4O11)2(OH)4, the monoclinic MDO equivalent of lavinskyite-2O (formerly lavinskyite), from the Cerchiara manganese mine, Liguria, Italy. European Journal of Mineralogy, 30 (4) 811-820 doi:10.1127/ejm/2018/0030-2731 DOI: 10.1127/ejm/2018/0030-2731
