Lemoynite

Na2CaZr2Si10O26 · 5-6H2O
IMA status
  • Approved
IMA symbol
Lmo
Discovered
1969
Also known as
  • IMA1968-013
  • Lemoyniet

Where it forms, where it's found

Type locality
Poudrette quarry (De-Mix quarry
  1. Demix quarry
  2. Uni-Mix quarry
  3. Carrière Mont Saint-Hilaire
  4. MSH)
  5. Mont Saint-Hilaire
  6. La Vallée-du-Richelieu RCM
  7. Montérégie
  8. Québec
  9. Canada

45.5628°, -73.1417°

5recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
white · slightly yellowish
Cleavage
Perfect

(100), (010) perfect, (001) imperfect or parting

Optical

Optical type
Biaxial (+) · 2V measured = 80° · 2V calc = 84°
Refractive index
1.54 – 1.57
Surface relief
Moderate
Principal indices
nα 1.54 · nβ 1.553 · nγ 1.57
Dispersion
weak
Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 10.38 Å · b = 15.94 Å · c = 18.6 Å
Cell angles
β = 104.59 °
Ratio a:b:c
1 : 1.536 : 1.792
Morphology

(100) and (001)

Type-locality form

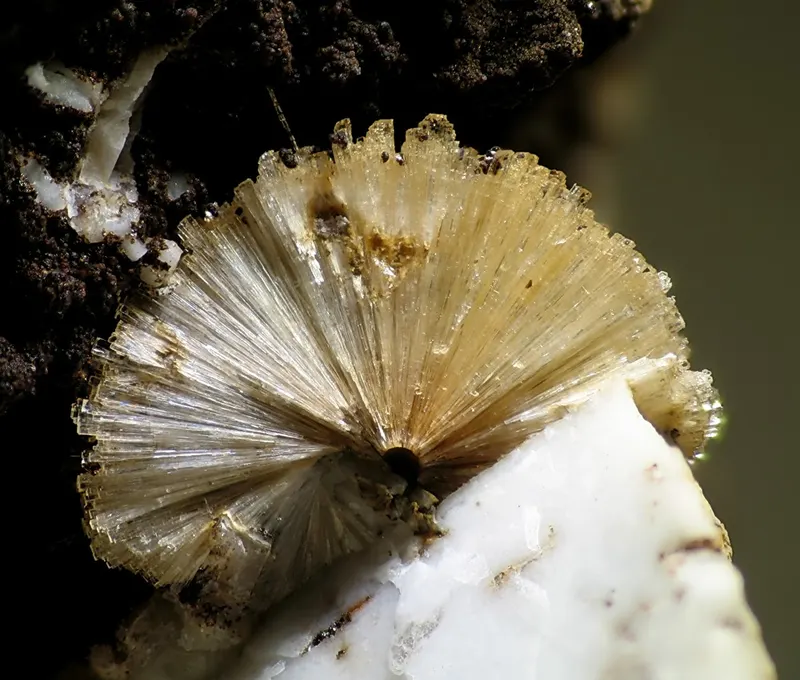

Spherulites about 0.5 cm in diameter

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3115.999495.969
46.99%
14SiSiliconSilicon1028.085280.850
26.61%
40ZrZirconiumZirconium291.224182.448
17.29%
11NaSodiumSodium222.99045.980
4.36%
20CaCalciumCalcium140.07840.078
3.80%
1HHydrogenHydrogen101.00810.080
0.95%
Total1055.405100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Fe
  • Nb
  • Mn
  • Cu
  • Zn
  • Mg
  • Sr
  • Rb

Synonyms

  • IMA1968-013
  • Lemoyniet

In other languages

German
IMA 1968-013 · Lemoynit
Italian
Lemoynite

Classification

Strunz
10th ed.

9.DP.35

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DPTransitional ino-phyllosilicate structuresGroup
  • 9.DP.35LemoyniteSpecies
Dana
8th ed.

74.03.03.02

  • 74Phyllosilicates Modulated LayersClass
  • 74.03Modulated Layers with joined stripsType
  • 74.03.03Altisite/lemoyniteGroup
  • 74.03.03.02LemoyniteSpecies
CIM

14.10.23

  • 14Silicates not Containing AluminumClass
  • 14.10Silicates of Zr or HfGroup
  • 14.10.23LemoyniteSpecies

Literature, links & citation

Citations
  1. 1969Perrault, G., Semenov, E. I., Bikova, A. V., Captinova, T. A. (1969) La lemoynite, un nouveau silicate hydraté de Zirconium et de sodium de St. Hilaire, Québec. The Canadian Mineralogist, 9 (5) 585-596
  2. 1972Fleischer, M. (1972) New Mineral Names. American Mineralogist, 57 (11-12). 1909-1914
  3. 1975Blinov, V.A., Voronkov, A.A., Ilyukhin, V.V., Belov, N.V. (1975) Crystal structure of lemoynite with a new type of mixed framework. Soviet Physics - Doklady: 19: 397-398.
  4. 1976Le Page, Y., and Perrault, G. (1976) Structure cristalline de la lemoynite, (Na,K)2CaZr2Si10O26•5-6H2O. Canadian Mineralogist: 14: 132-138 (in French).
  5. 1998Horváth, László, Gault, Robert A., Tarassoff, Peter, Pfenninger-Horváth, Elsa (1998) Mineralogy of the Saint-Amable Sill, Varennes and Saint-Amable, Quebec. The Mineralogical Record, 29 (2) 83-118
