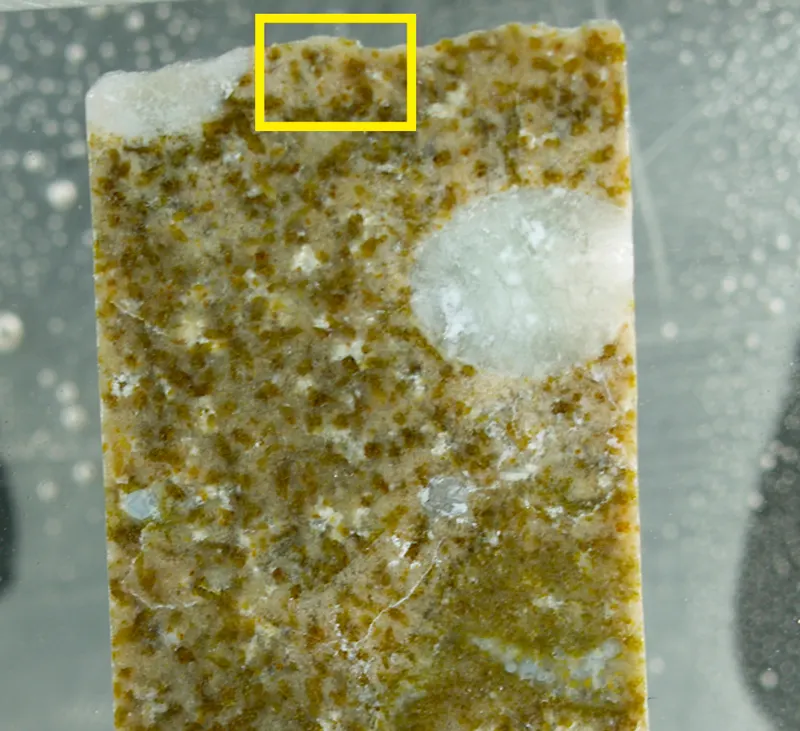

Levantite

KCa3Al2(SiO4)(Si2O7)(PO4)
IMA status
  • Approved
IMA symbol
Lev
IMA approved
2017
Also known as
  • IMA2017-010
  • Levantiet

Where it forms, where it's found

Type locality
Har Parsa (Mt. Parsa)
  1. Hatrurim Basin
  2. Tamar Regional Council
  3. Beersheba Subdistrict
  4. Southern District
  5. Israel

31.2101°, 35.2833°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Cleavage
Distinct/Good

On (100)

Density
2.957 g/cm³

Optical

Optical type
· 2V measured = 70° · 2V calc = 64.3°
Refractive index
1.608 – 1.622
Surface relief
Moderate
Principal indices
nα 1.608 · nβ 1.618 · nγ 1.622
Pleochroism
Non-pleochroic
Dispersion
weak, r > v
Notes

Z = b, X^c = 22–27°

Michel-Lévy diagramhighlighted lineδ = 0.0140
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]140 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation140 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21
Cell parameters
a = 12.1006(9) Å · b = 5.1103(4) Å · c = 10.8252(9) Å
Cell angles
β = 107.237(8) °
Ratio a:b:c
1 : 0.422 : 0.895
Unit cell volume
639.34 ų
Z
2
Twinning

Twinning on (100) is polysynthetic or simple

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
42.21%
20CaCalciumCalcium340.078120.234
21.15%
14SiSiliconSilicon328.08584.255
14.82%
13AlAluminiumAluminium226.98253.964
9.49%
19KPotassiumPotassium139.09839.098
6.88%
15PPhosphorusPhosphorus130.97430.974
5.45%
Total568.510100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2017-010
  • Levantiet

In other languages

German
IMA 2017-010 · Levantit

Classification

Strunz
10th ed.

9.EG.45

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EGDouble nets with 6-membered and larger ringsGroup
  • 9.EG.45LevantiteSpecies

Group, growth & confusion

In the same group
1 members

Literature, links & citation

Citations
  1. 2017Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2017) New minerals and nomenclature modifications approved in 2017, CNMNC Newsletter No 37. Mineralogical Magazine, 81 (3) 737-742 doi:10.1180/minmag.2017.081.039DOI: 10.1180/minmag.2017.081.039
  2. 2017Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2017) New minerals and nomenclature modifications approved in 2017, CNMNC Newsletter No 38. Mineralogical Magazine, 81 (4) 1033-1038 doi:10.1180/minmag.2017.081.062DOI: 10.1180/minmag.2017.081.062
  3. 2019Galuskin, Evgeny V., Krüger, Biljana, Galuskina, Irina O., Krüger, Hannes, Vapnik, Yevgeny, Pauluhn, Anuschka, Olieric, Vincent (2019) Levantite, KCa3(Al2Si3)O11(PO4), a new latiumite-group mineral from the pyrometamorphic rocks of the Hatrurim Basin, Negev Desert, Israel. Mineralogical Magazine, 83 (5) 713-721 doi:10.1180/mgm.2019.37 DOI: 10.1180/mgm.2019.37
  4. 2022(2022) Levantite. Handbook of Mineralogy. Mineralogical Society of America
