Lintisite

Na3LiTi2O2(SiO3)4 · 2H2O
IMA status
  • Approved
IMA symbol
Lts
Discovered
1989
IMA approved
1989
Also known as
  • IMA1989-025
  • Lintisiet

Where it forms, where it's found

Geological setting

Pegmatites of nepheline-sodalite syenite.

Type locality
Alluaiv Mountain
  1. Lovozersky District
  2. Murmansk Oblast
  3. Russia

67.8645°, 34.5124°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colorless · white to pale yellow
Streak
White
Tenacity
elastic
Cleavage
Perfect

(100) and (010)

Fracture
Splintery
Density
2.77 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 85° · 2V calc = 84°
Refractive index
1.672 – 1.802
Surface relief
High
Principal indices
nα 1.672 · nβ 1.739 · nγ 1.802
Dispersion
r < v, strong
Extinction
Z ∧ γ = 2°, Y = β. Extinction straight to very slightly oblique as result of flattening of the needles on {100}.
UV response
Fluoresces weak yellow in UV.
Michel-Lévy diagramhighlighted lineδ = 0.1300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1300 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1300 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 28.583(4) Å · b = 8.600(1) Å · c = 5.219(1) Å
Cell angles
β = 91.03(2) °
Ratio a:b:c
1 : 0.301 : 0.183
Z
4
Morphology

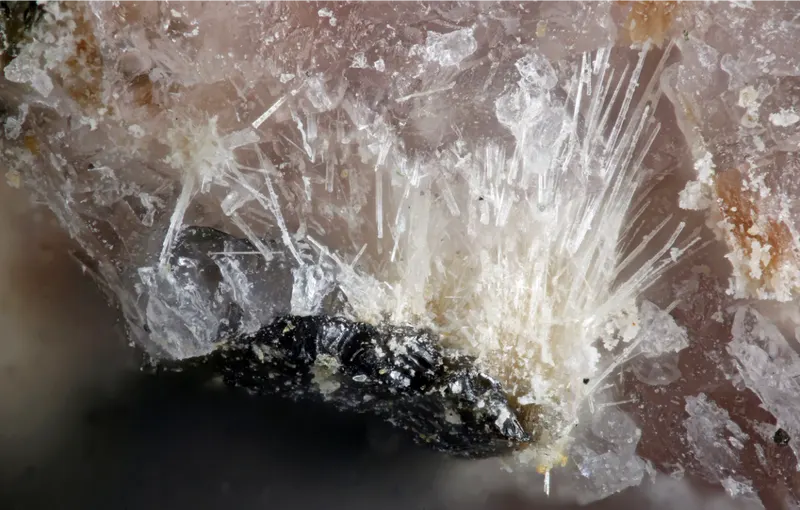

Needlelike crystals, in fibrous or columnar aggregates. Elongate [001] and flattened on (100).

Twinning

Twin axis [100]

Type-locality form

Fibrous or parallel-columnar aggregates, up to 0.5 mm thick and 5 mm long, that replaced lorenzenite on cleavages and crystal surfaces.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1615.999255.984
47.06%
14SiSiliconSilicon428.085112.340
20.65%
22TiTitaniumTitanium247.86795.734
17.60%
11NaSodiumSodium322.99068.970
12.68%
3LiLithiumLithium16.9406.940
1.27%
1HHydrogenHydrogen41.0084.032
0.74%
Total544.000100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Nb
  • Fe
  • Mn
  • K

Synonyms

  • IMA1989-025
  • Lintisiet

In other languages

German
IMA 1989-025 · Lintisit
Italian
Lintisite

Classification

Strunz
10th ed.

9.DB.15

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DBInosilicates with 2-periodic single chains, Si2O6; Pyroxene-related mineralsGroup
  • 9.DB.15LintisiteSpecies
Dana
8th ed.

65.01.06.03

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.01Single-Width Unbranched Chains, W=1 with chains P=2Type
  • 65.01.06Lorenzenite groupGroup
  • 65.01.06.03LintisiteSpecies
CIM

14.9.3

  • 14Silicates not Containing AluminumClass
  • 14.9Silicates of TiGroup
  • 14.9.3LintisiteSpecies

Literature, links & citation

Citations
  1. 1990Merlino, Stefano; Pasero, Marco; Khomyakov, Alexander P. (1990) The crystal structure of lintisite, Na3LiTi2[Si2O6]2O2· 2H2O, a new titanosilicate from Lovozero (USSR). Zeitschrift für Kristallographie, 193 (1-2). 137-148 doi:10.1524/zkri.1990.193.1-2.137 DOI: 10.1524/zkri.1990.193.1-2.137
  2. 1990Khomyakov, A.P., Polezhaeva L.I., Merlino S., Pasero M. (1990): Lintisite, Na3LiTiSi4O14 2H2O - a new mineral. Zapinski Vsesoyuznogo Mineralogicheskogo Obshchestva, 119(3), 76-80.
  3. 1991Jambor, John L., Puziewicz, Jacek (1991) New Mineral Names. American Mineralogist, 76 (9-10) 1728-1735
  4. 2000HORVÁTH, L., PFENNINGER HORVÁTH, E. (2000) I minerali di Mont-Saint-Hilaire (Québec, Canada) Rivista Mineralogica Italiana, 24, 140-202 (in Italian with English summary).
  5. 2001(2001) Lintisite. Handbook of Mineralogy. Mineralogical Society of America
