Lithiomarsturite

LiCaMn2+3Si5O14(OH)
IMA status
  • Approved
IMA symbol
Lmsr
Discovered
1990
Also known as
  • IMA1988-035
  • Lithiomarsturiet
  • Lithiomarsturita

Where it forms, where it's found

Type locality
Foote Lithium Co. Mine
  1. Kings Mountain
  2. Cleveland County
  3. North Carolina
  4. USA

35.2111°, -81.3556°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Light pinkish brown through intermediate hues to light yellow
Streak
Very light brown
Tenacity
brittle
Cleavage
Distinct/Good

good On (100) and (001)

Density
3.32 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 59° · 2V calc = 64°
Refractive index
1.645 – 1.666
Surface relief
High
Principal indices
nα 1.645 · nβ 1.660 · nγ 1.666
Dispersion
relatively strong, r > v
UV response
None observed
Notes

X ≈ b, Y ≈ [100], Z ≈ c.

Michel-Lévy diagramhighlighted lineδ = 0.0210
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]210 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation210 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 7.652(3) Å · b = 12.119(3) Å · c = 6.805(2) Å
Cell angles
α = 85.41(2) ° · β = 94.42(3) ° · γ = 111.51(2) °
Ratio a:b:c
1 : 1.584 : 0.889
Z
2
Morphology

(100) (dominant), (010), and (001).

Type-locality form

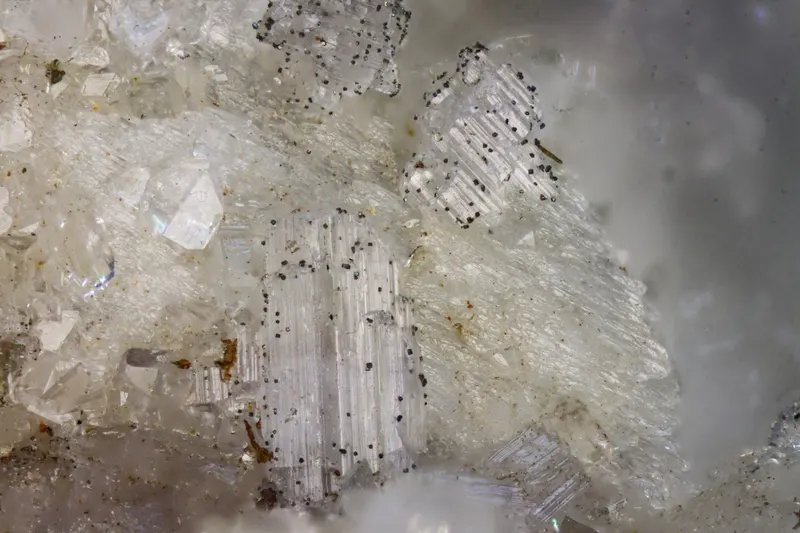

1-3 mm euhedral crystals. Usually rhombic with sharp edges that tend to be markedly lighter in color than the rest of the crystal. Also slightly divergent crystal bundles with irregular terminations that looked as if they were etched and that are lighter.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
40.45%
25MnManganeseManganese354.938164.814
27.78%
14SiSiliconSilicon528.085140.425
23.67%
20CaCalciumCalcium140.07840.078
6.76%
3LiLithiumLithium16.9406.940
1.17%
1HHydrogenHydrogen11.0081.008
0.17%
Total593.250100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Mg
  • H2O

Synonyms

  • IMA1988-035
  • Lithiomarsturiet
  • Lithiomarsturita

In other languages

German
IMA 1988-035 · Lithiomarsturit
Italian
litiomarsturite

Classification

Strunz
10th ed.

9.DK.05

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DKInosilicates with 5-periodic single chainsGroup
  • 9.DK.05LithiomarsturiteSpecies
Dana
8th ed.

65.04.01.07

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.04Single-Width Unbranched Chains, W=1 with chains P=5Type
  • 65.04.01Rhodonite groupGroup
  • 65.04.01.07LithiomarsturiteSpecies
CIM

14.18.26

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.26LithiomarsturiteSpecies

Literature, links & citation

Citations
  1. 1990Peacor, Donald R., Dunn, Pete J., White, John S., Jr.,, Grice, Joel D., Chi, Peter H. (1990) Lithiomarsturite, a new member of the pyroxenoid group, from North Carolina. American Mineralogist, 75 (3-4) 409-414
  2. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
  3. 2001(2001) Lithiomarsturite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2011Yang, Hexiong, Downs, Robert T., Yang, Yongbo W. (2011) Lithiomarsturite, LiCa2Mn2Si5O14(OH) Acta Crystallographica Section E Structure Reports Online, 67 (12) 73 doi:10.1107/s1600536811047581 DOI: 10.1107/s1600536811047581
  5. 2022Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2022) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 65. European Journal of Mineralogy, 34 (1) 143-148 doi:10.5194/ejm-34-143-2022 DOI: 10.5194/ejm-34-143-2022
