Lokkaite-(Y)

CaY4(CO3)7 · 9H2O
IMA status
  • Approved
IMA symbol
Lok-Y
IMA approved
1969
Also known as
  • IMA1969-045
  • Lokkaiet-(Y)
  • Lokkait
  • +2 more

Where it forms, where it's found

Geological setting

secondary mineral formed by alteration of primary rare-earth minerals.

Type locality
Pyörönmaa pegmatite
  1. Valkeakoski
  2. Pirkanmaa
  3. Finland

61.3198°, 23.9906°

12recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Translucent
Colour
snow white · may be discolored to pale yellow.
Streak
white
Tenacity
brittle
Density
2.92 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.569 – 1.62
Surface relief
Moderate
Principal indices
nα 1.569 · nβ 1.592 · nγ 1.620
Dispersion
r > v strong
Michel-Lévy diagramhighlighted lineδ = 0.0510
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]510 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation510 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 39.21(18) Å · b = 6.950(11) Å · c = 9.22(4) Å
Ratio a:b:c
1 : 0.177 : 0.235
Z
8
Morphology

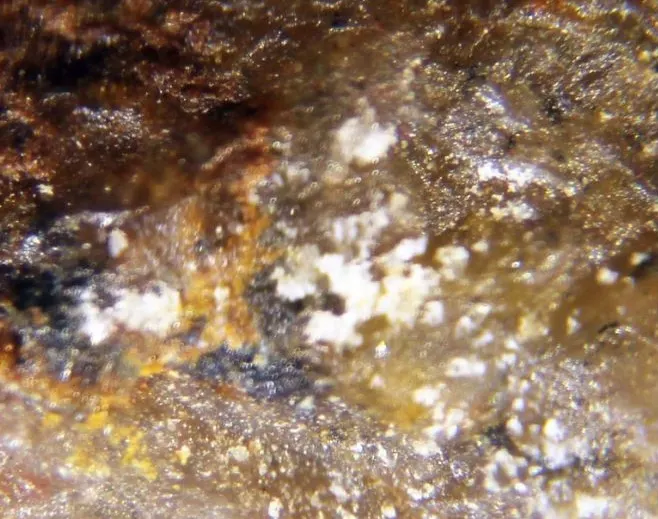

Fibrous crystal bundles, powdery incrustations.

Comment

Point Group: 2/m 2/m 2/m or mm2.; Space Group: P bmm, P b2m, or P bm2.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3015.999479.970
49.08%
39YYttriumYttrium488.906355.624
36.37%
6CCarbonCarbon712.01184.077
8.60%
20CaCalciumCalcium140.07840.078
4.10%
1HHydrogenHydrogen181.00818.144
1.85%
Total977.893100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1969-045
  • Lokkaiet-(Y)
  • Lokkait
  • Lokkaita
  • Lokkaite

In other languages

German
IMA 1969-045 · Lokkait-(Y)
Italian
Lokkaite- · Lokkaite-(Y)

Classification

Strunz
10th ed.

5.CC.15

  • 5CarbonatesClass
  • 5.CCarbonates without additional anions, with H2ODivision
  • 5.CCWith rare earth elements (REE)Group
  • 5.CC.15Lokkaite-(Y)Species
Dana
8th ed.

15.04.04.01

  • 15Hydrated Normal CarbonatesClass
  • 15.04AmBn(XO3)p·xH2O, with (m+n):p < 1:1Type
  • 15.04.04— unnamed intermediate level —Group
  • 15.04.04.01Lokkaite-(Y)Species
CIM

11.8.11

  • 11CarbonatesClass
  • 11.8Carbonates of the rare earthsGroup
  • 11.8.11Lokkaite-(Y)Species

Group, growth & confusion

In the same group
3 members
Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1970Perttunen, V. (1970) Lokkaite, a new hydrous RE-carbonate from Pyörönmaa pegmatite in Kangasala, SW-Finland. Bulletin of the Geological Society of Finland: 43: 67-72.
  2. 1971Fleischer, Michael (1971) New Mineral Names. American Mineralogist, 56 (9-10) 1838-1840
  3. 1986Nagashima, K., Miyawaki, R., Takase, J., Nakai, I., Sakurai, K., Matsubara, S., Kato, A., Iwano, S. (1986) Kimuraite, CaY2(CO3)4·6H2O, a new mineral from fissures in an alkali olivine basalt from Saga Prefecture, Japan, and new data on lokkaite. American Mineralogist, 71 (7-8) 1028-1033
  4. 1987Nickel, Ernest H., Mandarino, Joseph A. (1987) Procedures involving the IMA Commission on New Minerals and Mineral Names and guidelines on mineral nomenclature. American Mineralogist, 72 (9-10) 1031-1042
  5. 1993Miyawaki, Ritsuro, Kuriyama, Junko, Nakai, Izumi (1993) The redefinition of tengerite-(Y), Y2(CO3)3·2-3H2O, and its crystal structure. American Mineralogist , 78 (3-4) 425-432
