Lourenswalsite

(K,Ba)2Ti4(Si,Al)6O14(OH)12
IMA status
  • Approved
IMA symbol
Lrw
Discovered
1987
Also known as
  • IMA1987-005
  • Lourenswalsiet

Where it forms, where it's found

Geological setting

Oxidation zone of nepheline syenite

Type locality
Diamond Jo Quarry
  1. Magnet Cove
  2. Hot Spring County
  3. Arkansas
  4. USA

34.4382°, -92.8632°

1recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Translucent
Colour
Silvery gray to light brownish gray
Tenacity
brittle
Cleavage
Distinct/Good

good on (001)

Very fragile

Fracture
Irregular/Uneven
Density
3.17 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = ~0°
Refractive index
1.815 – 1.84
Surface relief
Very high
Principal indices
nα 1.815 · nβ 1.840 · nγ 1.840
Pleochroism
Non-pleochroic
Dispersion
r > v
Notes

Extremely low 2V. Parallel extinction and positive elongation when viewed when lying on the platy cleavage.

Michel-Lévy diagramhighlighted lineδ = 0.0250
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]250 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation250 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Cell parameters
a = 5.244(2) Å · c = 20.49(3) Å
Z
1
Type-locality form

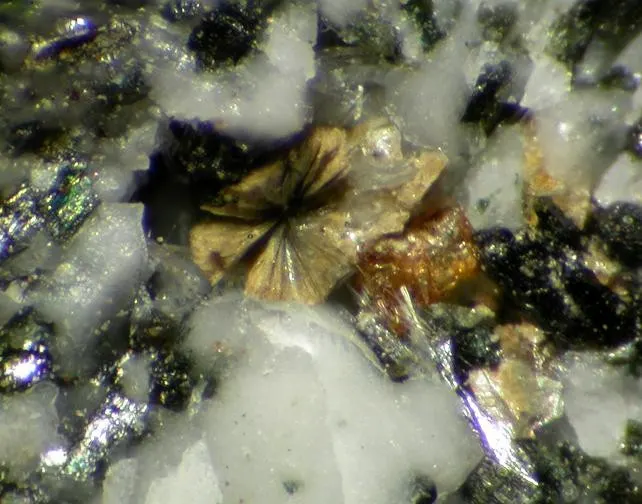

Tiny rosettelike clusters, to about 1 mm, of fragile, very thin hexagonal flakes a few micrometers on edge.

Comment

Crystal Data: Pseudohexagonal. Point Group: n.d.; Space Group: n.d.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2615.999415.974
31.93%
56BaBariumBarium2137.327274.654
21.08%
22TiTitaniumTitanium447.867191.468
14.70%
14SiSiliconSilicon628.085168.510
12.93%
13AlAluminiumAluminium626.982161.892
12.43%
19KPotassiumPotassium239.09878.196
6.00%
1HHydrogenHydrogen121.00812.096
0.93%
Total1302.790100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • H2O

Synonyms

  • IMA1987-005
  • Lourenswalsiet

In other languages

German
IMA1987-005 · Lourenswalsit
Italian
Lourenswalsite

Classification

Strunz
10th ed.

9.EJ.05

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EJUnclassified phyllosilicatesGroup
  • 9.EJ.05LourenswalsiteSpecies
Dana
8th ed.

61.02.03.01

  • 61Cyclosilicates Six-membered RingsClass
  • 61.02Six-Membered Rings with Al substituted ringsType
  • 61.02.03— unnamed intermediate level —Group
  • 61.02.03.01LourenswalsiteSpecies
CIM

16.14.7

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.14Aluminosilicates of Ti, Zr, Sn and PbGroup
  • 16.14.7LourenswalsiteSpecies

Literature, links & citation

Citations
  1. 1987Appleman, Daniel E., Evans, Howard T., Nord, Gordon L., Dwornik, Edward J., Milton, Charles (1987) Delindeite titanosilicates and lourenswalsite, two new from the Magnet Cove region, Arkansas. Mineralogical Magazine, 51 (361) 417-425 doi:10.1180/minmag.1987.051.361.08 DOI: 10.1180/minmag.1987.051.361.08
  2. 1988Jambor, John L., Ercit, Ernst A. J. Burke T. Scott, Grice, Joel D. (1988) New Mineral Names. American Mineralogist, 73 (11-12) 1492-1499
  3. 2001(2001) Lourenswalsite. Handbook of Mineralogy. Mineralogical Society of America
