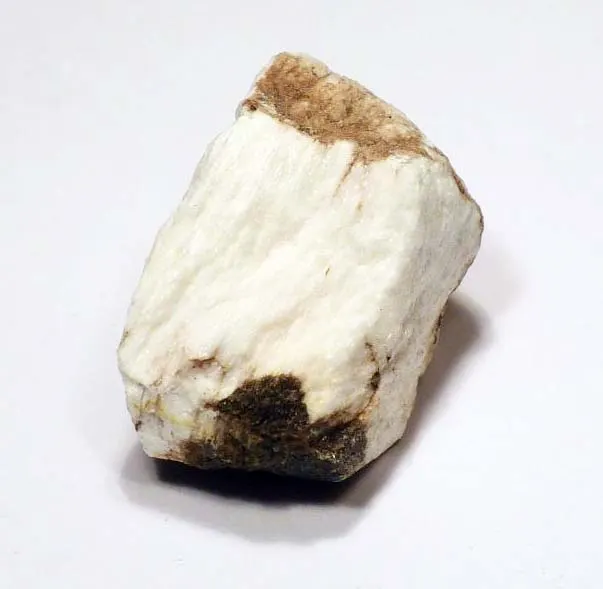

Lüneburgite

Mg3[B2(OH)6(PO4)2] · 6H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Lbu
Discovered
1870
Also known as
  • Lueneburgit
  • Lueneburgita
  • Lueneburgite
  • +1 more

Where it forms, where it's found

Geological setting

Gypsum-bearing marl.

Type locality
Volgershall
  1. Lüneburg
  2. Lüneburg District
  3. Lower Saxony
  4. Germany

53.2501°, 10.3842°

9recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
White to brownish or green · colorless
Cleavage
Poor/Indistinct

Prismatic cleavage with an angle of about 73° (viewed microscopically). Minute pseudo-hexagonal plates. On (010), fair.

Density
2.05 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 63° · 2V calc = 62 – 60°
Refractive index
1.52 – 1.549
Surface relief
Moderate
Principal indices
nα 1.520 – 1.522 · nβ 1.54 – 1.541 · nγ 1.545 – 1.549
Dispersion
distinct to strong
Michel-Lévy diagramhighlighted lineδ = 0.0260
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]260 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation260 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 6.3475(6) Å · b = 9.8027(11) Å · c = 6.2976(5) Å
Cell angles
α = 84.456(9) ° · β = 106.402(8) ° · γ = 96.400(9) °
Ratio a:b:c
1 : 1.544 : 0.992
Z
1
Morphology

Flattened masses and nodules with fine fibrous to earthy structure. Minute pseudo-hexagonal tablets.

Twinning

Common, by rotation about [1_10].

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2015.999319.980
64.69%
12MgMagnesiumMagnesium324.30572.915
14.74%
15PPhosphorusPhosphorus230.97461.948
12.53%
5BBoronBoron210.81021.620
4.37%
1HHydrogenHydrogen181.00818.144
3.67%
Total494.607100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Lueneburgit
  • Lueneburgita
  • Lueneburgite
  • Lüneburgiet

In other languages

German
Lüneburgit
Spanish
Lueneburgita · Luneburgita
Italian
Lüneburgite

Classification

Strunz
10th ed.

6.AC.60

  • 6BoratesClass
  • 6.AMonoboratesDivision
  • 6.ACB(O,OH)4, without and with additional anions; 1(T), 1(T)+OH, etcGroup
  • 6.AC.60LüneburgiteSpecies
Dana
8th ed.

43.05.11.01

  • 43Compound Phosphates, Etc.Class
  • 43.05Hydrated Compound Phosphates, etc·, Containing Hydroxyl or HalogenType
  • 43.05.11— unnamed intermediate level —Group
  • 43.05.11.01LüneburgiteSpecies
CIM

10.2.1

  • 10Borates with other anionsClass
  • 10.2Borates with phosphate or arsenateGroup
  • 10.2.1LüneburgiteSpecies

Literature, links & citation

Citations
  1. 1870Nöllner, C. (1870) Über den Lüneburgit. Sitzungsberichte der königlich bayerischen Akademie der Wissenschaften zu München. Band I., 291-293.
  2. 1880Domeyko (1880) Comptes rendu de l’Académie des sciences de Paris: 90: 544.
  3. 1912Biltz and Marcus (1912) Zeitschrift für anorganische und allgemeine Chemie, Hamburg, Leipzig: 77: 124.
  4. 1921Larsen, Esper S. (1921) The microscopic determination of the nonopaque minerals. Bulletin 679. US Geological Survey doi:10.3133/b679 DOI: 10.3133/b679
  5. 1932Schaller, W.T., Henderson, E.P. (1932) Mineralogy of drill cores from the potash field of New Mexico and Texas. United States Geological Survey Bulletin 833: 1-124 (47).
Cite this entry
@misc{mineral2026,
  author    = {Mineral Index editorial board},
  title     = {Lüneburgite — Mineral Index},
  year      = {2026},
  url       = {https://mineralindex.org/minerals/luneburgite-2458},
  note      = {Accessed 2026-05-11}
}
