Macdonaldite

BaCa4Si16O36(OH)2 · 10H2O
IMA status
  • Approved
IMA symbol
Mcd
Discovered
1964
Also known as
  • IMA1964-010
  • Macdonaldiet

Where it forms, where it's found

Geological setting

Sanbornite-quartz-bearing metamorphic rock.

Type locality
Big Creek
  1. Big Creek-Rush Creek Mining District
  2. Fresno County
  3. California
  4. USA

36.9151°, -119.2445°

11recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Satiny · Vitreous
Transparency
Transparent · Translucent
Colour
White · colourless
Streak
White
Cleavage
Perfect

Perfect on (010), good on (001), poor or a fracture on (100).

Density
2.27 g/cm³

Optical

Optical type
Biaxial (+/-) · 2V measured = 90° · 2V calc = 88°
Refractive index
1.518 – 1.53
Surface relief
Moderate
Principal indices
nα 1.518 · nβ 1.524 · nγ 1.530
Dispersion
weak
Extinction
X = c; Y = b; Z = a.
Michel-Lévy diagramhighlighted lineδ = 0.0120
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]120 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation120 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 14.06(1) Å · b = 23.52(2) Å · c = 13.08(1) Å
Ratio a:b:c
1 : 1.673 : 0.930
Z
4
Morphology

Fibrous, in radiating aggregates, and granular. Elongated along [100] and showing forms (010) (major), (001), and {100).

Type-locality form

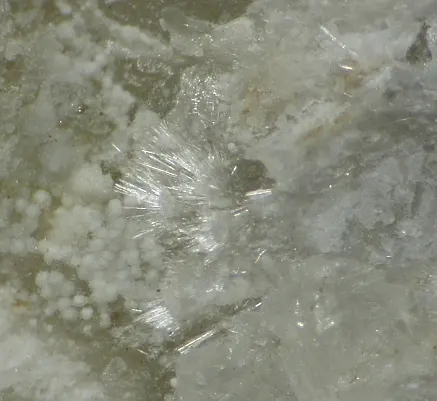

Vein-forming mineral. Small radiating crystal aggregates up to 12 mm in diameter and individual fibers as much as 6 mm long, but more commonly about 1 mm long.

Comment

Point Group: 2/m 2/m 2/m or mm2:; Space Group: Bmmb; B2mb; or Bm21 b:

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen4815.999767.952
49.96%
14SiSiliconSilicon1628.085449.360
29.23%
20CaCalciumCalcium440.078160.312
10.43%
56BaBariumBarium1137.327137.327
8.94%
1HHydrogenHydrogen221.00822.176
1.44%
Total1537.127100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Fe
  • Mn
  • Mg
  • Sr

Synonyms

  • IMA1964-010
  • Macdonaldiet

In other languages

French
Macdonaldite
German
IMA 1964-010 · Macdonaldit
Italian
Macdonaldite

Classification

Strunz
10th ed.

9.EB.05

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EBDouble nets with 4- and 6-membered ringsGroup
  • 9.EB.05MacdonalditeSpecies
Dana
8th ed.

72.05.01.03

  • 72Phyllosilicates Two-dimensional Infinite Sheets with Other Than Six-membered RingsClass
  • 72.05Two-Dimensional Infinite Sheets with Other Than Six-Membered Rings with corrugated and complex layersType
  • 72.05.01Rhodesite groupGroup
  • 72.05.01.03MacdonalditeSpecies
CIM

14.7.4

  • 14Silicates not Containing AluminumClass
  • 14.7Silicates of Ba, Sr and ZnGroup
  • 14.7.4MacdonalditeSpecies

Literature, links & citation

Citations
  1. 1965Alfors, John T., Stinson, Melvin C., Matthews, Robert A., Pabst, Adolf (1965) Seven new barium minerals from eastern Fresno County, California. American Mineralogist, 50 (3-4) 314-340
  2. 1968Cannillo, E., Rossi, G., Ungaretti, L. (1968) The crystal structure of macdonaldite. Atti della Accademia Nazionale dei Lincei, Serie 8, 45, 399-414.
  3. 2001(2001) Macdonaldite. Handbook of Mineralogy. Mineralogical Society of America
