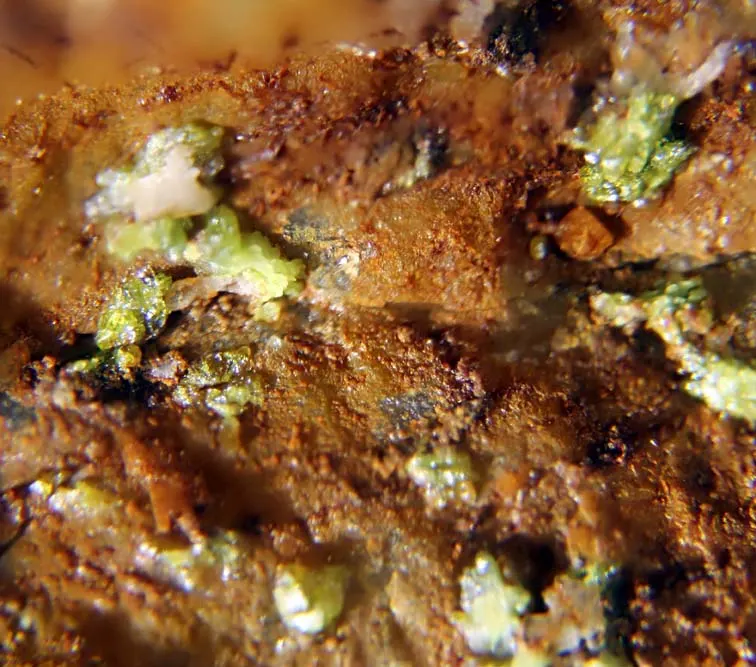

Mackayite

Fe3+Te4+2O5(OH)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Mky
Discovered
1944
Also known as
  • Mackayiet

Where it forms, where it's found

Geological setting

Zone of oxidation in Au-Te deposits.

Zone of oxidation in Au-Te deposits.

Type locality
Mohawk Mine
  1. Goldfield
  2. Goldfield Mining District
  3. Esmeralda County
  4. Nevada
  5. USA

37.7169°, -117.2236°

15recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Pale bottle-green · olive green · brownish green · greenish black · greenish yellow to yellowish green in transmitted light.
Streak
Pale green
Tenacity
brittle
Fracture
Sub-Conchoidal
Density
4.86 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
2.19 – 2.21
Surface relief
Very high
Principal indices
nω 2.19 · nε 2.21
Pleochroism
Visible

Dichroic: O = Green E = Yellowish green

Michel-Lévy diagramhighlighted lineδ = 0.0200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]200 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation200 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#177
Cell parameters
a = 11.704 Å · c = 14.895 Å
Z
16
Morphology

Short prismatic [001] to pyramidal (112); pseudocubic, pseudododecahedral.

Type-locality form

Occurs in small, well developed crystals in vugs and seams.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
52TeTelluriumTellurium2127.600255.200
62.54%
8OOxygenOxygen615.99995.994
23.52%
26FeIronIron155.84555.845
13.69%
1HHydrogenHydrogen11.0081.008
0.25%
Total408.047100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Mackayiet

In other languages

German
Mackayit
Italian
Mackayite

Classification

Strunz
10th ed.

4.JL.10

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JLTellurites with additional anions, without H2OGroup
  • 4.JL.10MackayiteSpecies
Dana
8th ed.

34.06.01.01

  • 34Selenites, Tellurites and SulfitesClass
  • 34.06Anhydrous Selenites, Tellurites and Sulfites containing Hydroxyl or HalogenType
  • 34.06.01— unnamed intermediate level —Group
  • 34.06.01.01MackayiteSpecies
CIM

28.3.23

  • 28Selenites, Selenates, Tellurites, and TelluratesClass
  • 28.3TelluritesGroup
  • 28.3.23MackayiteSpecies

Literature, links & citation

Citations
  1. Universidad Nacional Autónoma de México, Instituto de Geología Boletin: 82, part 2: 25-35.
  2. 1944Frondel, Clifford, Pough, Fred H. (1944) Two new tellurites of iron: mackayite and blakeite. With new data on emmonsite and "durdenite.". American Mineralogist, 29 (5-6) 211-225
  3. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  4. 1965Gaines, RV (1965) Nuevos Datos Sobre Mackayita. Boletín de la Sociedad Geológica Mexicana, 28 (2). 75-82 doi:10.18268/bsgm1965v28n2a2DOI: 10.18268/bsgm1965v28n2a2
  5. 1969Pertlik, F. (1969) Hydrothermalsynthese, Formel und Struktur von Mackayit, Fe(OH)[Te2O5] [Hydrothermal Synthesis, Chemical Formula and Crystal Structure of Mackayite, Fe(OH)[Te2O5]]. TMPM Tschermaks Mineralogische und Petrographische Mitteilungen, 13 (3) 219-232 doi:10.1007/bf01081561DOI: 10.1007/bf01081561
